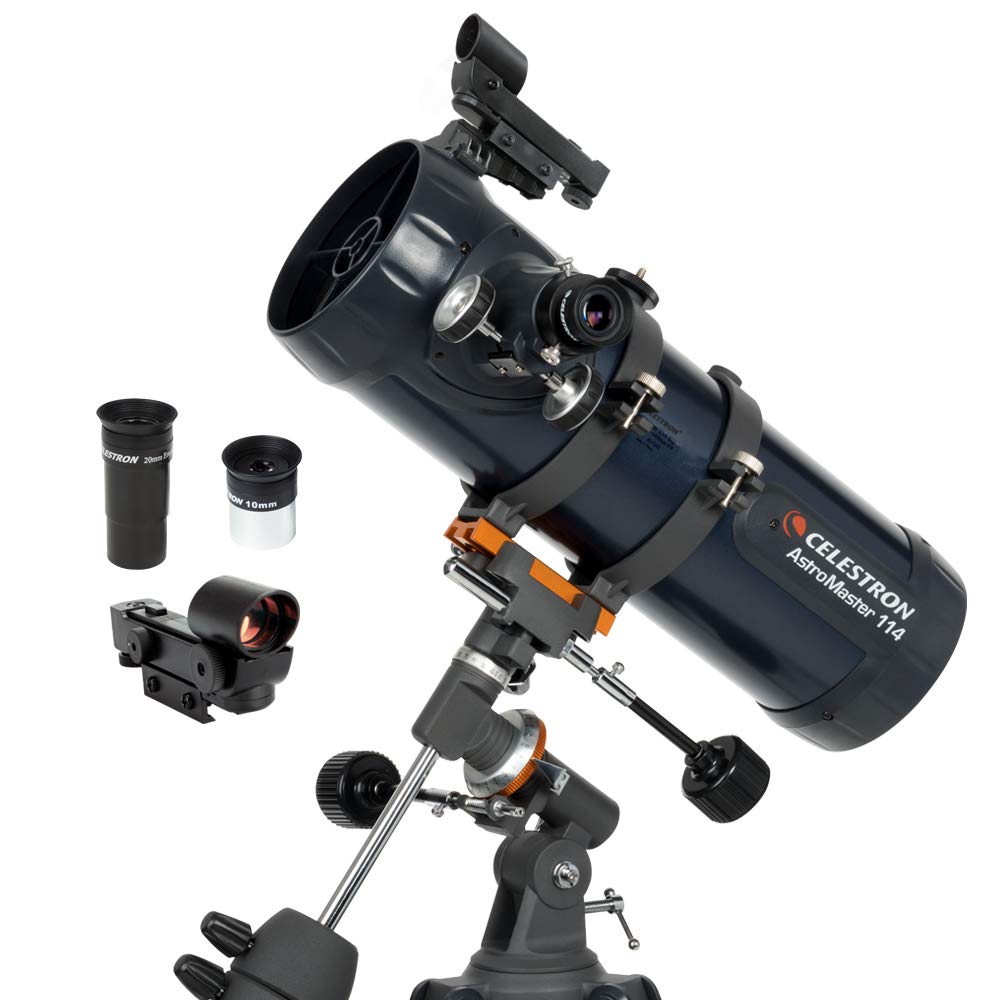

Celestron Astromaster 114EQ: The 114EQ provides bright, clear images of the Moon, planets, star clusters, and more for great nighttime viewing.
Celestron Astromaster 114 Specifications
Optical Tube Info:
- Optical Design: Newtonian Reflector
- Aperture: 114mm (4.48″)
- Focal Length: 1000mm (239.37″)
- Focal Ratio: f/8.77

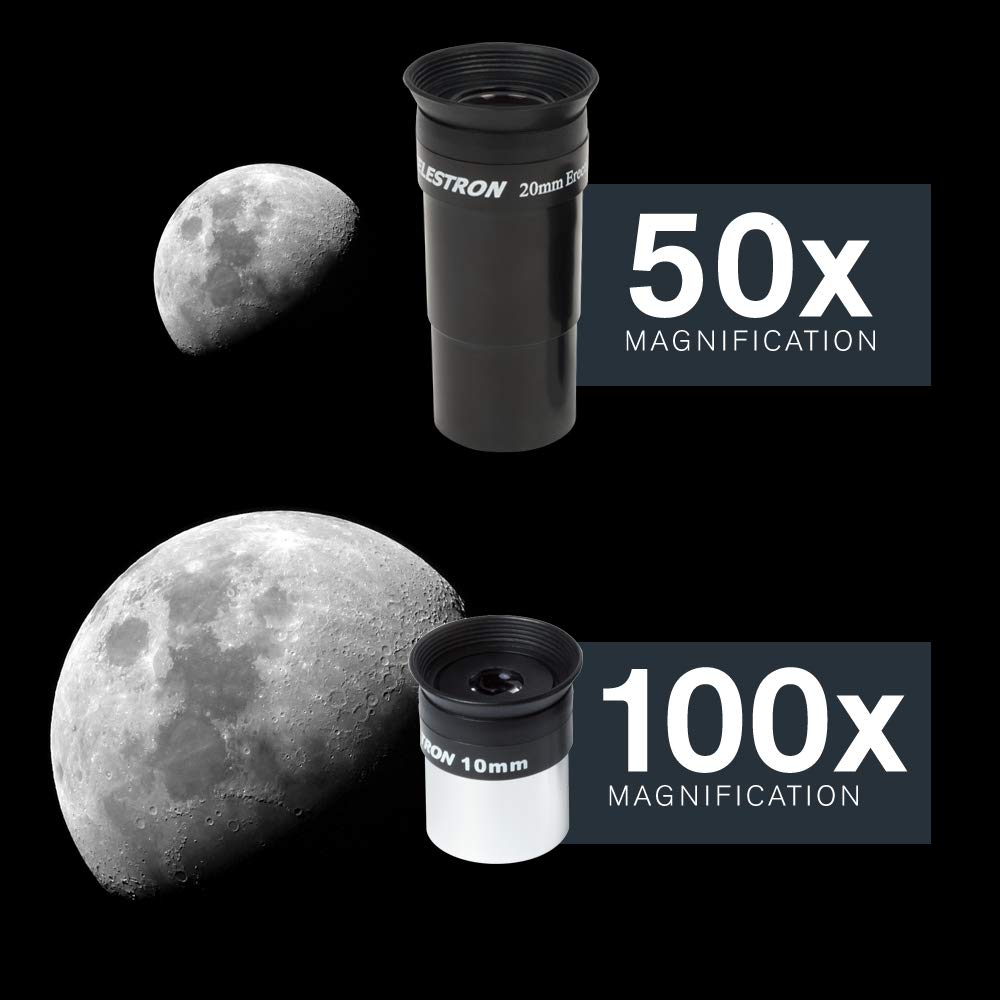

- Focal Length of Eyepiece 1: 20mm (.78″) with built-in erect image corrector
- Magnification of Eyepiece 1: 50x
- Focal Length of Eyepiece 2: 10mm (.4″) standard
- Magnification of Eyepiece 2: 100x
- Barlow Lens: Not Included
- Finderscope: Built-on StarPointer™ red dot finderscope
- Star Diagonal: None
- Optical Tube: Aluminum
- Highest Useful Magnification: 269x
- Lowest Useful Magnification:16x
- Limiting Stellar Magnitude:12.8
- Resolution (Rayleigh): 1.22 arc seconds
- Resolution (Dawes): 1.02 arc seconds
- Light Gathering Power (Compared to human eye): 265x
- Secondary Mirror Obstruction: 44mm (1.73″)
- Secondary Mirror Obstruction by Diameter: 38%
- Secondary Mirror Obstruction by Area: 14%
- Dovetail: CG-2 Dovetail bar
- Mount Type: CG-2 Equatorial
- Height adjustment range (includes mount and tripod): 812.8mm – 1295.4mm (32″ – 51″)

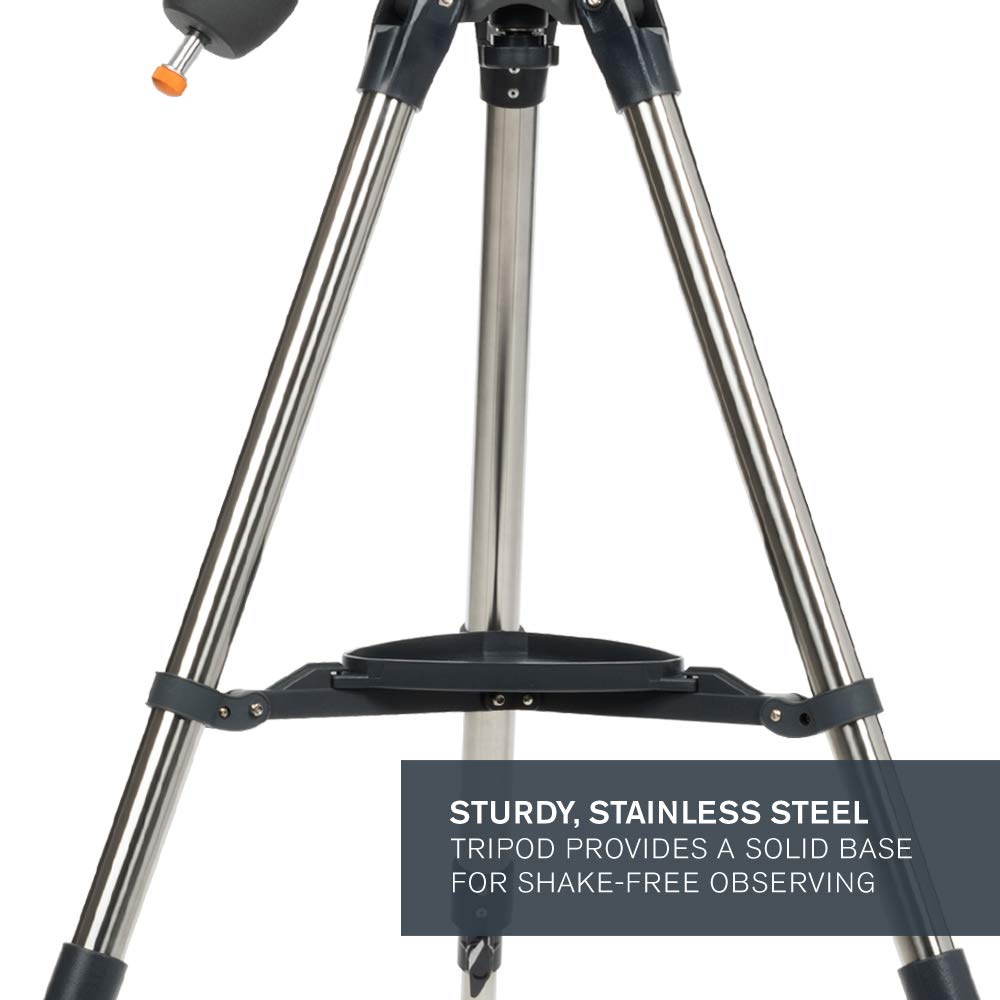

- Tripod Leg Diameter: 31.75mm (1.25″) steel
- Accessory Tray: Yes
- Tripod Weight: 7.6 lbs (3.44 kg)
- Slew Speeds: Manual
- Dovetail Compatibility: CG-2 saddle plate
- Software: Celestron Starry Night Basic Edition Software | SkyPortal App
In the Box:
Optical tube | Tripod and mount (preassembled) | 20mm eyepiece with built-in erect image corrector | Standard 10mm eyepiece | Red-dot finderscope | Manual
Solar Warning: Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result. Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
