Description

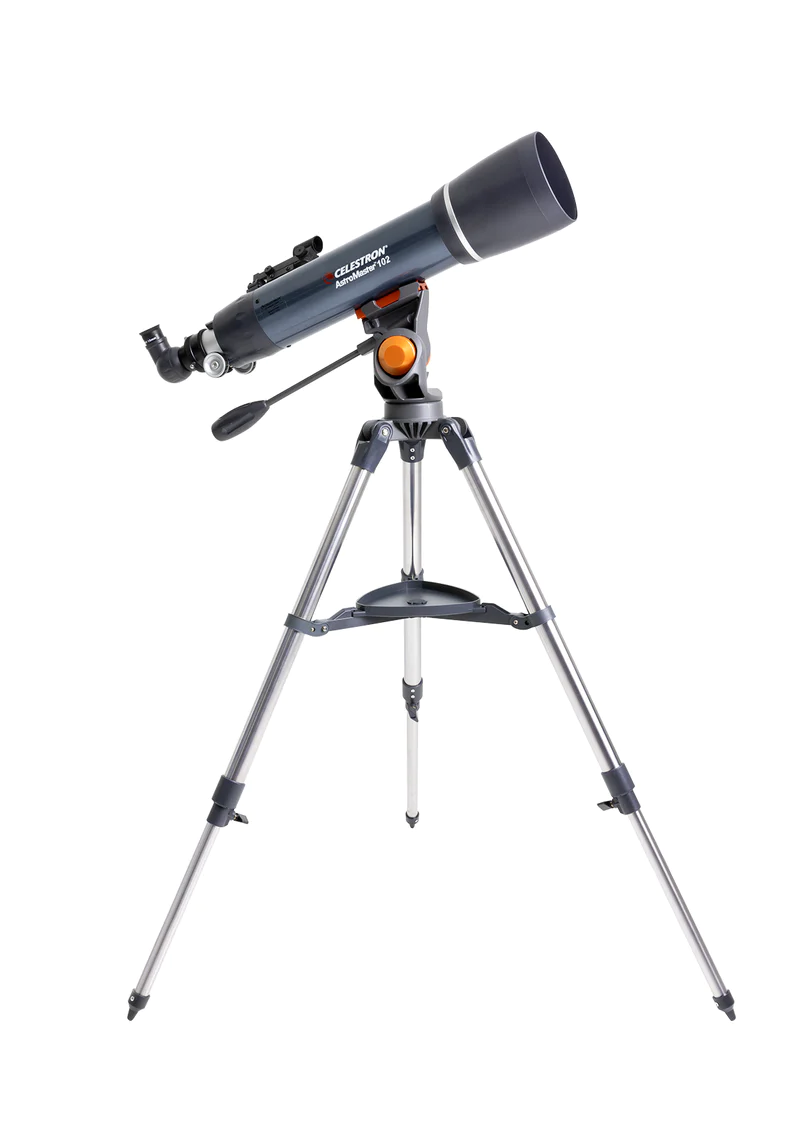

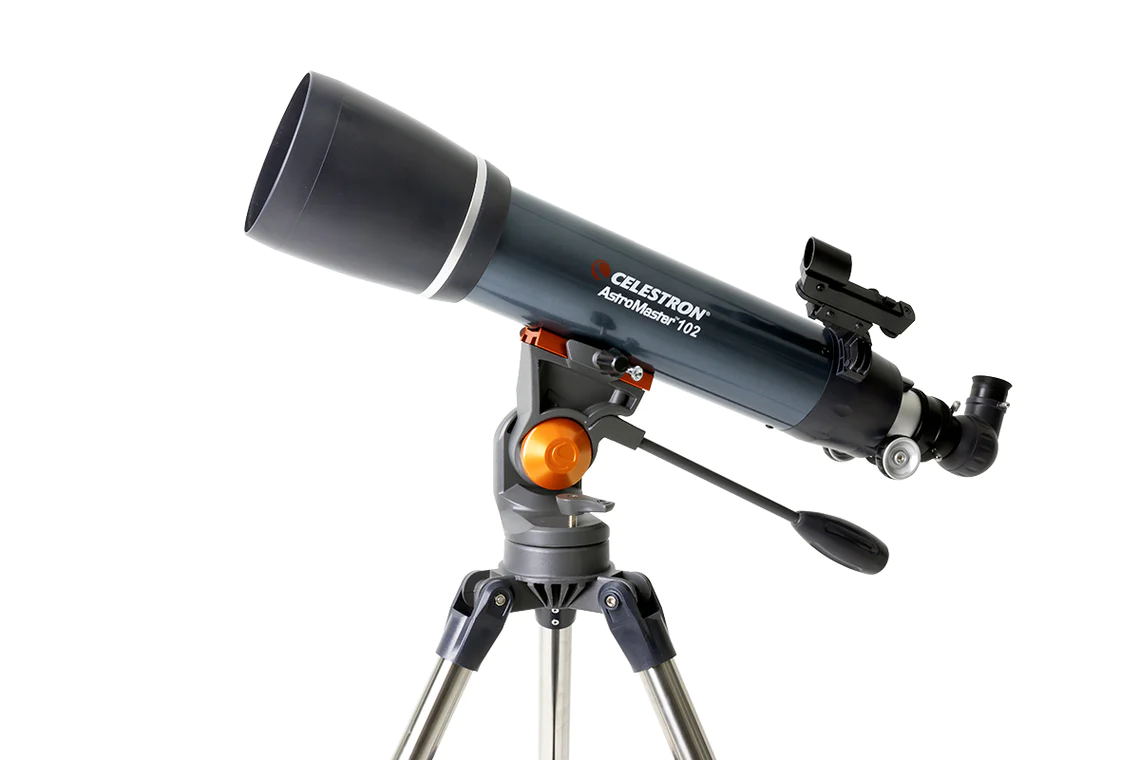

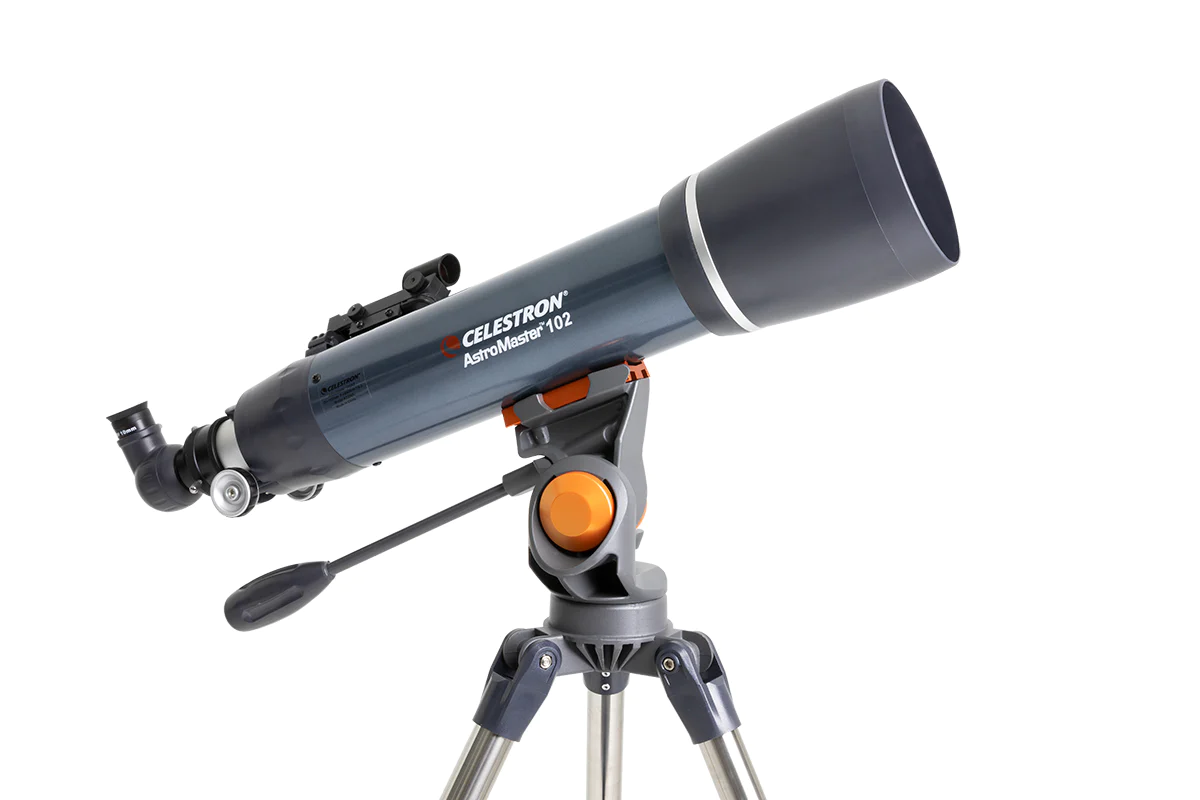

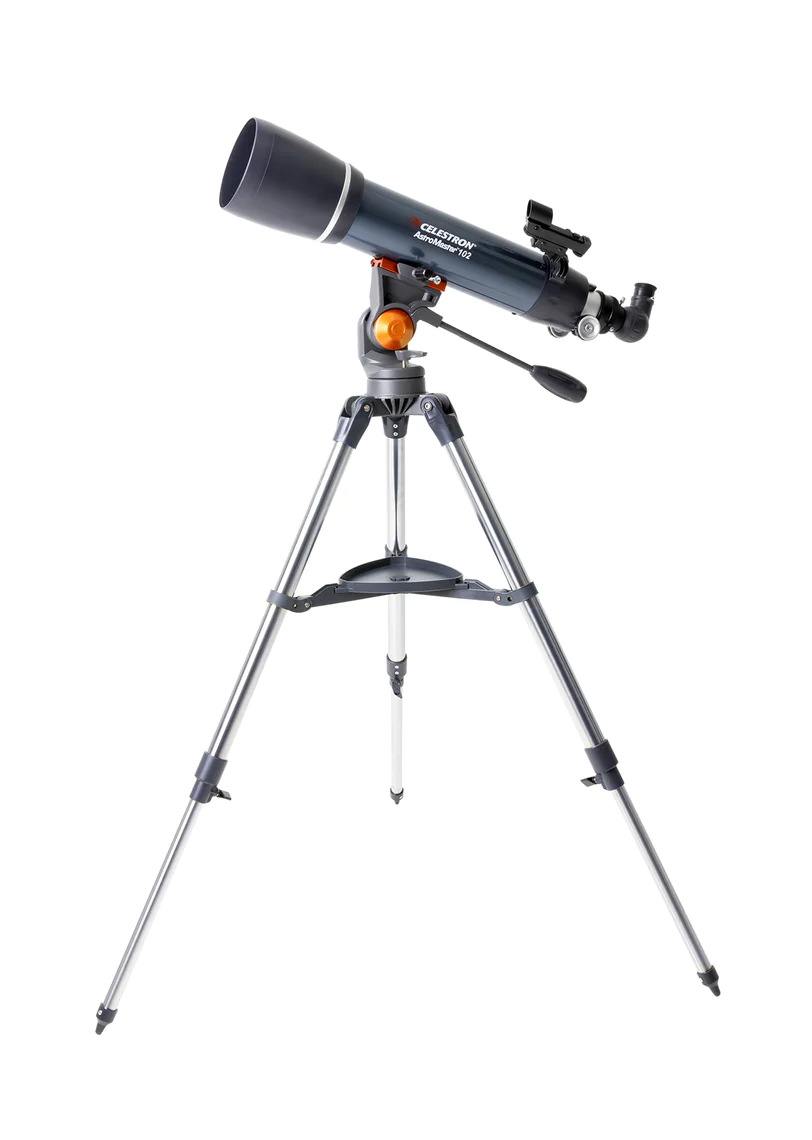

Discover our solar system with the Celestron 102AZ! You’ll be ready to observe in minutes thanks to the quick and easy no-tool setup. The 102AZ provides bright, clear images of the Moon, planets, star clusters, and more for great nighttime viewing. Plus, this dual-purpose telescope with erect image optics can also be used during the day. You’ll enjoy viewing lakes, mountain ranges and wildlife by day, then stargazing at night.
Manual Alt-Azimuth telescope

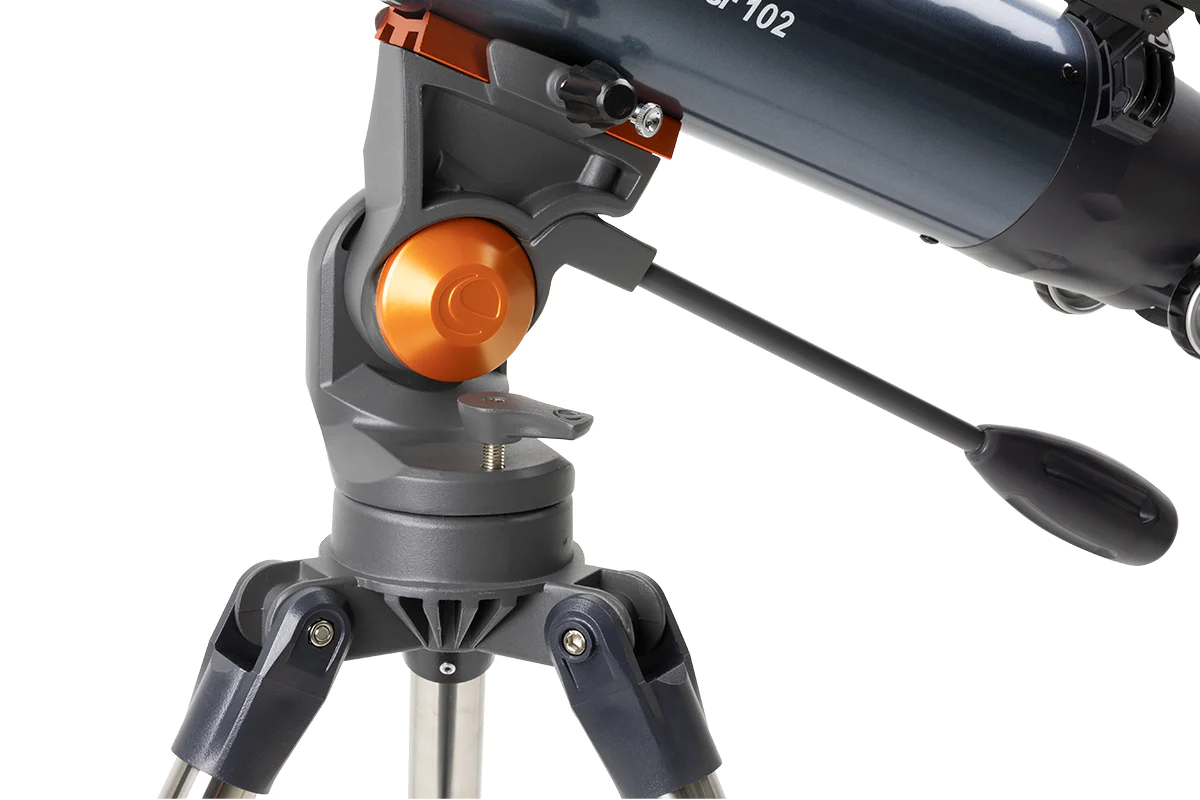

Navigate the sky with a pan handle Alt-Az control with clutch for smooth and accurate pointing. Move the clutch in an up/down, left/right fashion to track your object in the eyepiece.
Starry Night Software
Download Celestron’s Starry Night Software and learn about the night sky, celestial objects, and how to plan your next observing session. Celestron Starry Night Software is the premier astronomy software package on the market, providing resources and knowledge to view our solar system and beyond.
Celestron Astromaster 102AZ Telescope Specifications
| Optical Tube Info: | |
|---|---|
| Optical Design: | Refractor |
| Aperture: | 102mm (4″) |
| Focal Length: | 660mm (26″) |
| Focal Ratio: | f/6.5 |

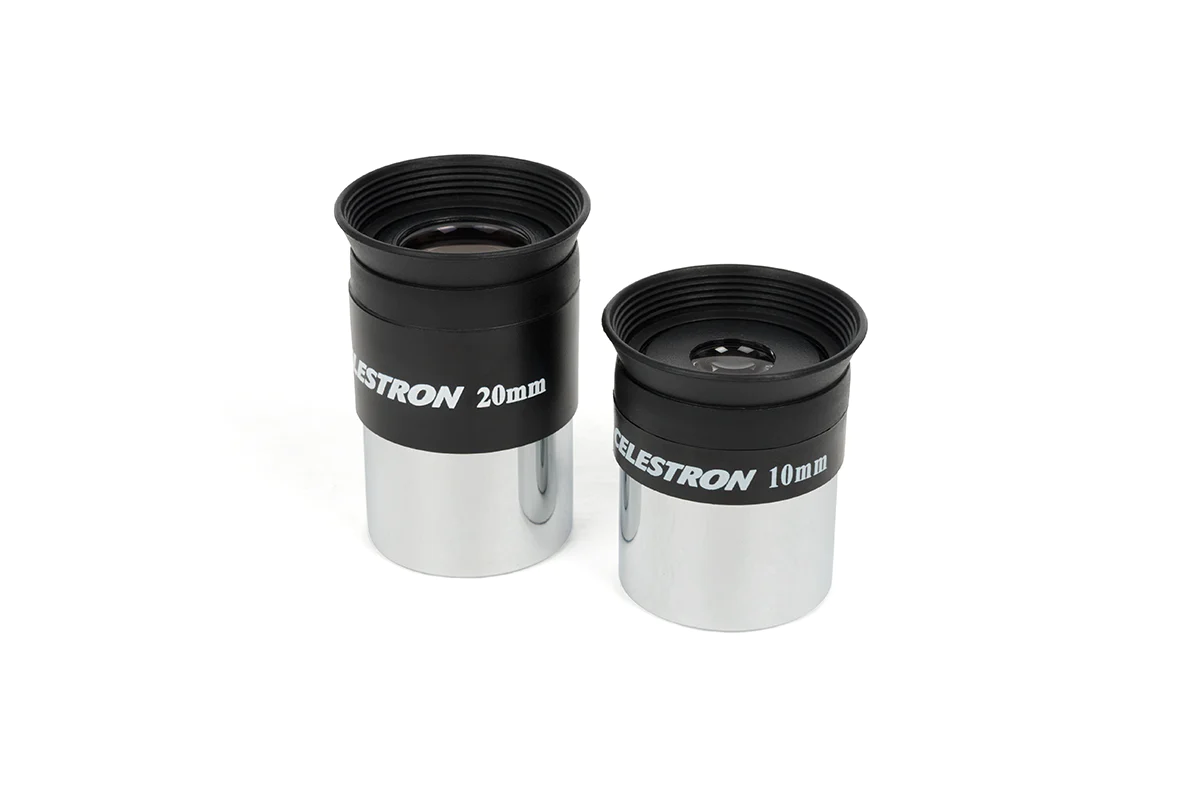

| Focal Length of Eyepiece 1: | 20mm (.78″) |
| Magnification of Eyepiece 1: | 33x |
| Focal Length of Eyepiece 2: | 10mm (.4″) |
| Magnification of Eyepiece 2: | 66x |
| Barlow Lens: | Not Included |
| Finderscope: | Built-in Red Dot Finder |
| Star Diagonal: | Erect Image, 90° (1.25″) |
| Optical Tube: | Aluminum |
| Highest Useful Magnification: | 241x |
| Lowest Useful Magnification: | 15x |
| Limiting Stellar Magnitude: | 12.5 |
| Resolution (Rayleigh): | 1.37 arc seconds |
| Resolution (Dawes): | 1.14 arc seconds |
| Light Gathering Power (Compared to human eye): | 212x |
| Optical Coatings: | Fully Coated |
| Optical Tube Length: | 380mm (15″) |
| Optical Tube Diameter: | 100mm (3.93″) |
| Optical Tube Weight: | 5 lbs (2.25 kg) |
| Dovetail: | CG-5 Dovetail bar |
| Mount Info: | |
| Mount Type: | Manual Alt Azimuth |
| Height adjustment range (includes mount and tripod): | 812.8mm – 1295.4mm (32″ – 51″) |
| Tripod Leg Diameter: | 31.75mm (1.25″) steel |
| Accessory Tray: | Yes |
| Slew Speeds: | Manual |
| Tripod Weight: | 7.9 lbs (3.6 kg) includes weight of mount |
| Dovetail Compatibility: | CG-5 saddle plate |
| Software: | Celestron Starry Night Basic Edition Software and SkyPortal App |
| Total Telescope Kit Weight: | 12.9 lbs (5.85 kg) |
Solar Warning
- Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result.
- Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
- Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present
Supporting Documents
AstroMaster 102AZ Telescope Manual
Supporting Videos
Recommended Accessories
- 1.25″ 2X Achromatic Barlow – To get double magnification while observing your favorite objects. Mostly important for Lunar and Planetary observations & Photography.
- Additional Eyepieces – Eyepieces serve as our arsenal, offering different magnifications for celestial objects. Higher magnification is ideal for detailed planetary viewing, while lower magnification and wide-angle eyepieces are suitable for capturing the vastness of deep sky objects. With a diverse collection of eyepieces, we can customize our observations for an immersive stargazing experience.
- Eyepiece Filters – Colored filters can be an invaluable aid in lunar and planetary observing. They reduce glare and light scattering, increase contrast through selective filtration, increase definition and resolution, reduce irradiation and lessen eye fatigue.
- Solar filter – Customized Solar Filter for optical equipment for observation and photography of sun during eclipses, transits or general Sunspots observation on solar disk.
- T-Ring (Canon) – To capture photos with your Canon EOS DSLR using Telescope tube as high focal length lens for camera.
- T-Ring (Nikon) – To capture photos with your NIKON DSLR using Telescope tube as high focal length lens for camera.
- T-Ring (Sony) – To capture photos with your Sony DSLR using Telescope tube as high focal length lens for camera.
- 1.25″ T-Mount/Adapter – To attach any DSLR directly in the eyepiece barrel when using in combination with DSLR T-Ring.
- Customized Telescope Padded bag – Designed to keep your Telescope safe from sudden damages to optics and body, safe of dust and dirt, easy carrying solution.
- Smartphone Adaptor – With this universal smartphone telescope adapter, you can connect your phone to any telescopes or binoculars for digiscoping.
