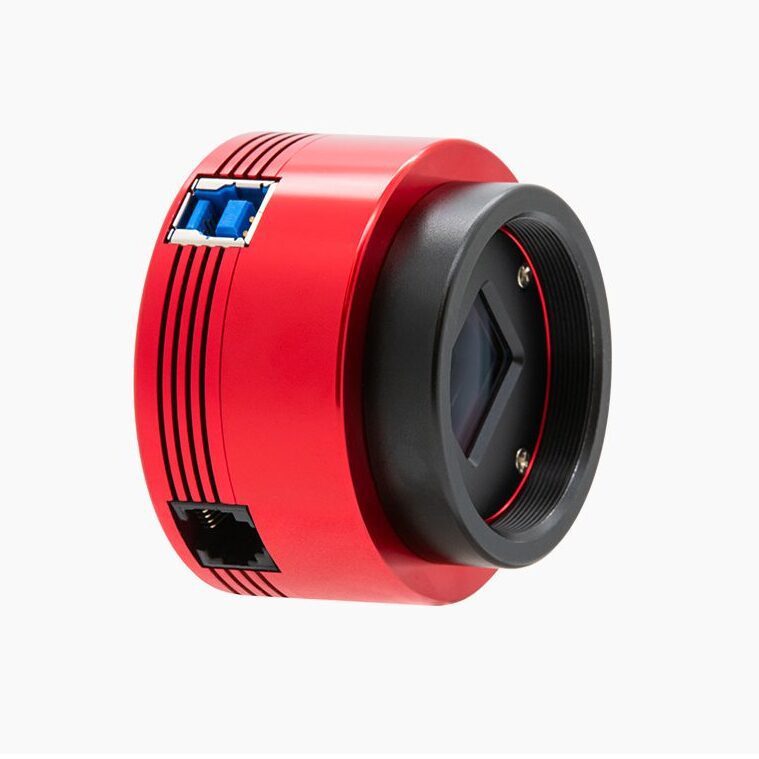

Camera technical details

  • Sensor: 1/1.2″ CMOS Sony-IMX585AAQJ1-C
  • Bayer Pattern:R Gr Gb B
  • QE peak:91%
  • Back focus length: 6.5mm/17.5mm
  • Max fps: 46.9fps
  • Full well: 40Ke
  • Shutter: Rolling shutter
  • Resolution: 8.29Mega Pixel,3840*2160
  • Pixel Size: 2.9µm
  • Exposure Range: 32μs~2000s
  • Interface: USB 3.0 /USB 2.0 Type-B
  • Protect window: φ32-2 AR
  • ADC: 12bit
  • Dimension: 11.136mm*6.264mm
  • Weight: 126g
  • Working Temperature: -5℃~50℃
  • Storage Temperature: -10℃~60℃
  • Working Relative Humidity: 0-80%
  • Supported OS: WIN7/8/10 32&64, Linux, Mac

ZWO website is always updated with the most recent camera drivers as well as software for DSO and planetary imaging. Please make sure the most recent driver and software has been installed before you start shooting:

It is also recommended to read the Manuals first before shooting.

Warranty and Return Policy

ZWO will provide a 2-year free warranty service (Warranty Period) for ZWO products purchased by Users from ZWO (“Products”) in accordance with this Policy, commencing on the day following receipt of the Products by Users. For ASIAIR Plus users, commencing on the day of device activation.
