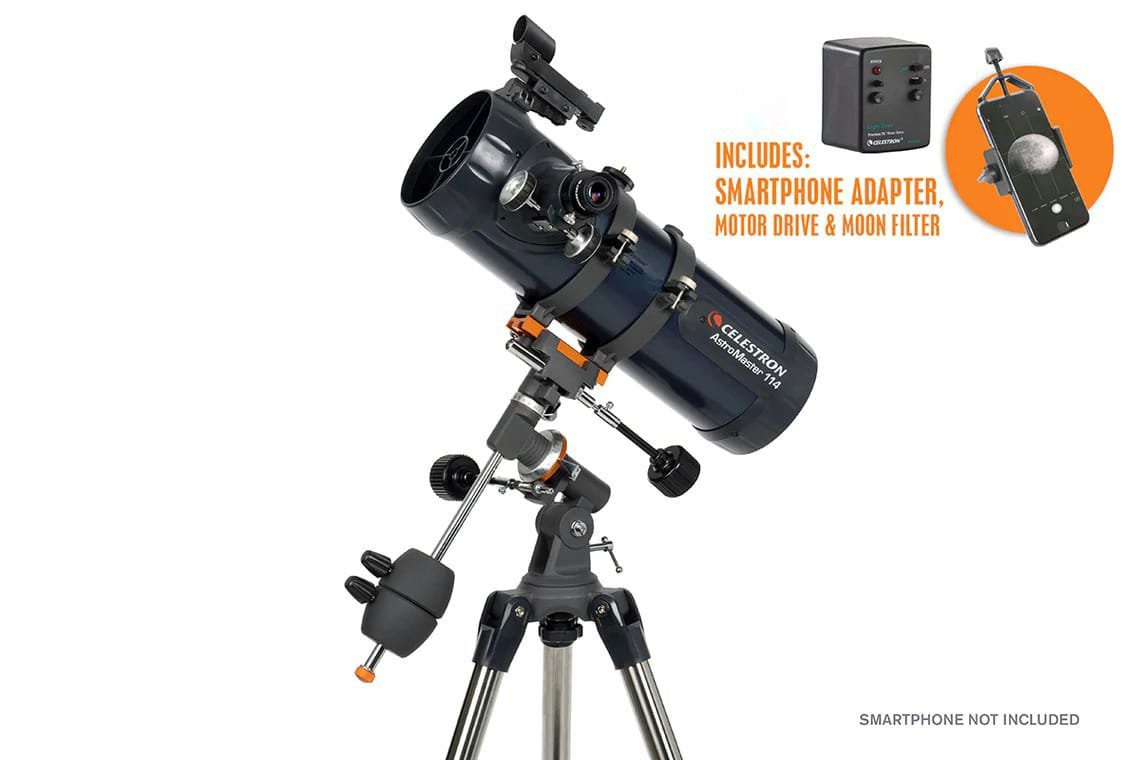

Discover our Solar System with the Celestron AstroMaster 114EQ! You’ll be ready to observe in minutes thanks to the quick and easy no-tool setup. The 114EQ provides bright, clear images of the Moon, planets, star clusters, and more for great nighttime viewing.
Manual German Equatorial telescope
The AstroMaster mount comes with two slow motion control knobs that allow you to make fine pointing adjustments to the telescope in both Right Ascension and Declination axes, also referred to as RA and DEC.
Accessories include a 20mm and 10mm eyepiece, a finderscope, a moon filter, a smartphone adapter, and a motor drive. The two eyepieces offer different magnifications for low and high powered views.
Motor Drive – Turn your manual German equatorial mount into a tracking mount by adding the included RA motor drive to your telescope. This easy-to-install RA motor drive compensates for the Earth’s rotation, so the telescope tracks a star’s movement through the night sky from east to west. When the telescope mount is properly polar aligned and the RA drive is attached and running, the user need only make occasional adjustments in declination (Dec) to keep an object in the eyepiece for long periods of time. The Celestron single-axis motor drive runs on a 9V battery, so there are no cords to get in the way. The drive can be used in either the Northern or Southern Hemisphere. To change hemispheres (reverse the motor’s direction), simply by flip the N/S switch on the face of the motor drive. It is also simple to change the speed of the motor. A “Speed Rate Regulator” knob is located just under the power indicator and can be turned in either direction to slow down or speed up the motor. Since solar system objects like the Moon and planets move through the sky at different rates than deep-sky objects do, this gives you the ability to match the motor’s speed to the particular type of object you are observing.
Smartphone Adapter – Image celestial or terrestrial objects with this smartphone adapter. With its light, rigid frame, this accessory allows you to connect any smartphone to any telescope eyepiece with an outside diameter of 34mm. The additional magnification provided by the eyepiece allows your phone to capture great images of the Moon and planets. This adapter installs easily by placing the smartphone over the telescope eyepiece and tightening the knobs to securely lock your phone in place. The adapter accommodates most phones with the case on, but some large and/or bulky phone cases (including folio style cases) may need to be removed for the phone to fit in the adapter.
Starry Night Software
Download Celestron’s Starry Night Software and learn about the night sky, celestial objects, and how to plan your next observing session. Celestron Starry Night Software is the premier astronomy software package on the market, providing resources and knowledge to view our solar system and beyond.
Optical Tube Info:
- Optical Design: Newtonian Reflector
- Aperture: 114mm (4.48″)
- Focal Length: 1000mm (239.37″)
- Focal Ratio: f/8.77

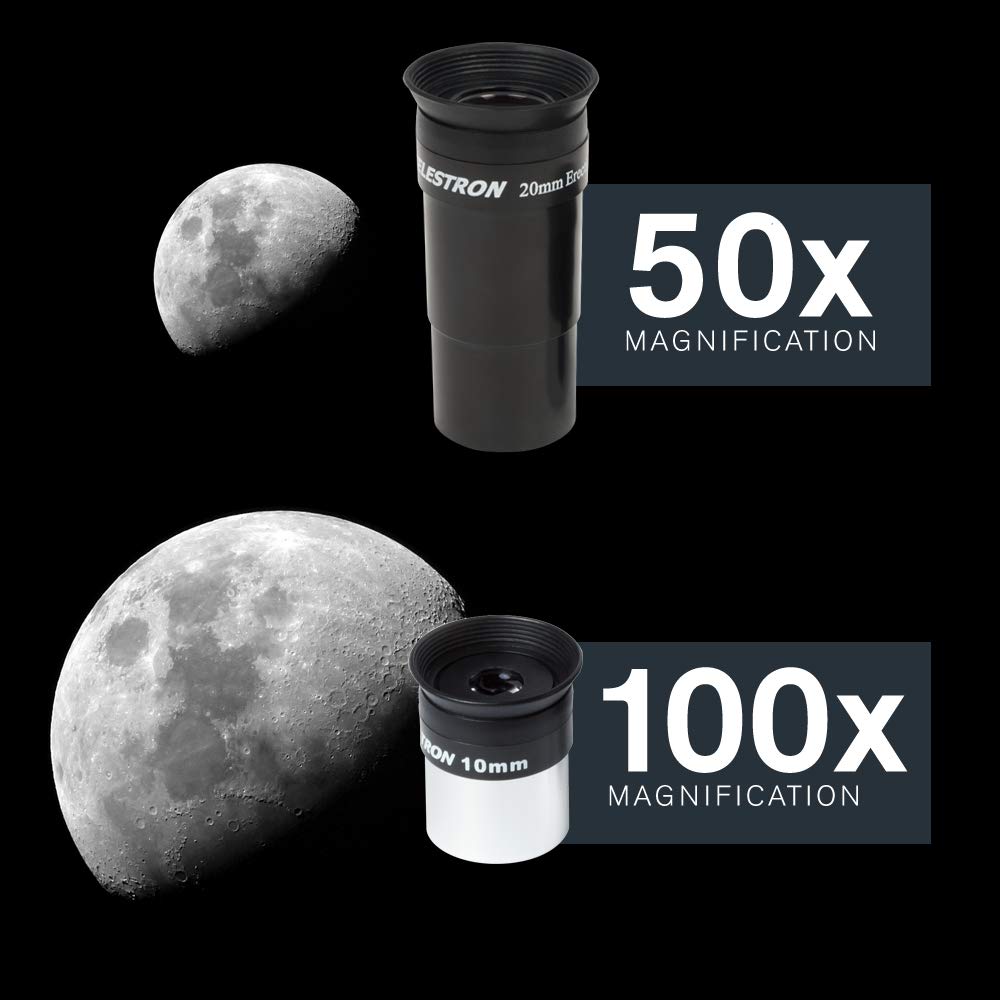

- Focal Length of Eyepiece 1: 20mm (.78″) with built-in erect image corrector
- Magnification of Eyepiece 1: 50x
- Focal Length of Eyepiece 2: 10mm (.4″) standard
- Magnification of Eyepiece 2: 100x
- Barlow Lens: Not Included
- Finderscope: Built-on StarPointer™ red dot finderscope
- Star Diagonal: None
- Optical Tube: Aluminum
- Highest Useful Magnification: 269x
- Lowest Useful Magnification:16x
- Limiting Stellar Magnitude:12.8
- Resolution (Rayleigh): 1.22 arc seconds
- Resolution (Dawes): 1.02 arc seconds
- Light Gathering Power (Compared to human eye): 265x
- Secondary Mirror Obstruction: 44mm (1.73″)
- Secondary Mirror Obstruction by Diameter: 38%
- Secondary Mirror Obstruction by Area: 14%
- Dovetail: CG-2 Dovetail bar
- Mount Type: CG-2 Equatorial

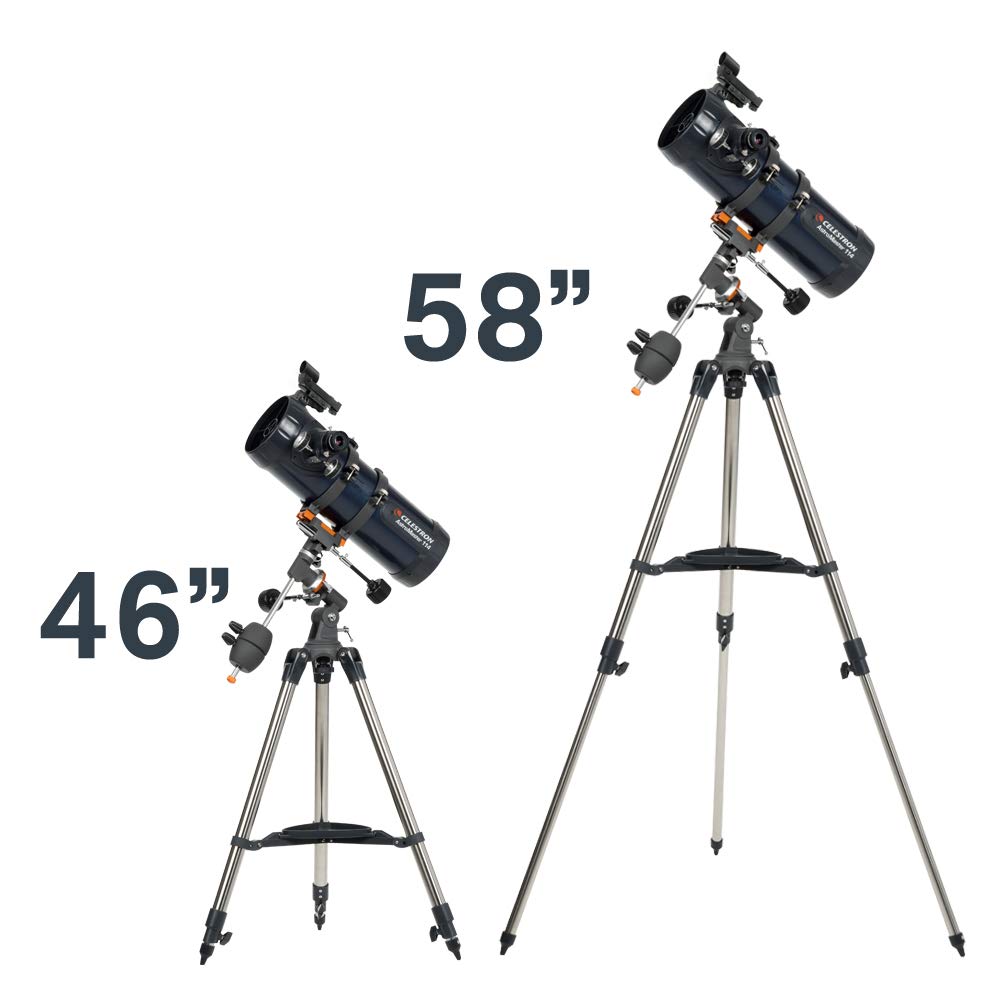

- Height adjustment range (includes mount and tripod): 812.8mm – 1295.4mm (32″ – 51″)

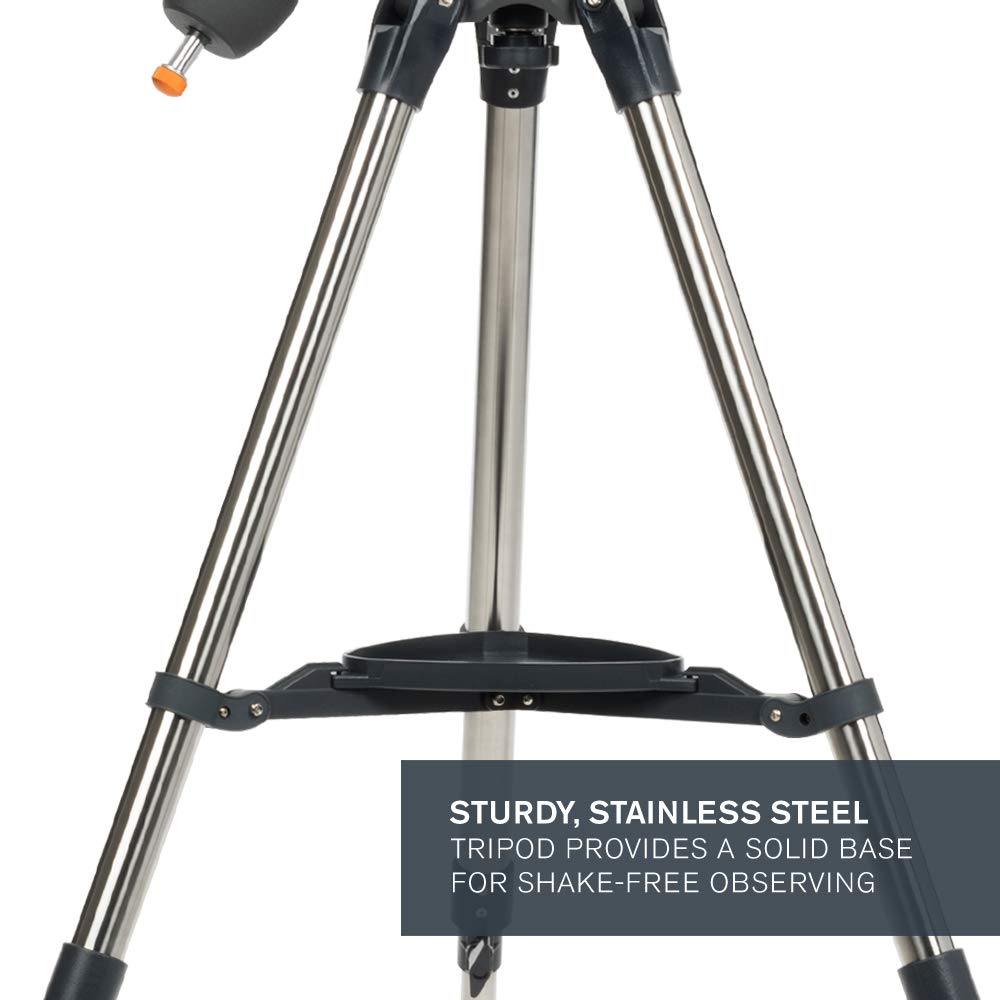

- Tripod Leg Diameter: 31.75mm (1.25″) steel
- Accessory Tray: Yes
- Tripod Weight: 7.6 lbs (3.44 kg)
- Slew Speeds: Manual
- Dovetail Compatibility: CG-2 saddle plate
- Software: Celestron Starry Night Basic Edition Software | SkyPortal App
In the Box:
Optical tube | Tripod and mount (preassembled) | 20mm eyepiece with built-in erect image corrector | Standard 10mm eyepiece | Red-dot finderscope | Motor drive |Smartphone adapter | Tripod and mount | Manual
- Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result.
- Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
- Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present
