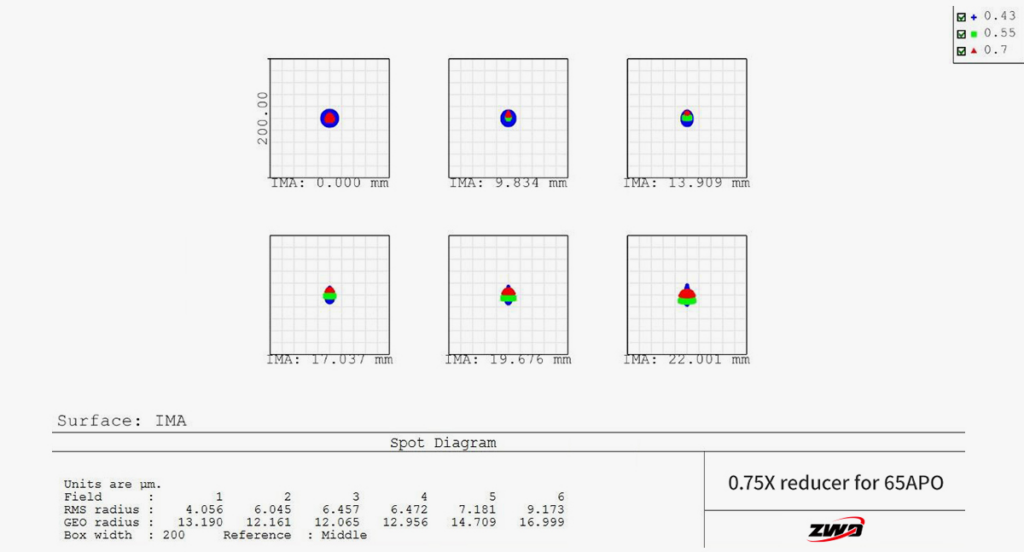

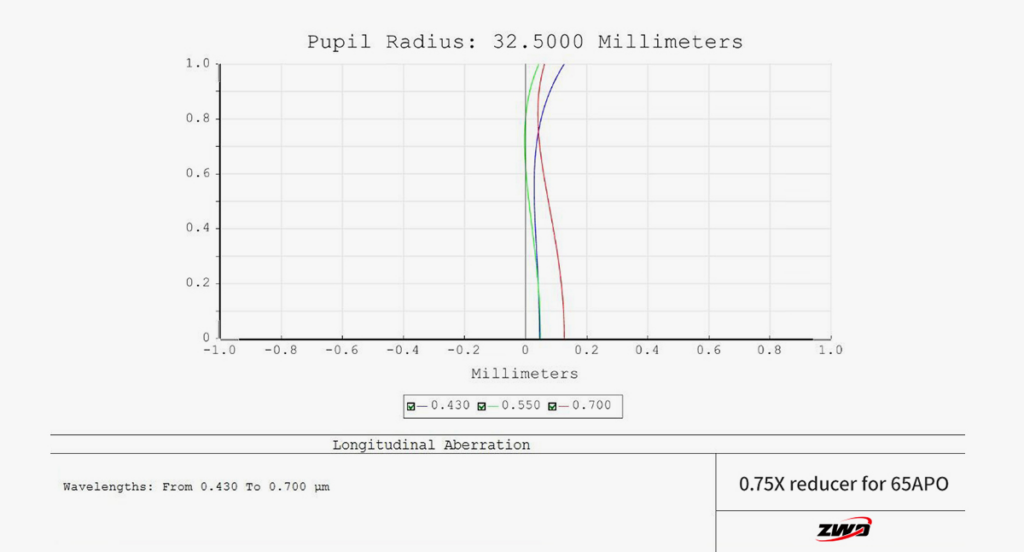

FF65APO 0.75× Full Frame Reducer

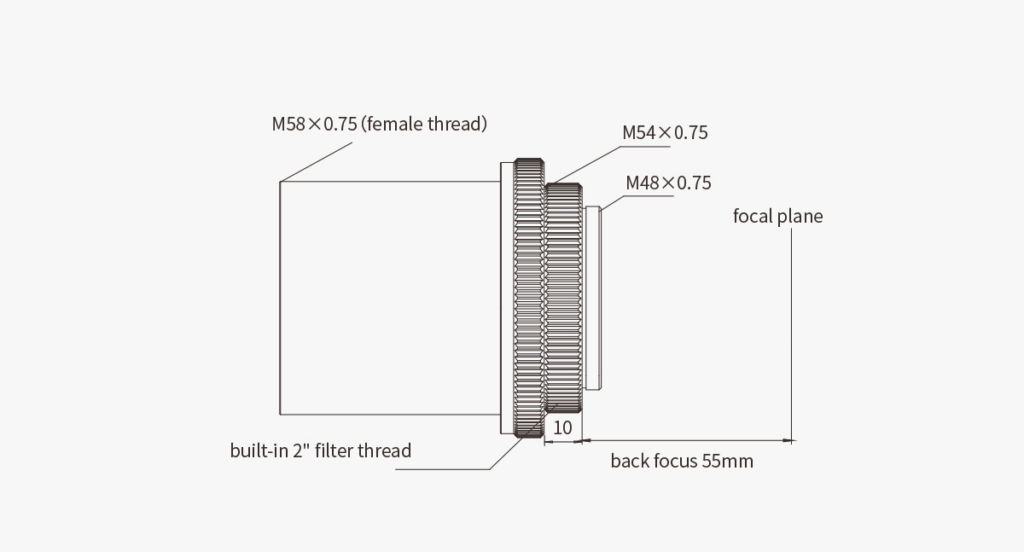

ZWO has released a brand-new FF65APO 0.75× full frame reducer with a four-element optical design. It has a reduction factor of 0.75x, which gives the FF65APO f/6.4 astrograph a shortened focal ratio of f/4.8 and a shorter focal length of 312mm. This allows for less total integration time and a wider field of view, bringing more convenience and possibilities for your wide-field deep-sky imaging. The back focus distance is the standard 55mm. It also comes with two thread adapters of M54 and M48, and a built-in M48x0.75 2” filter thread, which makes the connection work simple and convenient.

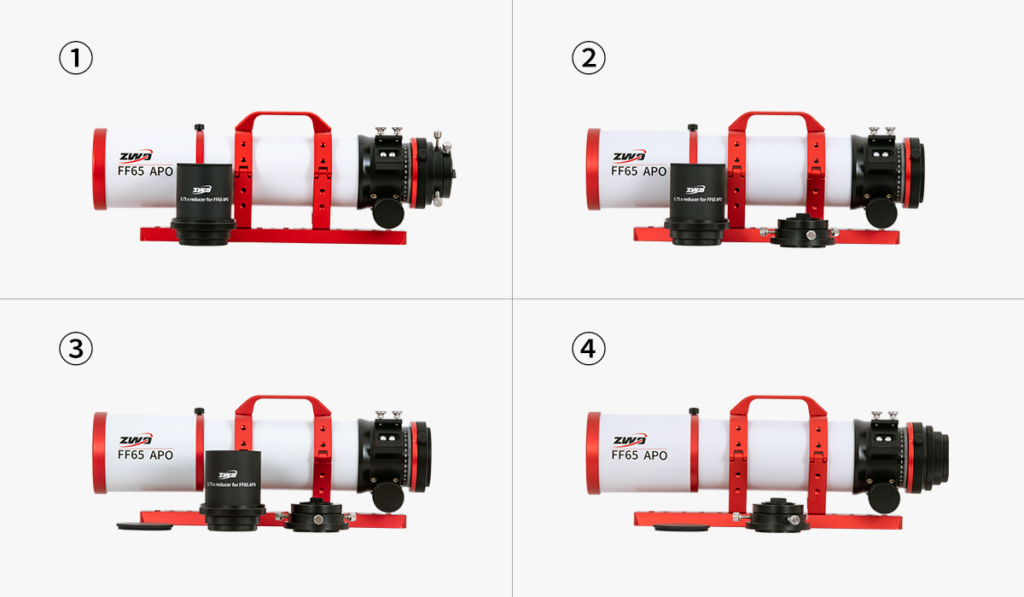

Connection steps

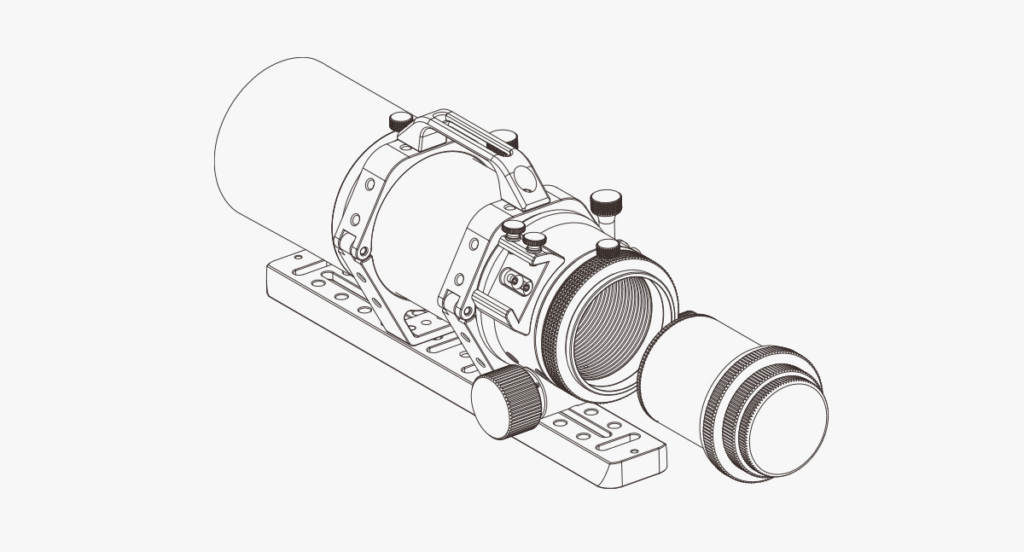

1. Prepare the FF65APO telescope tube and the focal reducer.
2. Unscrew the eyepiece holder at the end of the FF65APO telescope tube.
3. Unscrew the end cap of the 0.75X reducer.
4. Insert the reducer into the focuser and tighten.

FF80APO 0.76X Full Frame Reducer

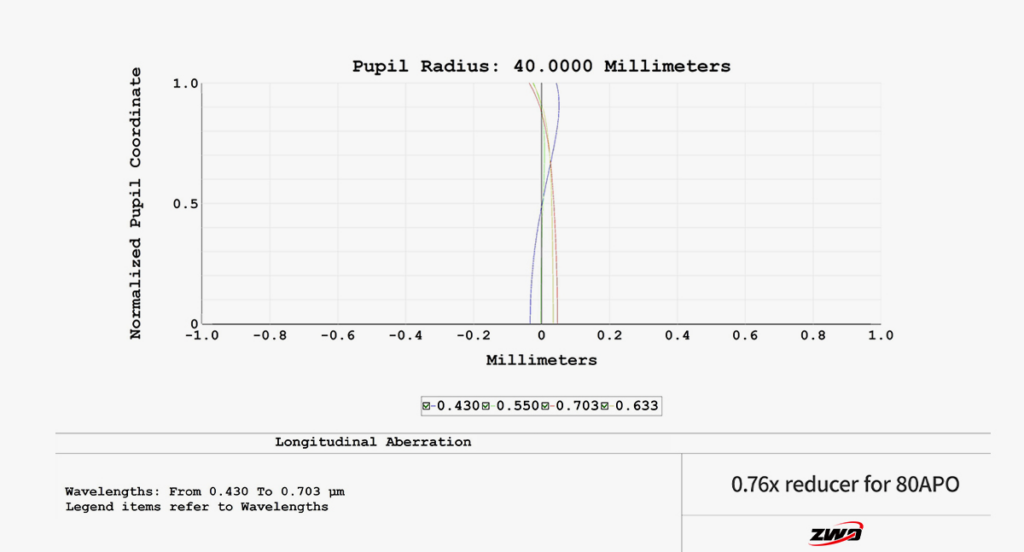

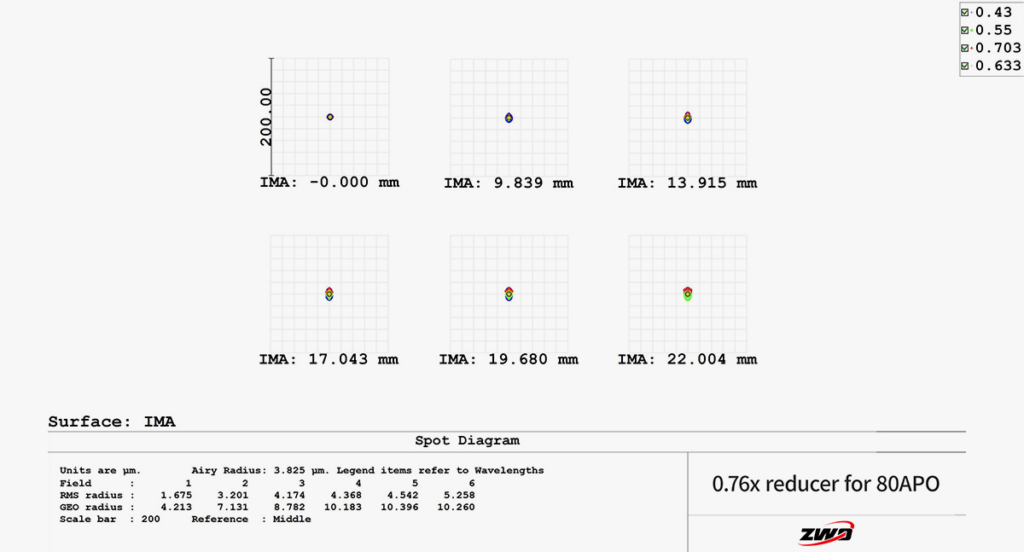

ZWO has also released a new 3-inch FF80APO 0.76X full-frame reducer with a three-element optical design, including one element made of ED glass. Its reduction factor is 0.76x, which gives the FF80APO f/7.5 astrograph a shortened focal ratio of f/5.7 and a shorter focal length of 312mm. This allows for less total integration time and a wider field of view, bringing more convenience and possibilities for your wide-field deep-sky imaging.

The reducer has a rear interface that attaches to the FF80APO telescope tube’s included four-segment camera extension tube. The back focus is the standard 55mm, and it has a built-in M48X0.75 2-inch filter thread for easy attachment.

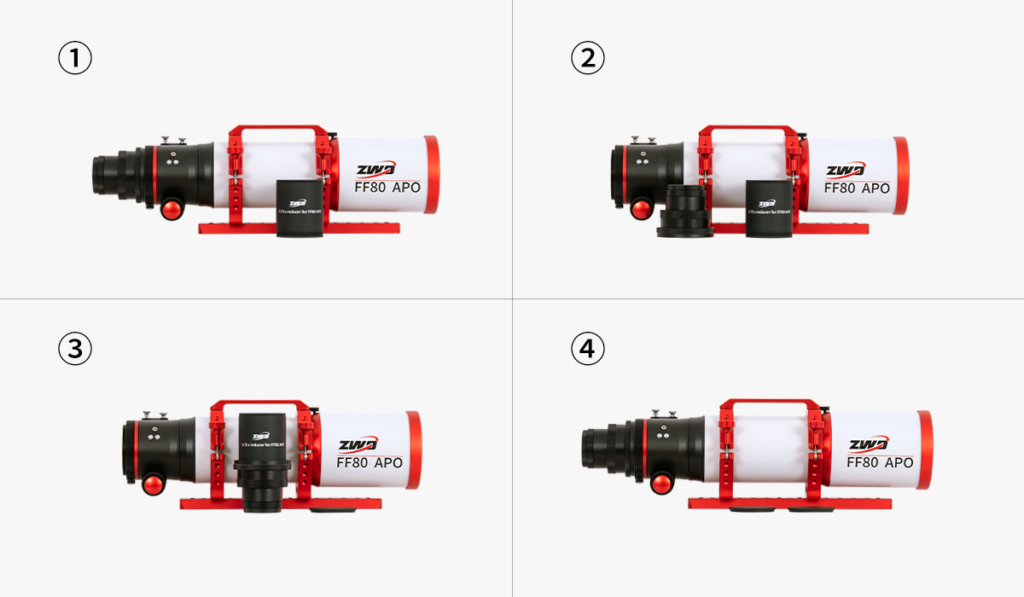

Connection steps

1. Prepare the FF80APO telescope tube and the focal reducer.
2. Unscrew the four-segment connector at the end of the FF80APO telescope tube.
3. Unscrew the end cap of the 0.76X reducer and attach it to the M68 thread of the four-segment connector.
4. Unscrew the front cap of the reducer, insert it into the focuser inner tube, and tighten it.

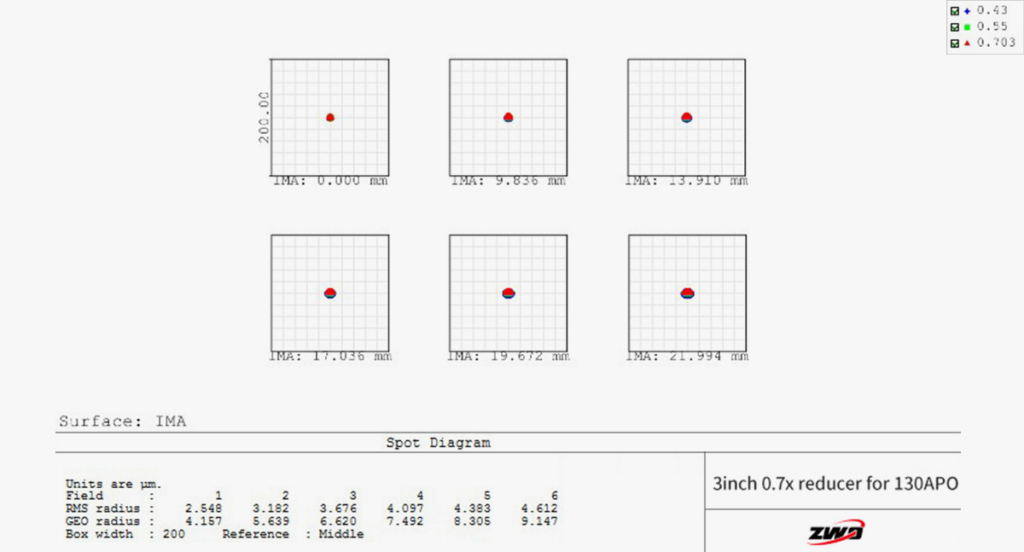

FF107APO/FF130APO 0.7× Universal Reducer

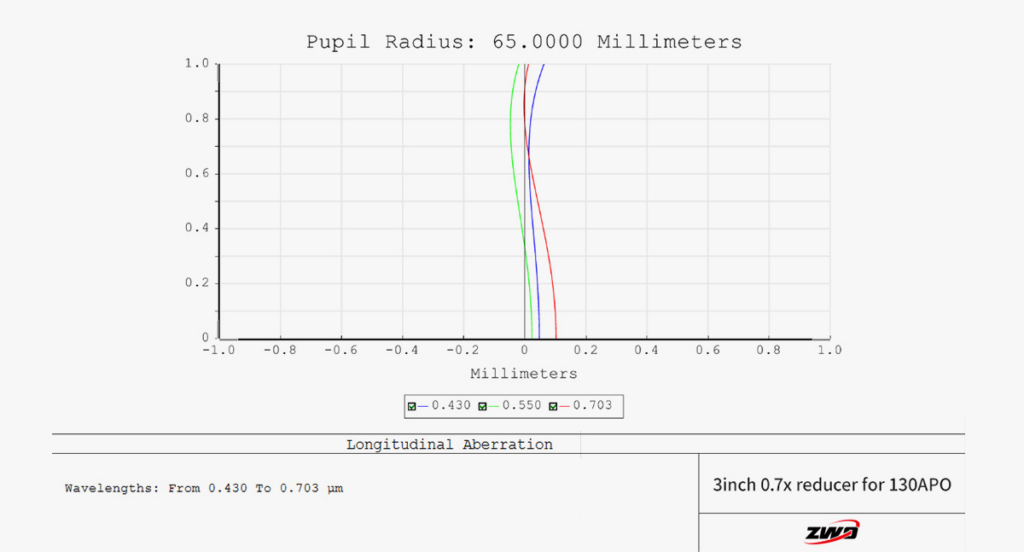

ZWO has released a new 3-inch 0.7× full frame reducer that is compatible with the FF107APO and FF130APO telescopes. It has a three-element optical design, including one element made of ED glass. Its reduction factor is 0.7, which gives the FF107APO a shortened focal ratio of f/4.9 and a shorter focal length of 524mm. This allows for less total integration time and a wider field of view, bringing more convenience and possibilities for your wide-field deep-sky imaging.

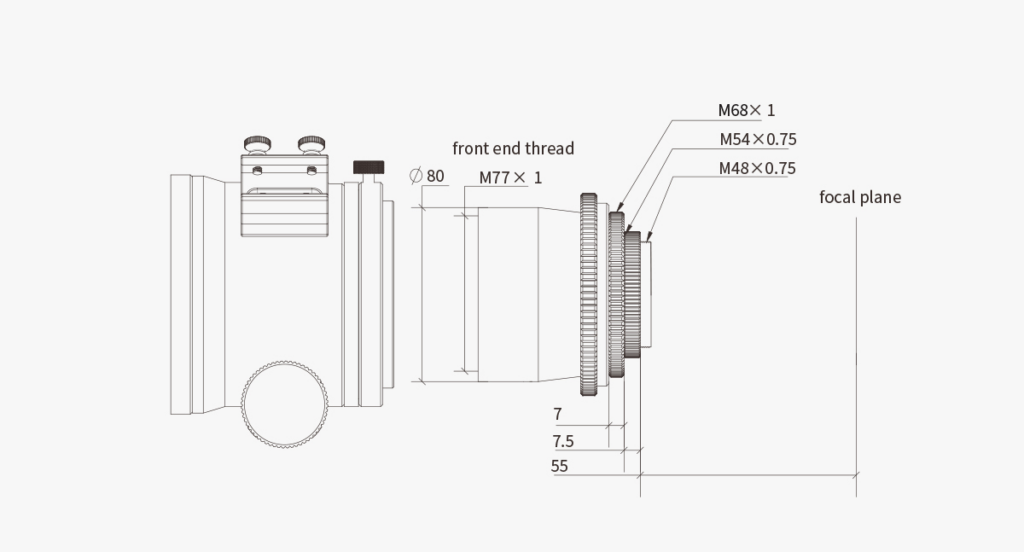

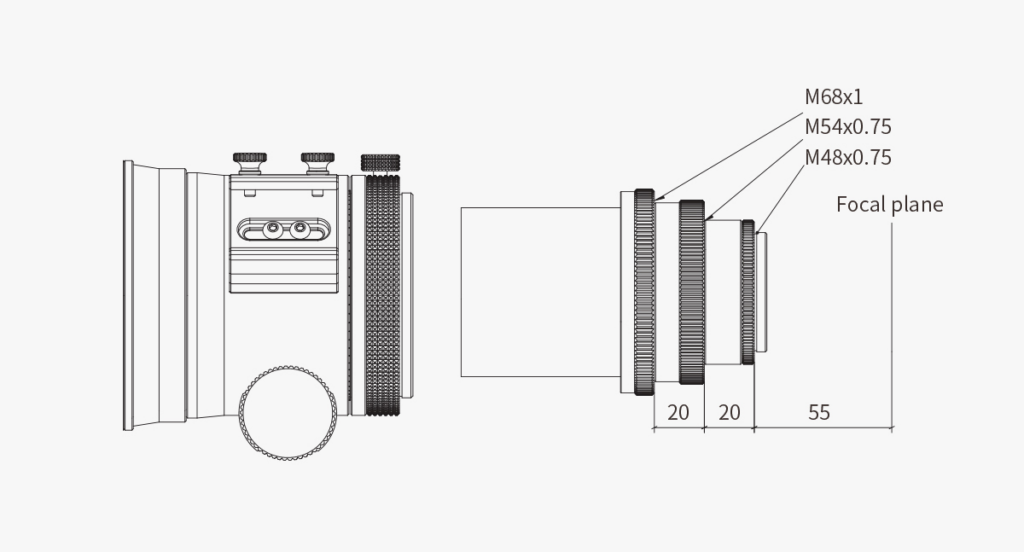

The reducer has a standard 55mm back focus and comes with M68, M54, and M48 threaded adapters for easy attachment.

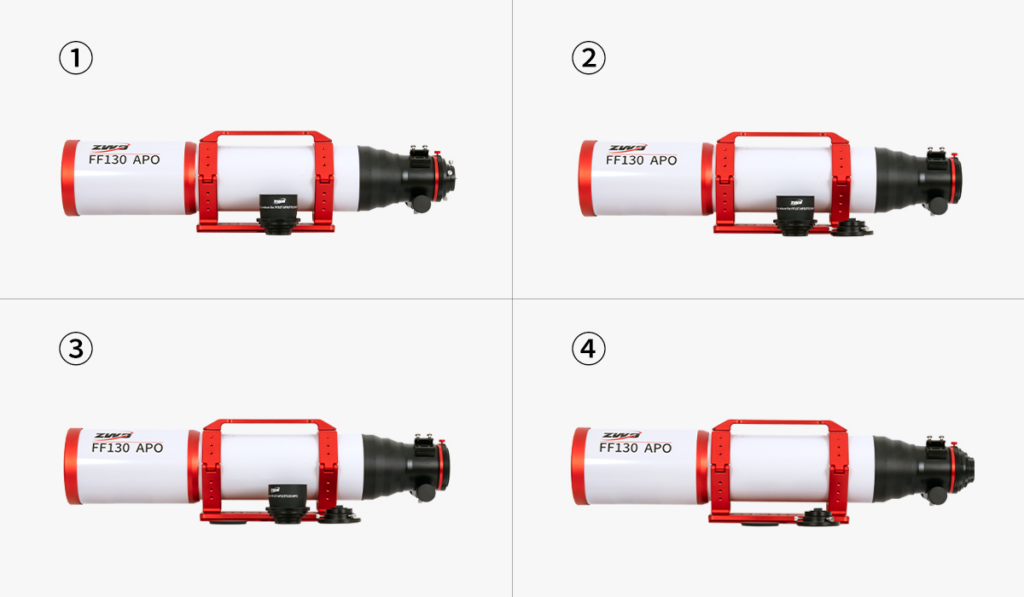

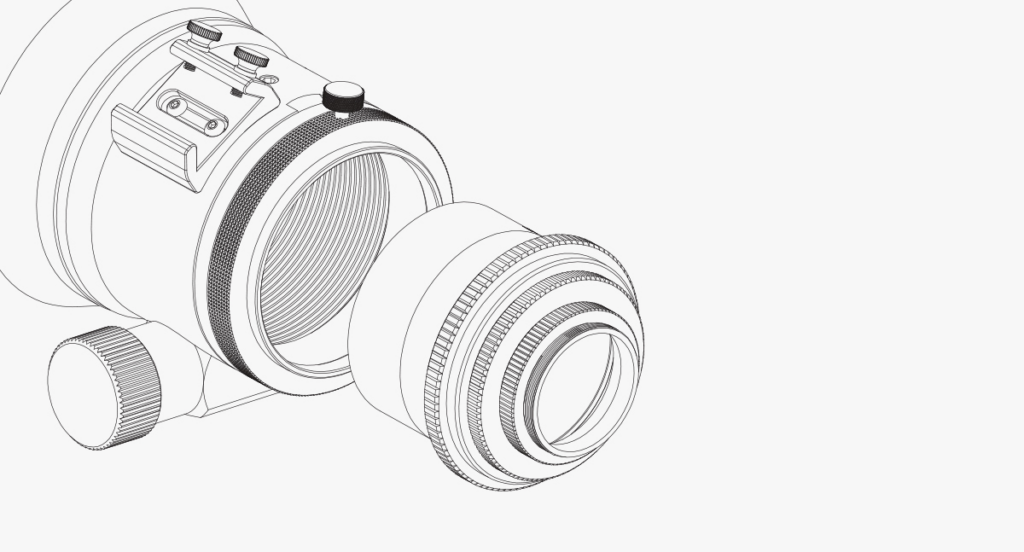

Connection steps

1. Prepare the FF107APO telescope tube and the focal reducer.
2. Unscrew the M86 to 2-inch adapter at the end of the FF107APO telescope tube.
3. Unscrew the end cap of the 0.7X reducer.
4. Insert the reducer into the focuser inner tube and tighten it.
