Product Description
ASI533MC Pro

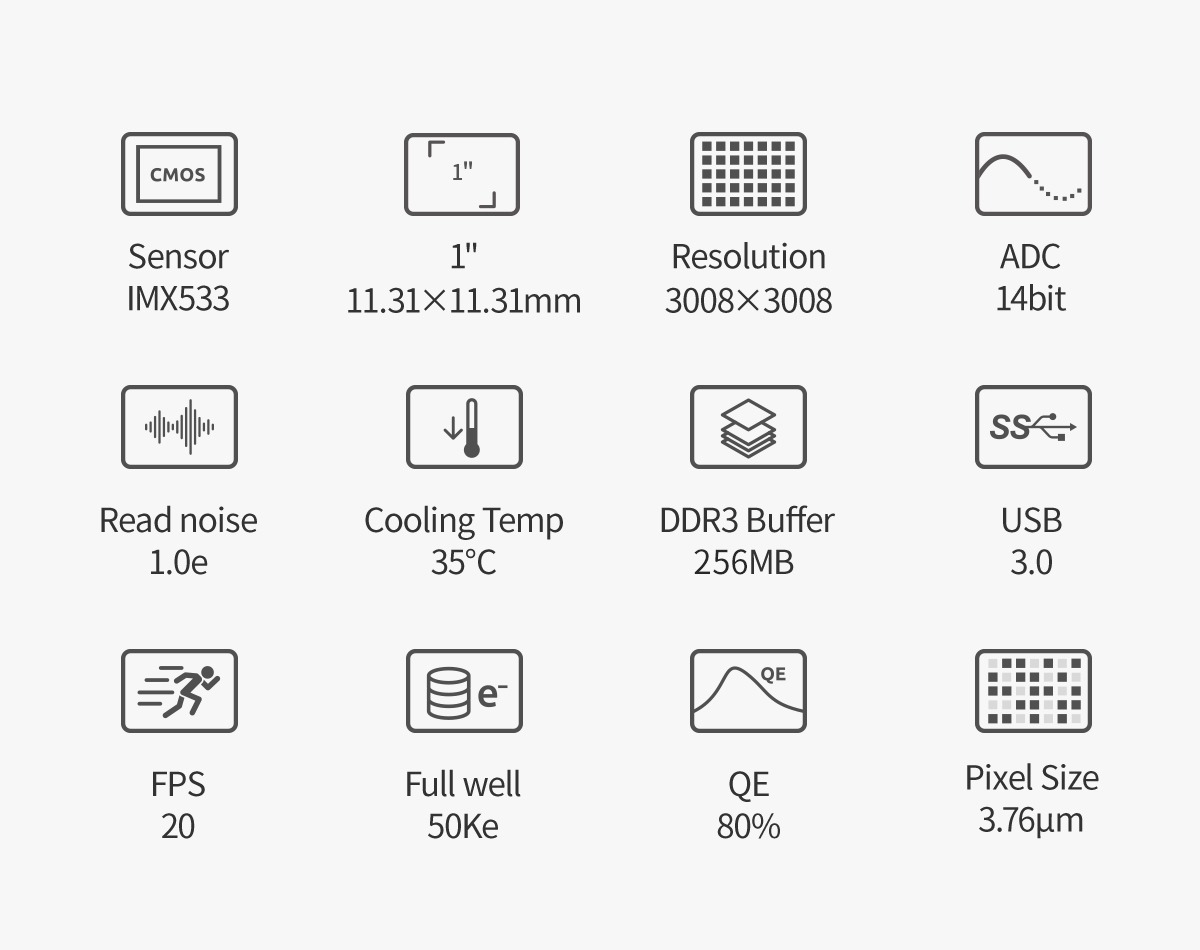

Camera technical details
- Camera technical details
- Sensor: Sony-IMX533CLK-D
- Diagonal: 15.968mm
- Resolution: 9 Mega Pixel 3008*3008
- Pixel Size: 3.76μm
- Max FPS at full resolution: 20fps
- Shutter: Rolling shutter
- Exposure Range: 32μs-2000s
- ROI: Supported
- Read Noise: 1.0-3.8e
- QE peak: 91%
- Full well: 50000e
- ADC:14bit

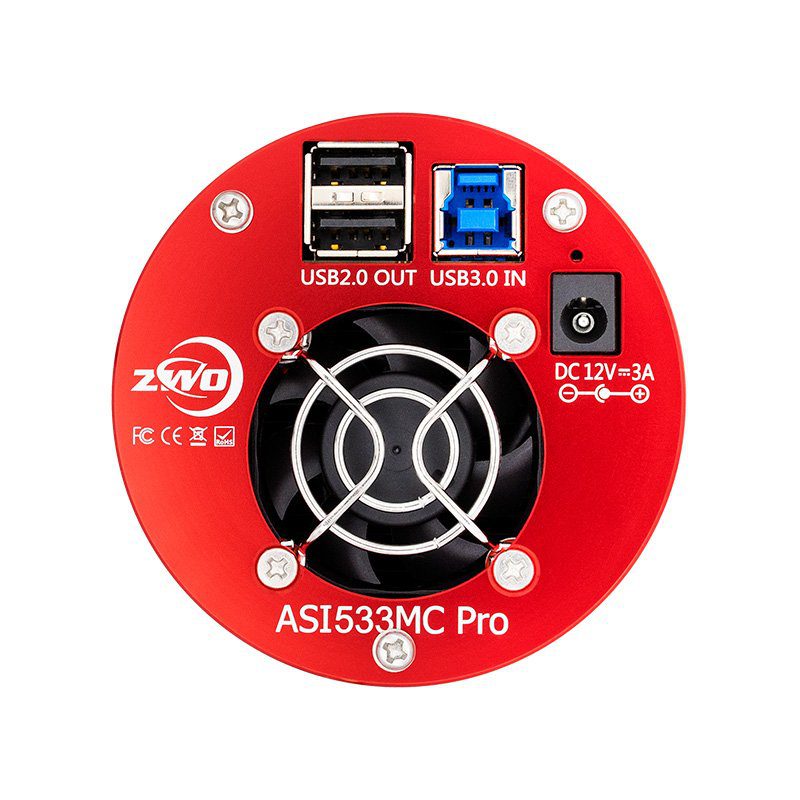

- Interface: USB 3.0 Type-B
- Adaptor: M42X0.75
- Protect window: D32-2-AR
- Dimensions: 78mm Diameter
- Weight: 470g
- Back Focus Distance: 17.5mm
- Delta T: 30°C-35°C below ambient
- Camera Power consumption: 650mA at 5V
- Cooler Power consumption: 12V at 3A Max
- Working Temperature: -5°C—50°C
- Storage Temperature: -10°C—60°C
- Working Relative Humidity: 0%—80%
- Storage Relative Humidity: 20%—95%
- Max FPS at full resolution:
- 14Bit ADC
- 3008×3008 19.88fps
- 1920×1080 54.11fps
- 1280×720 79.74fps
- 640×480 116.55ps
- 320×240 216.45fps
more resolutions are in software, support customize resolution.
Our website is continuously updated with the most recent camera drivers as well as software for DSO and planetary imaging. Please make sure the most recent Driver and software have been installed before you start shooting:
It is also recommended to read the Manuals first before shooting.
Warranty and Return Policy
ZWO will provide a 2-year free warranty service (Warranty Period) for ZWO products purchased by Users from ZWO (“Products”) in accordance with this Policy, commencing on the day following receipt of the Products by Users.
