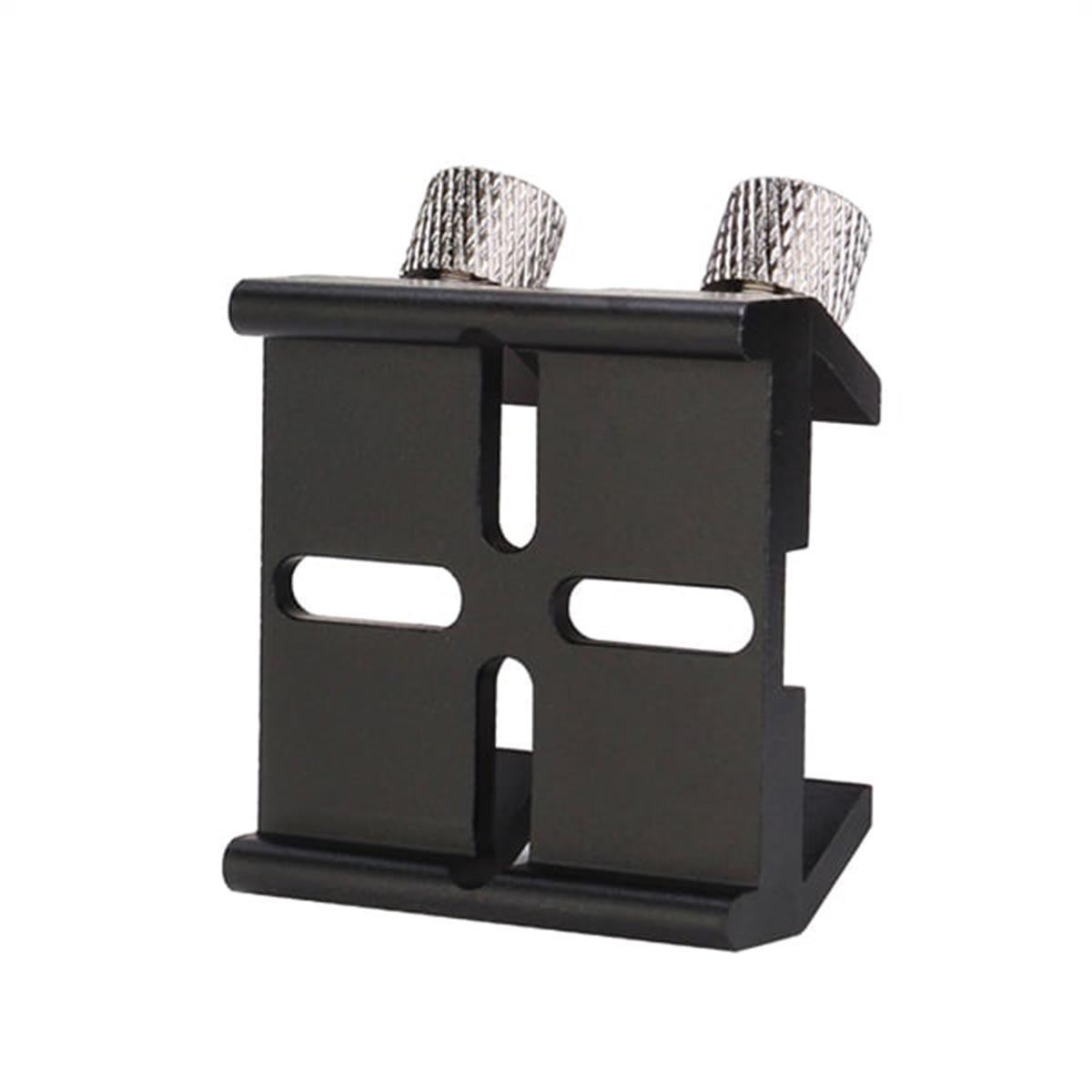

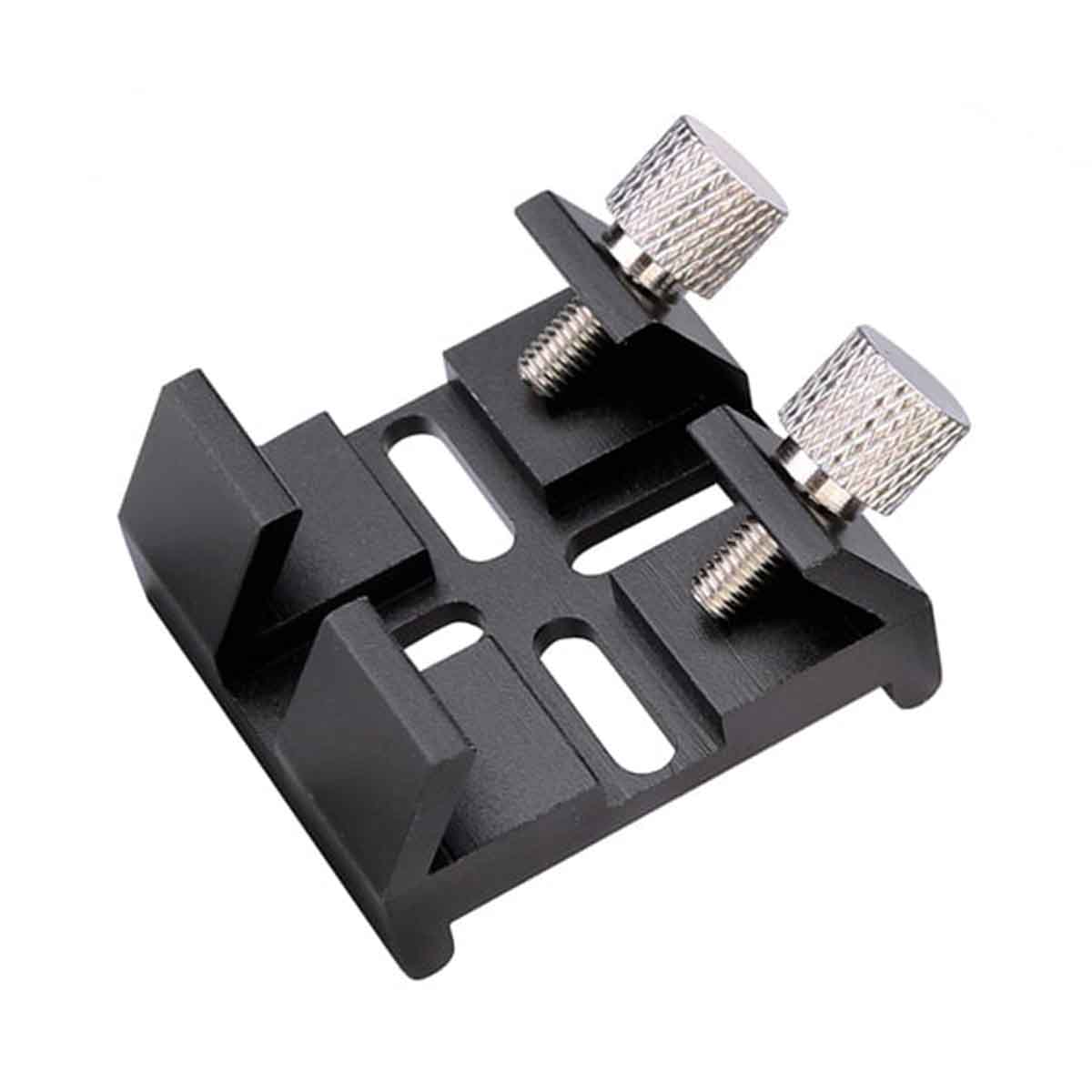

SVBONY SV224 Universal Dovetail Base (42mm)

SVBONY Universal Dovetail Base For Optical Astronomical telescope Finder Scope

High-quality Built

The dovetail base made of high-strength aluminum with anodizing aluminium process; is designed to accept finder scope.

Dovetail Base

The dovetail base fits most bracket designs; compatible with finder scope on telescopes, so you can securely attach an aiming device to any telescope.

Easy for Installation

The dovetail is easy to use; you can use thread screws to assemble it to your optical tube; the use is easy; just put it on the optical tube and tighten the screws.

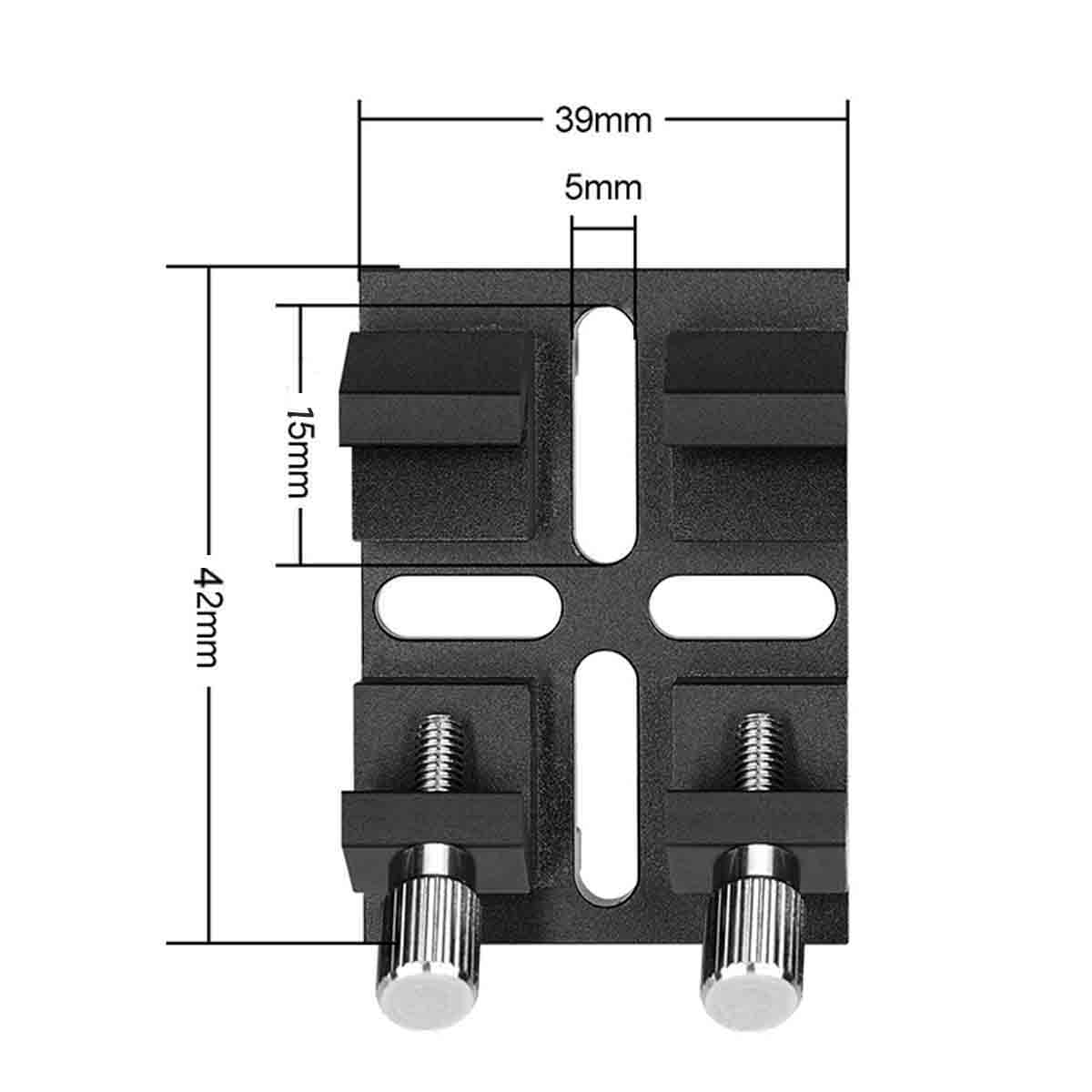

Specifications

• Model: W2370A
• Length: 39mm
• Width: 42mm
• Height: 20mm
• Width of internal slot: 5mm
• Horizontal length of internal slot: 15*5mm
• Vertical length of internal slot: 15*5mm
• Height of bottom: 4.5mm
• Inner diameter of the cross slot: 5mm
• Outer diameter of the cross slot: 9mm
• Can be fixed: M3-M4 screw
• Color: Black
• Weight: 41g

Features

1. SV224 dovetail slot is multi-function dovetail slot, the width of the internal slot is 5mm, it can be fixed with M3-M4 screw

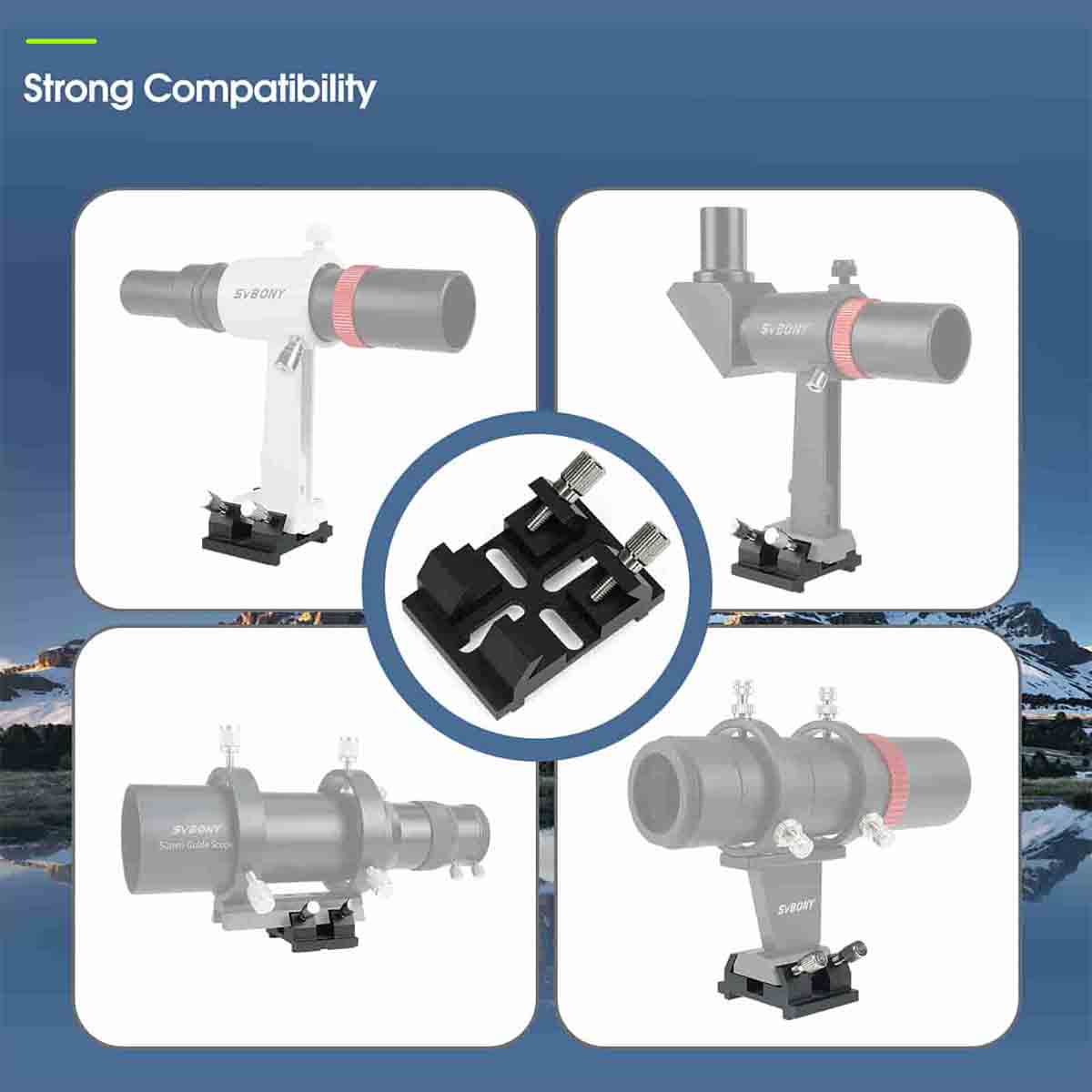

2. It can be installed to: SVBONY SV48, SV48P, SV503 70/80/102ED, Celestron C8, C8HD, C925, C11HD, SKYROVER: 80ED, 102ED, 130APO, SKYROVER 100ED binoculars etc

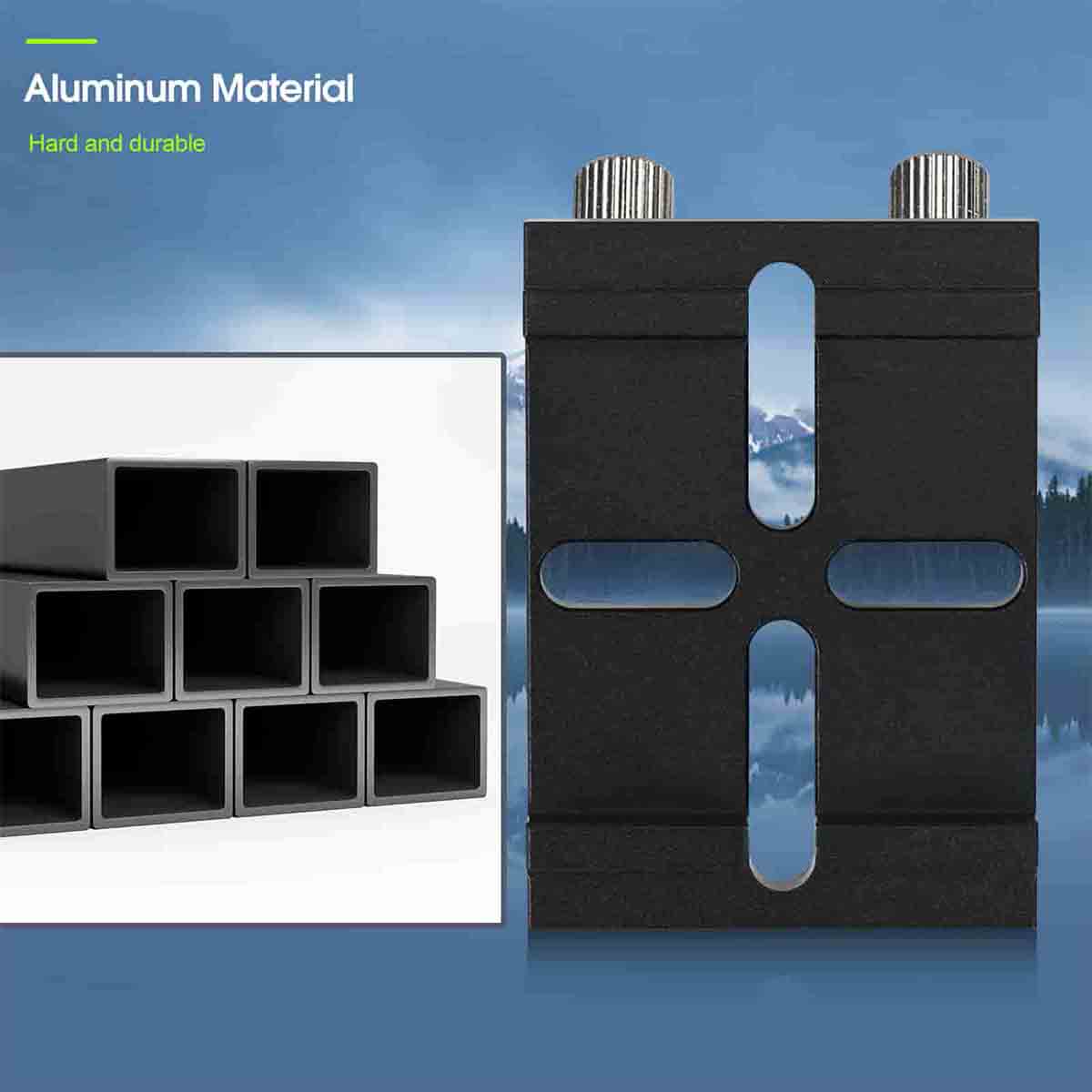

3. High strength aluminum with anodizing treatment. CNC machining ensures smooth surface and precise cutting of rail, it fits your telescope perfect. Made of premium aluminum alloy, solid construction is wearable and durable for years of use

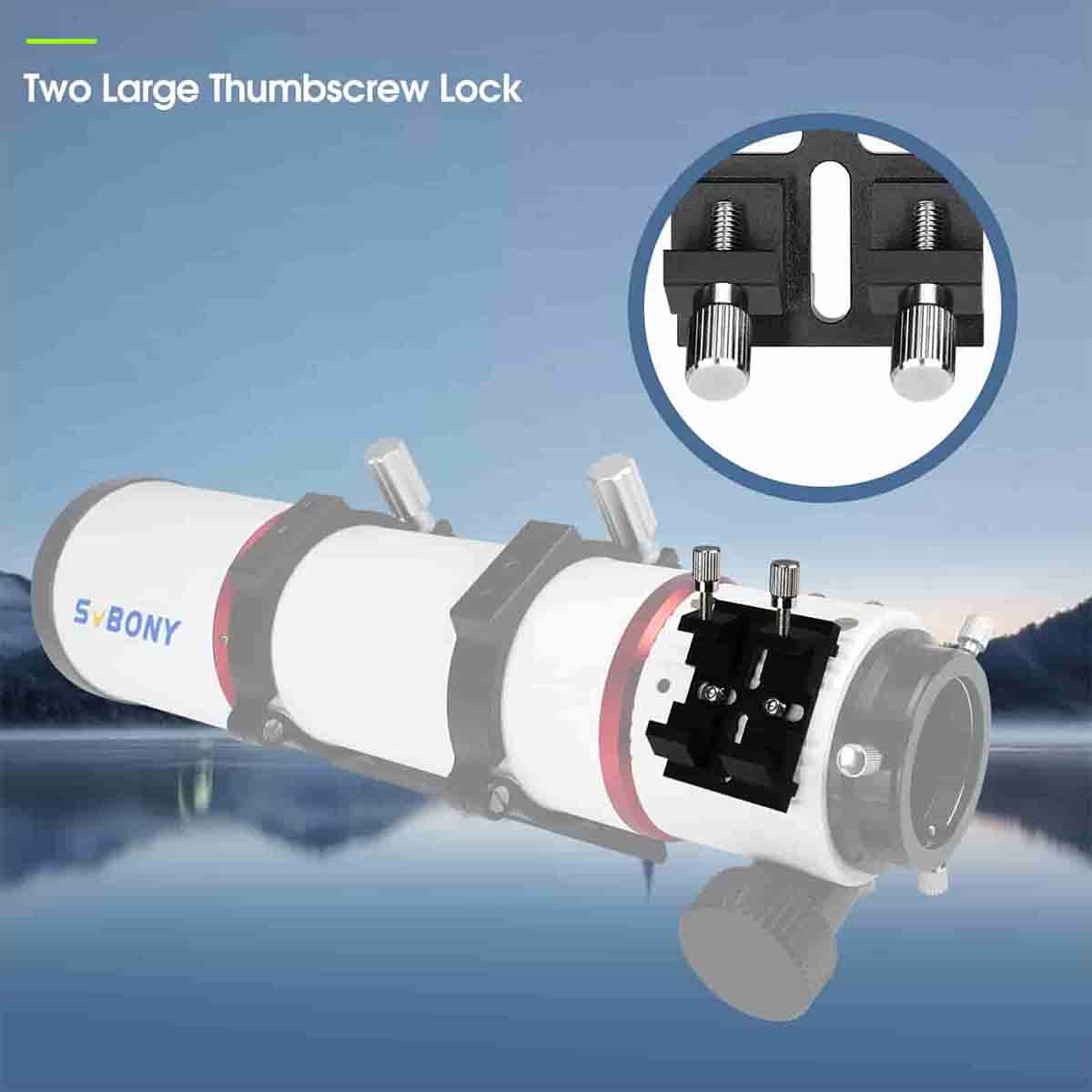

4. Bases feature two large thumbscrew locks to secure the finder scope bracket in place; and very easy to install and detach your finder scope or reflex sight; even though wearing gloves

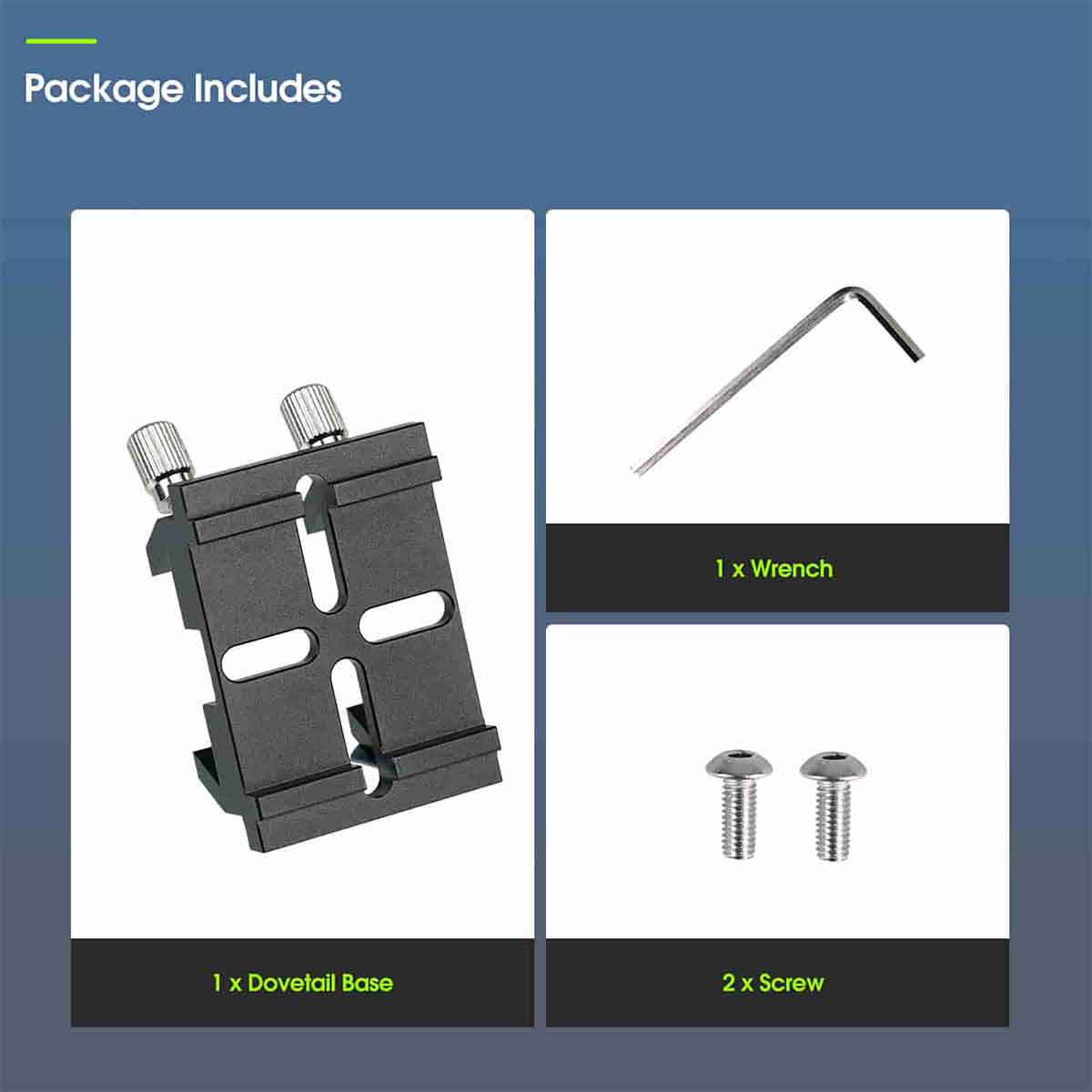

Package Includes

• 1 x Black finder scope dovetail base
• 2 x Thumbscrew
