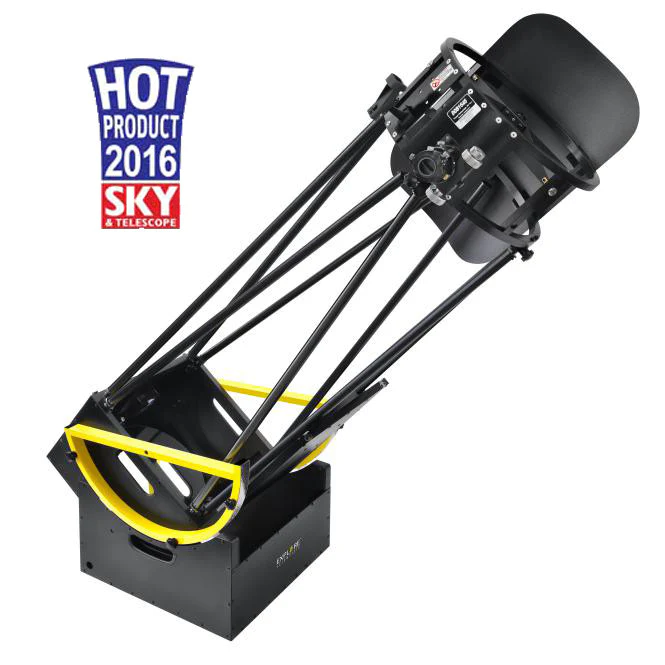

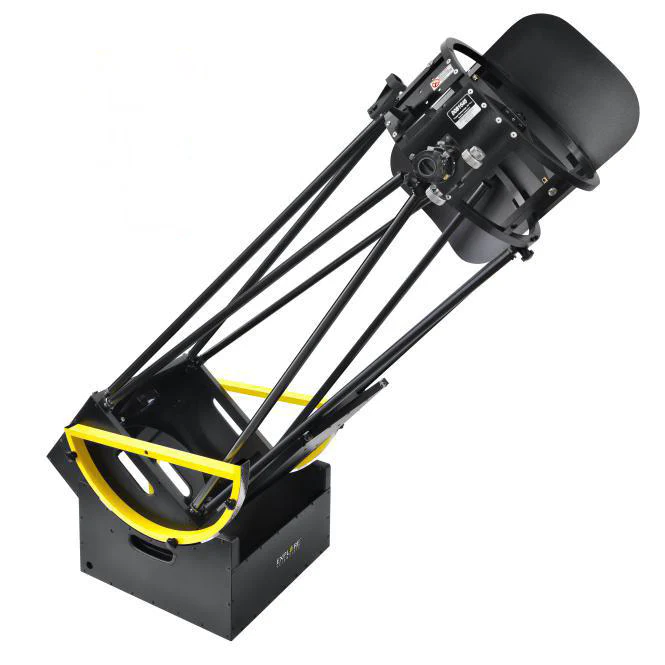

Explore Scientific – Generation II – 16-inch Truss Tube Dobsonian Telescope

Original price was: ₹169,483.05.Current price is: ₹152,542.37. (Ex. GST)-10% OFF

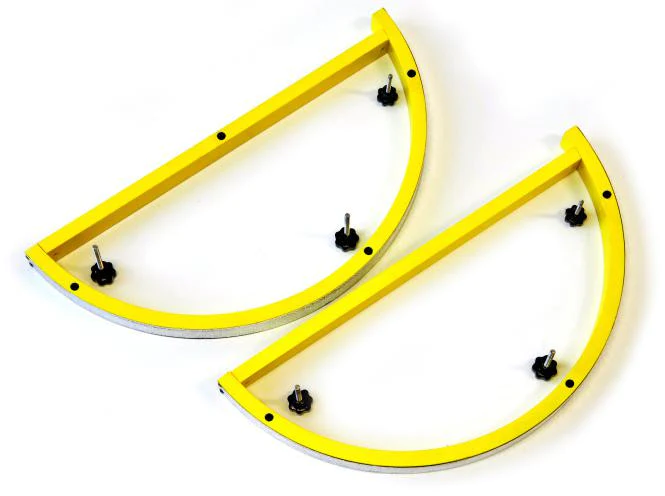

This is a Generation II telescope. All updates have been performed on this telescope. No telescope type has changed the hobby quite as much as the Dobsonian. Before the popularization of the Dobsonian by John Dobson, the vast majority of amateur telescopes consisted of small telescopes with primitive mechanics – barely enough to see the polar caps of Mars or the rings of Saturn. Larger telescopes, such as the Schmidt-Cassegrain were reserved for the wealthy. The ingenious combination of simple yet effective mechanisms with the greatest possible opening gives the Dobsonian telescope a unique triumphant march around the world. Nowhere do you get as much light for your money like a good Dobson. Disassembly of the scope without tools ensures a trouble-free transport of this great scope even in small cars. The entire structure has been optimized for maximum stiffness with minimal weight. The combination of high altitude bearings with optimized aluminum structures allows fine adjustment flows at high magnifications.

The ideal workhorse for the deep sky observers. A 406mm mirror collects more than 2,400 times as much light as the naked eye. Details on planets and deep sky objects will be visible even for inexperienced observers. Bright star clusters are resolved to the core, and the sight of the terminator on the moon is an unforgettable experience.

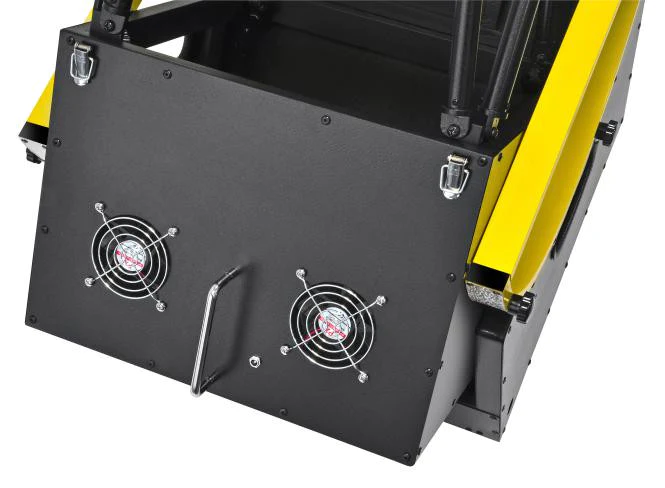

Includes 2″ focuser with helical gearing and 10:1 reduction; LED Red Dot Finder, collimation assist tool; soft light baffle and two radial main mirror fan for fast temperature equilibrium. AA Battery Pack for fans not included.

The scope is ready for the use with our optional coma corrector.

In stock

SHARE

This is a Generation II telescope. All updates have been performed on this telescope. No telescope type has changed the hobby quite as much as the Dobsonian. Before the popularization of the Dobsonian by John Dobson, the vast majority of amateur telescopes consisted of small telescopes with primitive mechanics – barely enough to see the polar caps of Mars or the rings of Saturn. Larger telescopes, such as the Schmidt-Cassegrain were reserved for the wealthy. The ingenious combination of simple yet effective mechanisms with the greatest possible opening gives the Dobsonian telescope a unique triumphant march around the world. Nowhere do you get as much light for your money like a good Dobson. Disassembly of the scope without tools ensures a trouble-free transport of this great scope even in small cars. The entire structure has been optimized for maximum stiffness with minimal weight. The combination of high altitude bearings with optimized aluminum structures allows fine adjustment flows at high magnifications.

The ideal workhorse for the deep sky observers. A 406mm mirror collects more than 2,400 times as much light as the naked eye. Details on planets and deep sky objects will be visible even for inexperienced observers. Bright star clusters are resolved to the core, and the sight of the terminator on the moon is an unforgettable experience.

Includes 2″ focuser with helical gearing and 10:1 reduction; LED Red Dot Finder, collimation assist tool; soft light baffle and two radial main mirror fan for fast temperature equilibrium. AA Battery Pack for fans not included.

The scope is ready for the use with our optional coma corrector.

Specifications

  • Item Number: ES-DOB1645-00
  • F/ratio: f/4.5
  • Focal length: 1,826 mm
  • Primary mirror diameter: 409mm
  • Secondary Obstruction: 25%
  • Mirror cell support points: 9

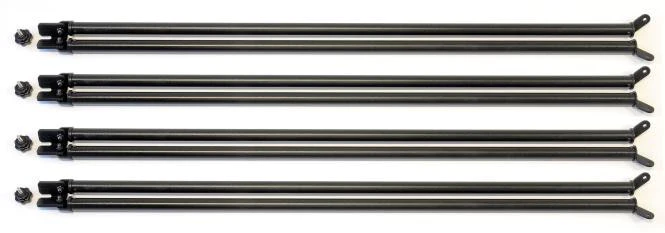

  • Truss pole length: 140 cm
  • Truss pole diameter: 25 mm

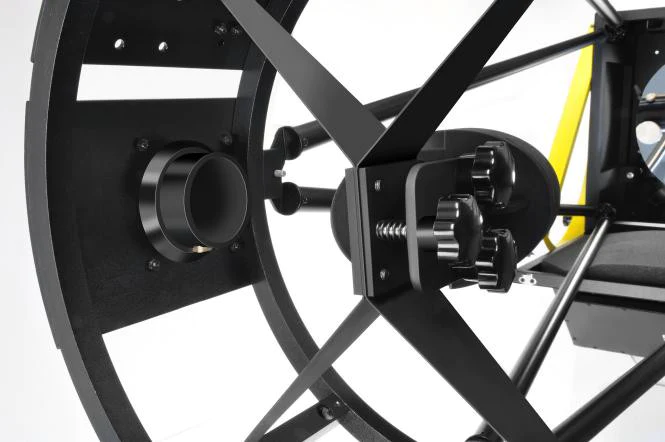

  • Secondary cage assembly diameter: 48 cm OD
  • Secondary cage assembly weight: 8 pounds
  • Secondary cage assembly height: 17 cm

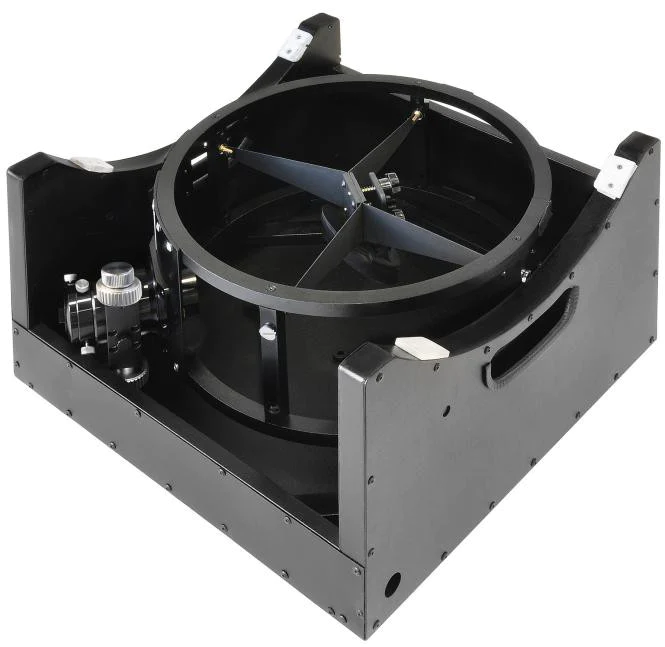

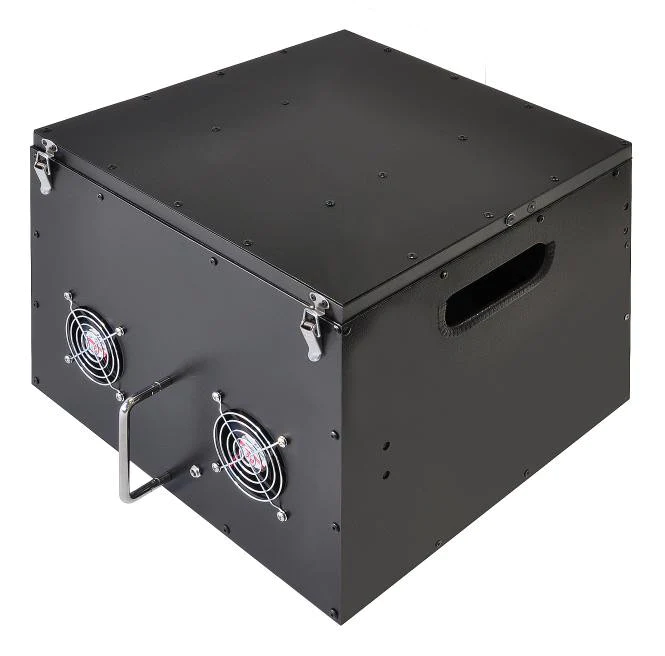

  • Mirror box/rocker box height: 42.5 cm
  • Mirror box weight *: 66 pounds
  • Height to center of eyepiece at zenith: 167 cm
  • Theoretical limiting stellar magnitude: 0.29 arc sec
  • Theoretical Rayleigh limit: 0.34 arc sec
  • Theoretical limiting magnitude: 15.74 mag
  • Theoretical maximum magnification: 800x
* Mirror weight can vary because of the manufacturing process; these values are approximate

Warranty: Limited Warranty is one year

SKU ES-DOB1645-00
BARCODE 812257015580

Instruction Manual
