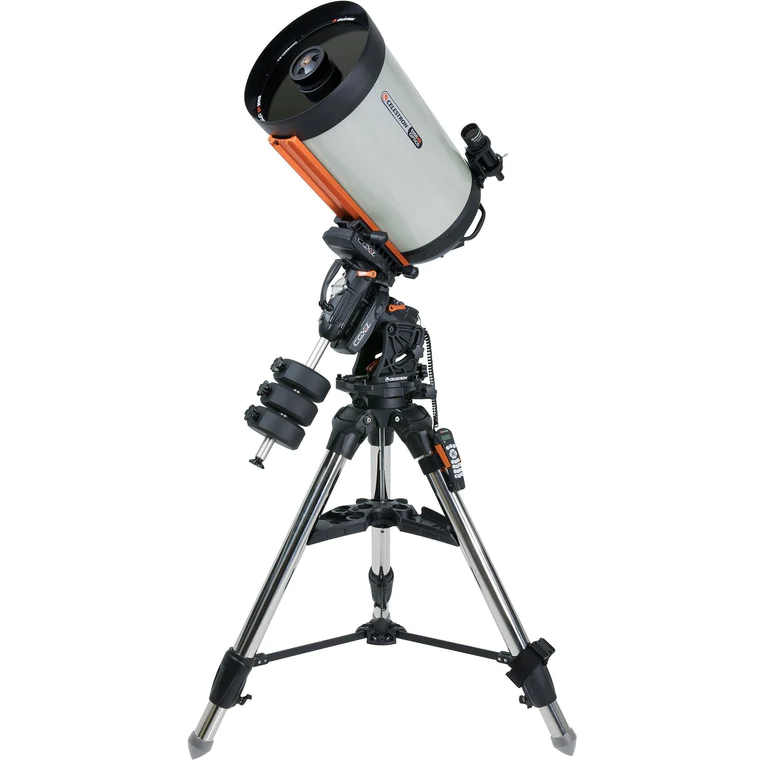

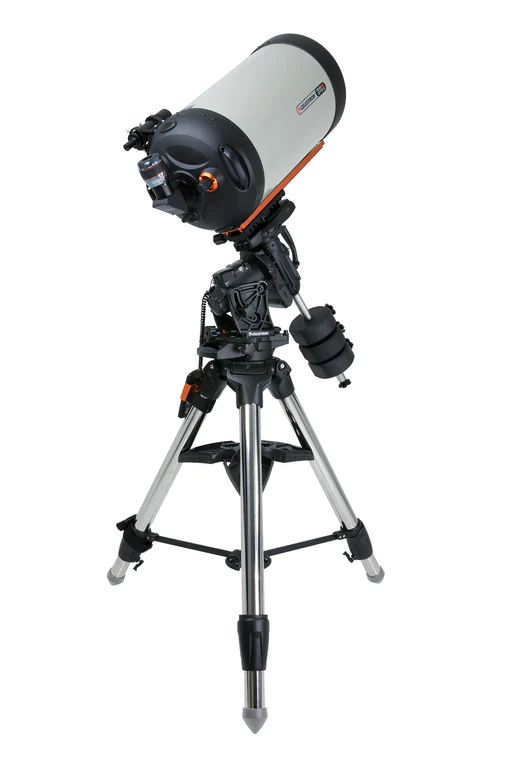

CELESTRON CGX-L EQUATORIAL 1400 HD TELESCOPE

Celestron’s CGX-L Computerized Equatorial mount is the latest addition to our fully computerized equatorial mount series. Capable of carrying Celestron’s largest optical tubes with ease, CGX-L is designed for backyard observatories and remote imagers looking for exceptional load capacity to weight ratio, compact design, and innovative features that fully support large telescopes, imaging kits, and the latest in wireless tech accessories.

Key design goals included larger 144mm diameter worm wheels which provide smoother operation and can more accurately drive heavier loads, longer 270mm dovetail saddle to support larger optical tubes, remote operation friendly features such as home and limit optical sensors, easier polar alignment adjustments, and better cable management overall. In addition to that, we’ve made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and easier to transport. COMPACT. ERGONOMIC. INNOVATIVE.

HD Features

• Experience our best optical performance with EdgeHD’s flat-field and coma-free optics for pinpoint stars all the way to the edge of today’s largest imaging sensors and widest eyepieces
• Aluminum optical tube with tube vents featuring an integrated 50-mesh filter allows hot air to be released from behind the primary mirror. Mirror support knobs hold the mirror in place and reduce image shift during imaging
• Versatile design accommodates 2 focal ratios: native f/10 or ultra-fast f/2 imaging with a removable secondary mirror and third-party accessories

Computerized Mount Features:

CGX-L Features

• Increased 75 lb load capacity. Exceptional load capacity to weight ratio
• Additional Aux accessory ports and autoguider port on the Dec axis for better cable management
• Larger 144mm diameter worm wheels to better and more accurately drive heavier loads
• Longer 270mm dovetail saddle to better support larger optical tubes
• Massive 70mm stainless steel tripod legs with a wider stance for improved stability under heavy loads
• Accessory tray holds three 1.25” and two 2” eyepieces with an upright stand for your smartphone or tablet
• Heavy duty, 31.5mm stainless steel counterweight shaft to support additional counterweights
• Optional add-on polar axis finderscope custom designed for CGX and CGX-L
• Supports WiFi and wireless operation accessories such as StarSense AutoAlign and SkyPortal WiFi Module (sold separately)

Mount Features:

• Compact, lower profile equatorial head provides improved stability and portability. Sturdier and more rigid with quicker dampening time
• Motors provide more torque, better slewing and tracking under heavy loads
• Heavy duty belt-drive system minimizes backlash while providing smooth motor operation at full capacity
• Clear windows built into motor covers so pulleys and belts can be monitored
• Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
• Internal cabling for worry-free remote operation. Power input and lower accessory ports remain stationary while the mount slews to avoid snags
• Internal hard stops for both axes prevent cable tension and tripod strike
• Internal optical sensors on both axes for simple and safe remote operation
• Home sensors allow the mount to always start in the index position regardless of orientation before a power reset
• Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe
• Includes Celestron’s PWI telescope control software, co-developed by PlaneWave Instruments. Software features multi-point mount modeling for extremely precise pointing accuracy
• Software Polar Align: “All-Star Polar Alignment” allows quick and very precise polar alignment. Align on any bright named star without extra polar alignment accessories, apps, or other assistance
• Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3°-65° latitude range
• Dual-fit Vixen/CG-5 and Losmandy/CGE dovetail saddle
• +20° of additional tracking past the meridian on either side
• Redesigned tripod has a widened stance for added stability. The minimum tripod height has also been lowered per user feedback
• Tripod legs can be collapsed with accessory tray installed for faster setup and transport

Ergonomics:

• Integrated handles for easy transport and portability
• Ergonomically designed dovetail clamping knobs
• Innovative and improved polar alignment adjustment system
• Ergonomic adjustment knobs with reduced friction for smooth and easy positioning under full loads. Stationary latitude knob with a linkage system greatly reduces the amount of friction when polar aligning the mount. Redesigned azimuth adjustment with low-friction Teflon bearings to make adjustments easy under full load. No more binding, rough adjustments!
• Easy to read latitude scale

Electronics:

• NexStar+ hand control with USB port
• USB 2.0 port used to connect directly to PC with PWI Software
• 2 available autoguider ports for optimum cable management
• PEC sensor and PPEC ready
• Threaded 12VDC power input barrel connector
• Internal Real Time Clock (keeps time and site information saved)
• On/Off rocker switch with red LED

Specifications

OPTICAL TUBE INFO:

• Optical Design: EdgeHD
• Aperture: 356mm (14″)
• Focal Length: 3910mm (154″)
• Focal Ratio: f/10
• Focal Length of Eyepiece 1: 23mm (.91″)
• Magnification of Eyepiece 1: 170x
• Finderscope: 9×50
• Star Diagonal: 2″ with 1.25″ adapter
• Optical Tube: Aluminum
• Highest Useful Magnification: 840x
• Lowest Useful Magnification: 51x
• Limiting Stellar Magnitude: 15.3
• Resolution (Rayleigh): 0.39 arc seconds
• Resolution (Dawes): 0.33 arc seconds
• Light Gathering Power (Compared to human eye): 2579x
• Secondary Mirror Obstruction: 114mm (4.5″)
• Secondary Mirror Obstruction by Diameter: 32%
• Secondary Mirror Obstruction by Area: 10%
• Optical Coatings: StarBright XLT
• Optical Tube Length: 787mm (31″)
• Optical Tube Diameter: 400.5mm (15.77″)
• Optical Tube Weight: 46 lbs (21 kg)
• Dovetail: CGE Dovetail Bar

MOUNT INFO:

• Mount Type: Computerized Equatorial
• Instrument load capacity: 75 lbs (34 kg)
• Height adjustment range (includes mount and tripod): 1524mm – 1955.8mm (60″ – 77″)
• Tripod adjustment range (tripod only): 838.2mm – 1397mm (33″ – 55″)
• Equatorial height alone: 609.6mm (24″)
• Tripod Leg Diameter: 69.85mm (2.75″) Steel tripod with graduated markings on lower section
• Latitude adjustment range: 3° – 65°
• Mount Head Weight: 52.6 lbs (23.8 kg)
• Accessory Tray: Yes
• Tripod Weight: 46.2 lbs (21 kg)
• Weight of Counterweights: 3 x 22 lbs
• Slew Speeds: 9 slew speeds – max speed 3°/second
• Tracking Rates: Sidereal, Solar and Lunar
• Tracking Modes: EQ North and EQ South
• GPS: N/A
• Dovetail Compatibility: Dual saddle plates (CG-5 and CGE saddle)
• Number of Auxiliary Ports: 4 AUX Ports (Hand Control can use any AUX Port, 2 are located near dovetail saddle)
• Autoguide Port: Yes, 2 Ports (one is located near the dovetail saddle)
• USB Port: Yes, input for Mount and Hand Control
• Power Requirements: 12V DC, 3 amps
• Motor Drive: DC servo motors
• Alignment Procedures: 2-Star Align, 1-Star Align, Solar System Align, Last
• Alignment, Quick Align
• Periodic Error Correction: Yes
• Computerized Hand Control: Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons, USB 2.0 Port for PC connection
• NexStar+ Database: 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
• Software: CPWI Telescope Control Software, Celestron Starry Night Special Edition Software, and SkyPortal App

Included Items:

• CGX-L Equatorial Head
• CGX-L Tripod
• Accessory Tray
• 3 x 22 lbs counterweights
• NexStar+ Hand Control
• DC Power Cable (item# 18769)
• 8mm Allen wrench (contained in rear carry handle)

Solar Warning

• Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result.
• Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
• Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.

Supporting Videos and Documents

Documents:

• CGX-L Mount Manual
• EdgeHD Optics Manual
• Whitepaper EdgeHD Optics
• NexStar Plus Hand Control Manual
