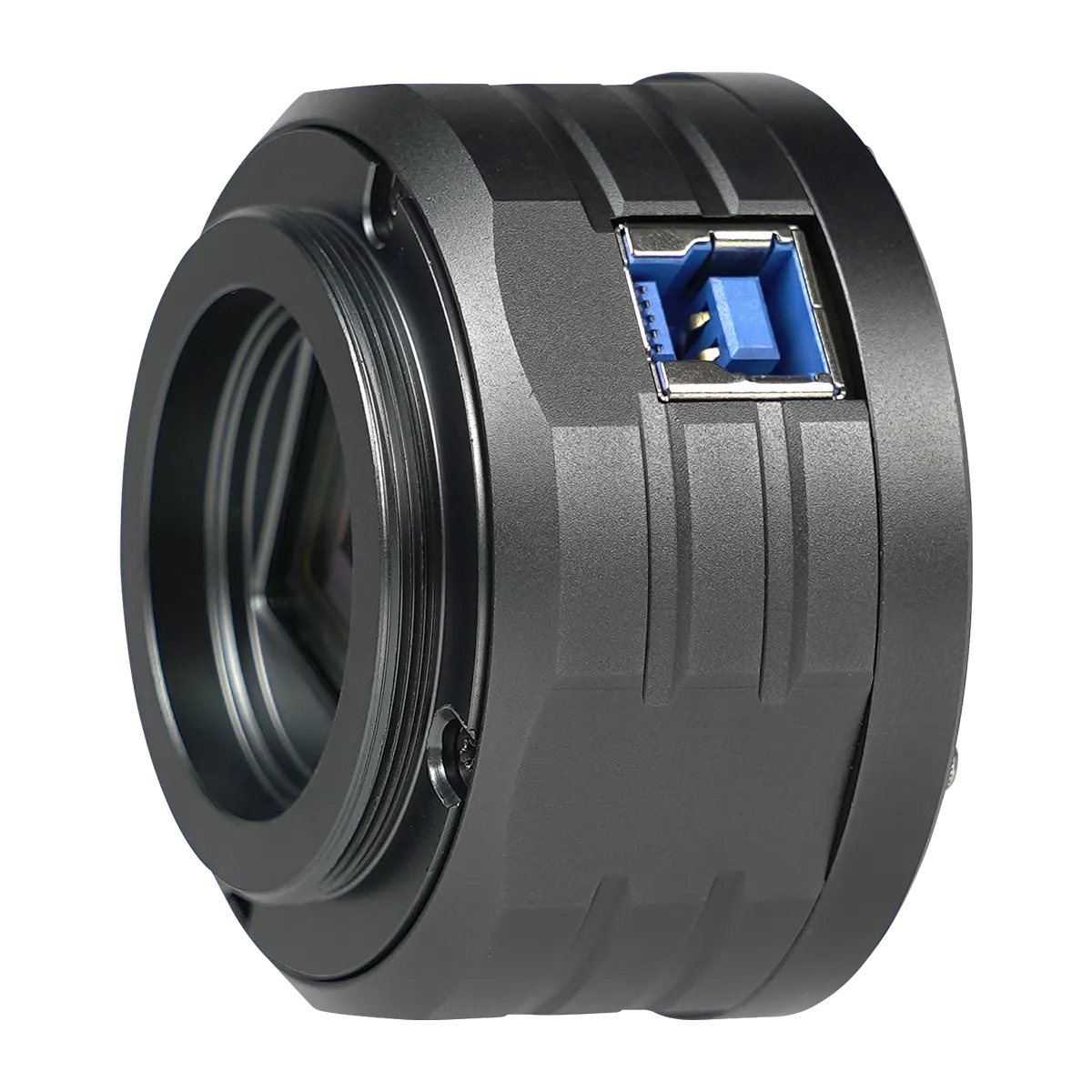

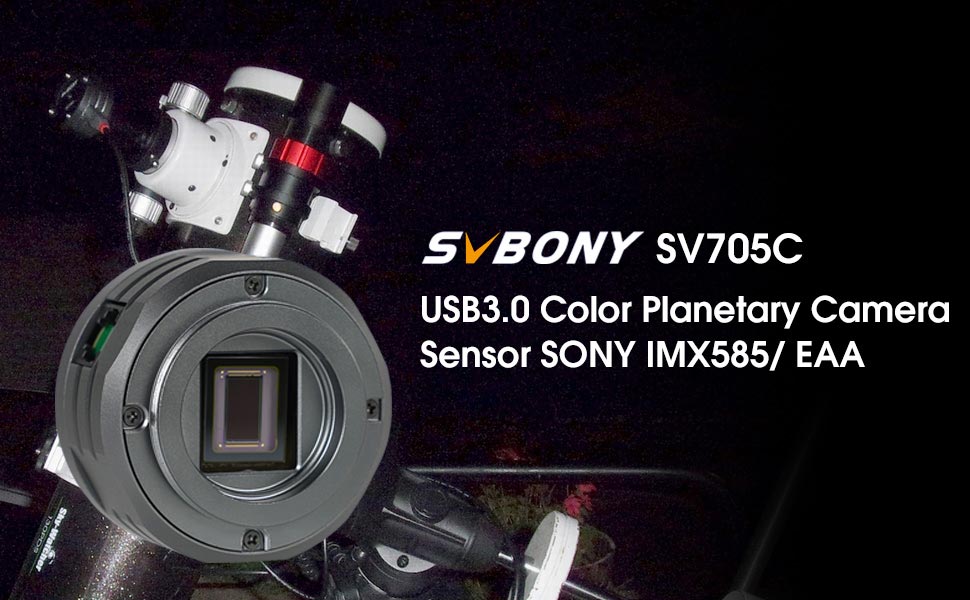

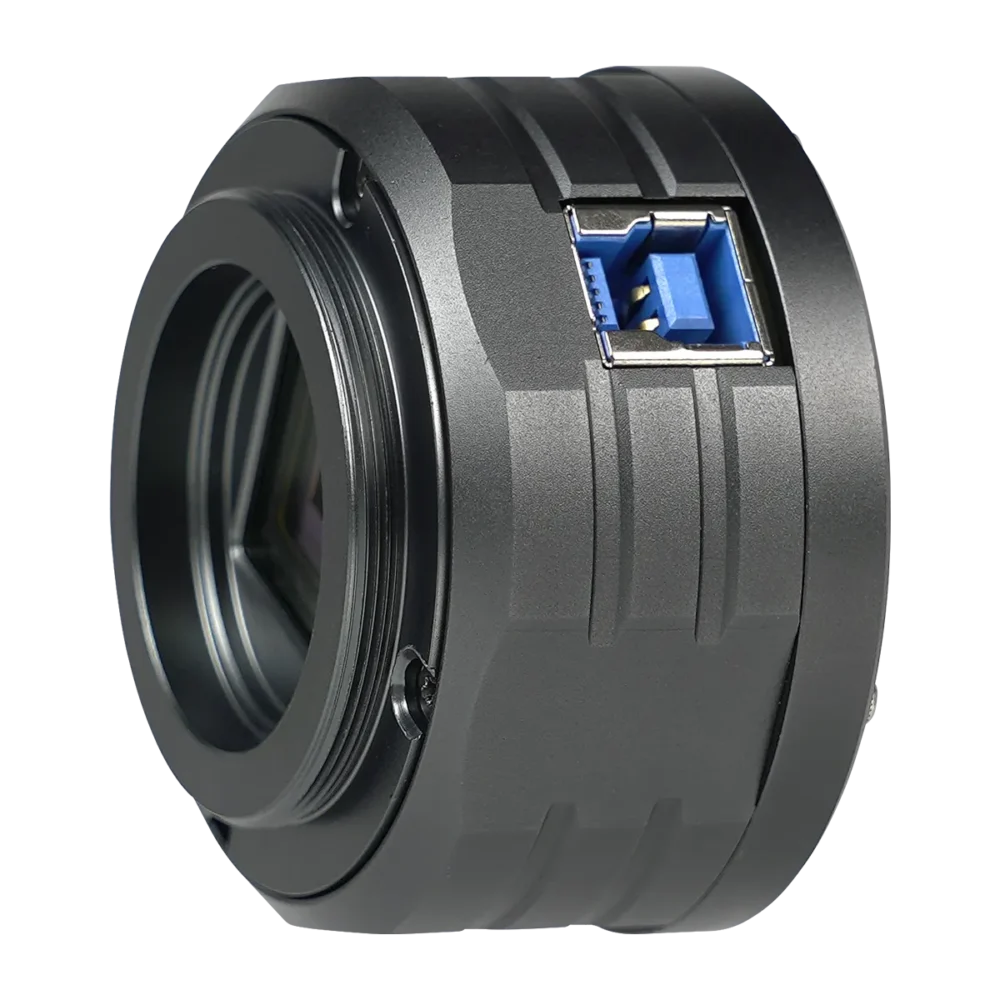

Svbony SV705C Color Planetary Camera

SV705C Planetary Camera IMX585

Due to the Back-illuminated sensor structure and advanced pixel technology, the camera has very low readout noise and a large full well capacity (38ke-) especially in low light conditions. Which is 3 times than the IMX485 sensor.

USB3.0  High Speed Transmission

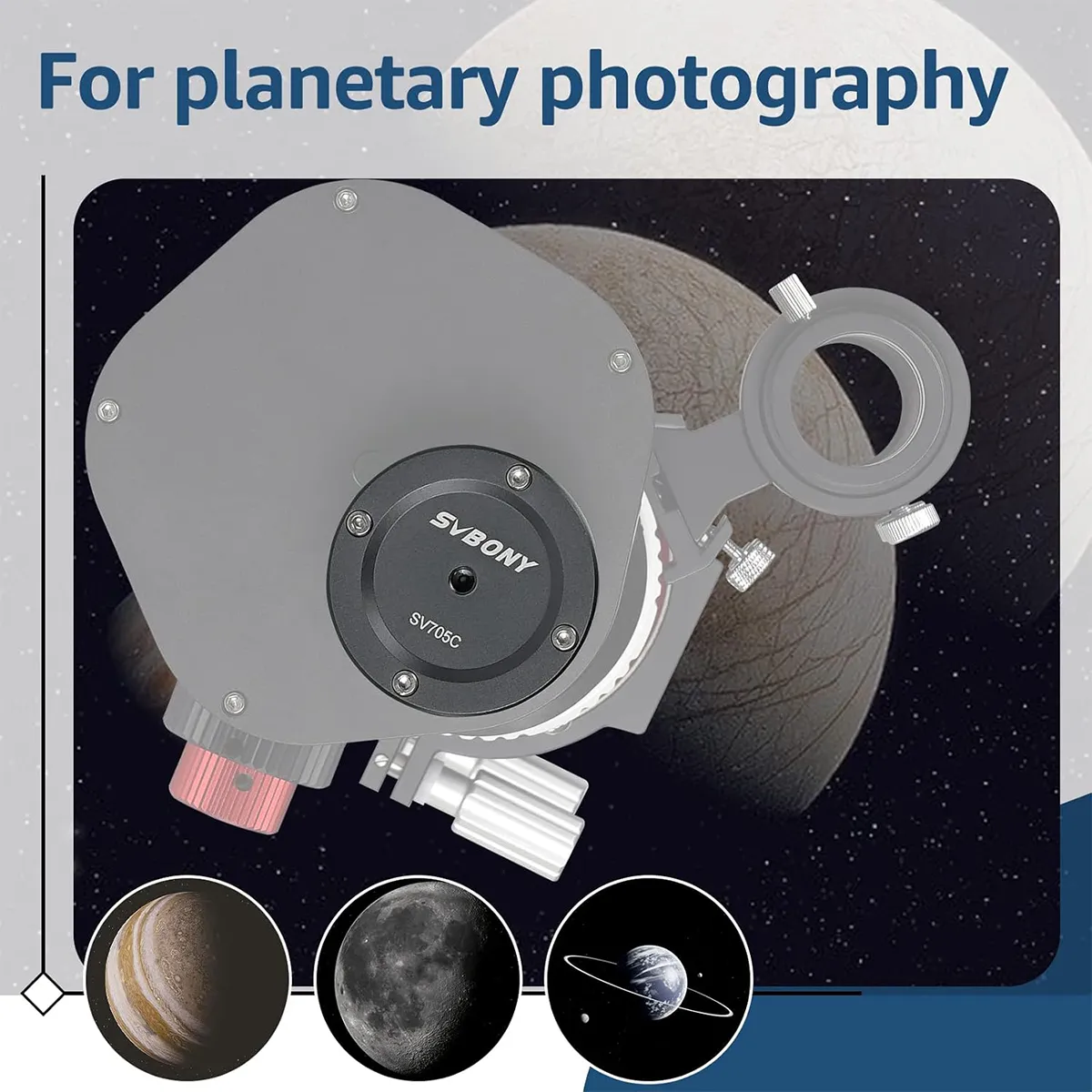

Using USB3.0 high speed data transmission, is quick and efficient for planetary, lunar and solar.

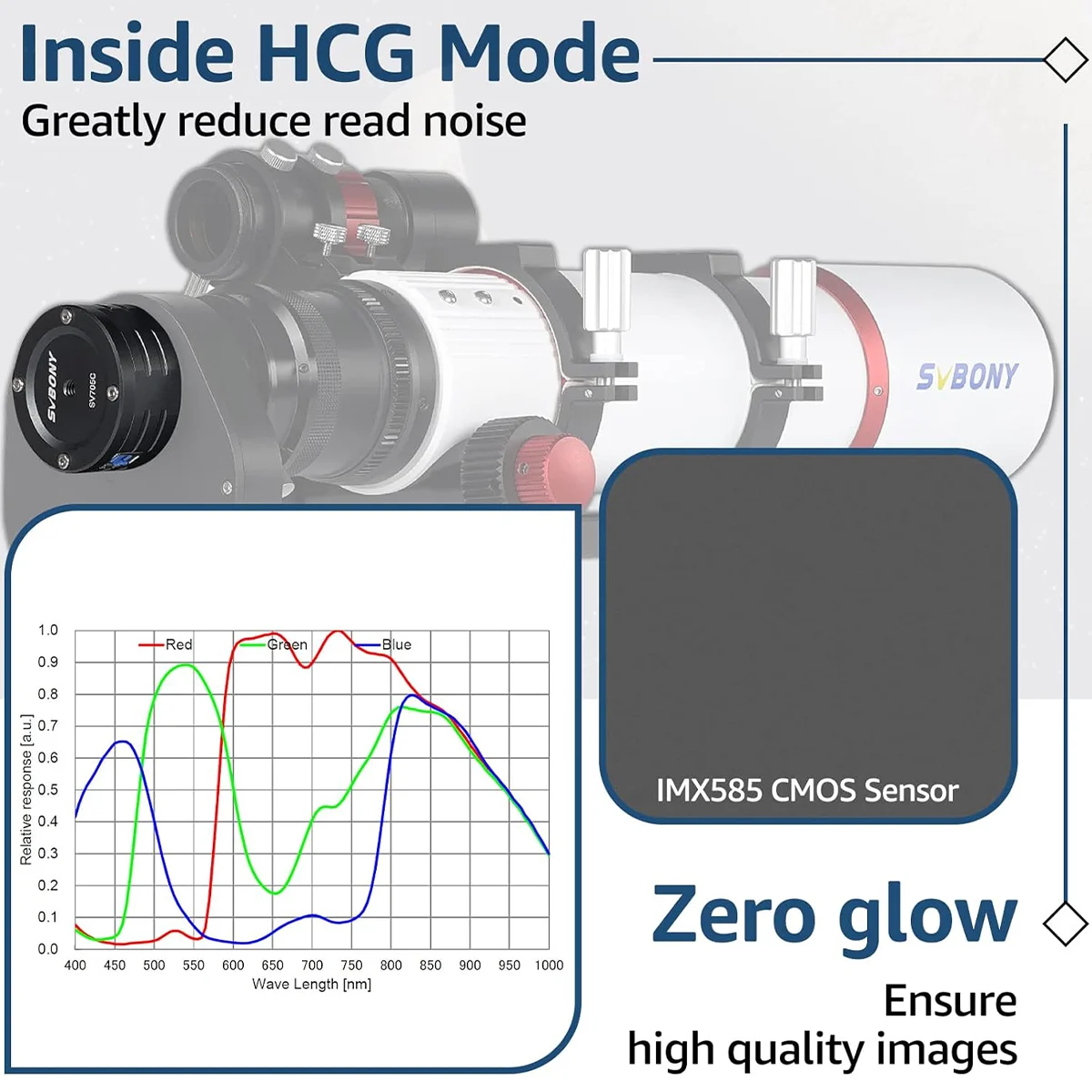

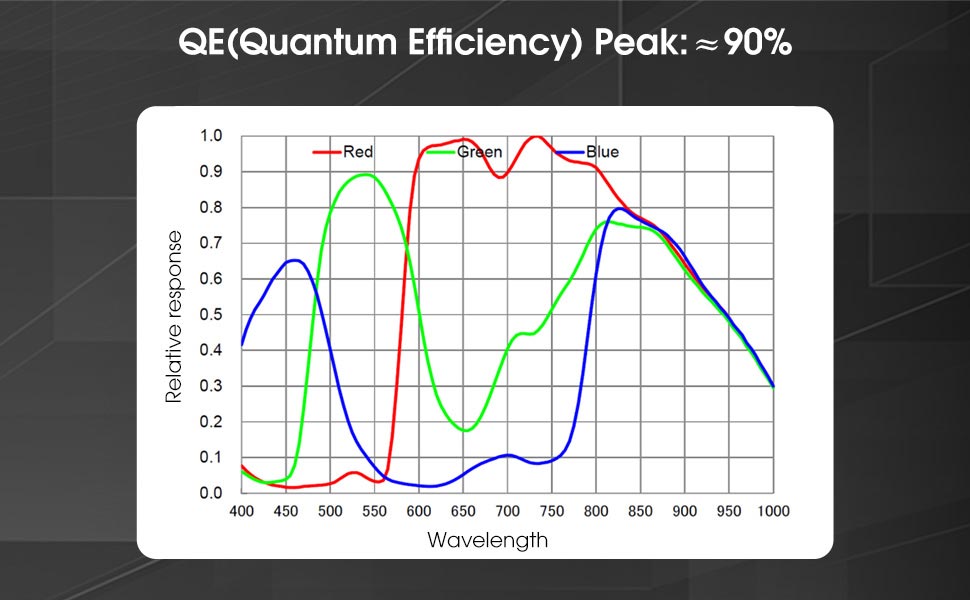

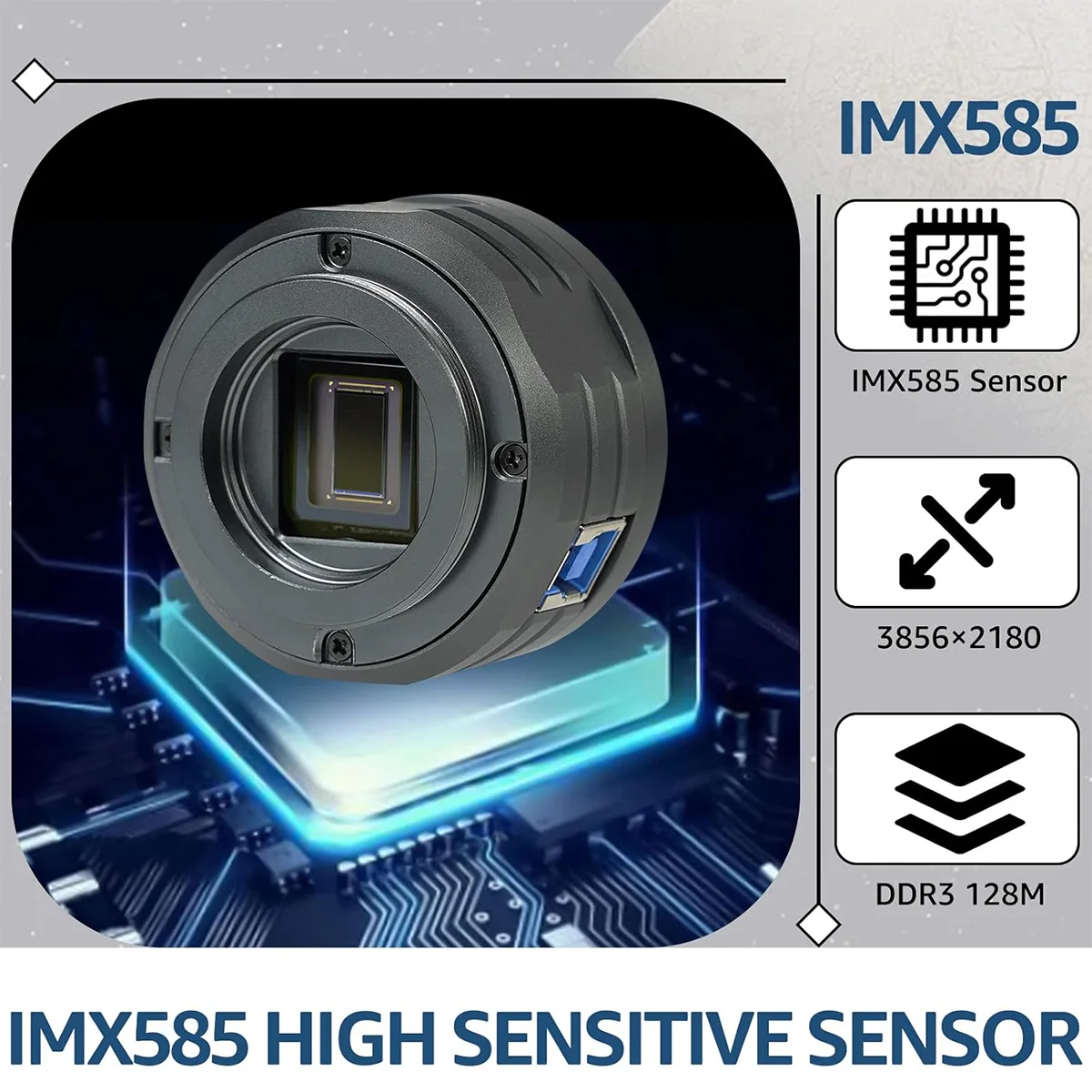

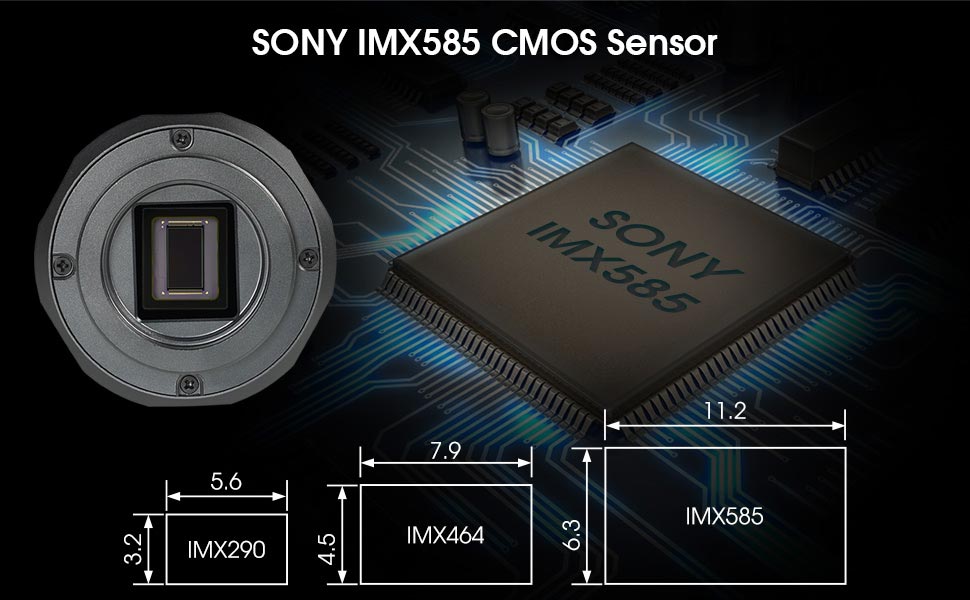

IMX585 CMOS color sensor

Compared with IMX485, it produces up to 45 fps with super low readout noise. It also increases the sensitivity by approximately 1.7 times compared to IMX485. IMX585 has 3 times the number of full well charges, and has a very high signal-to-noise ratio;

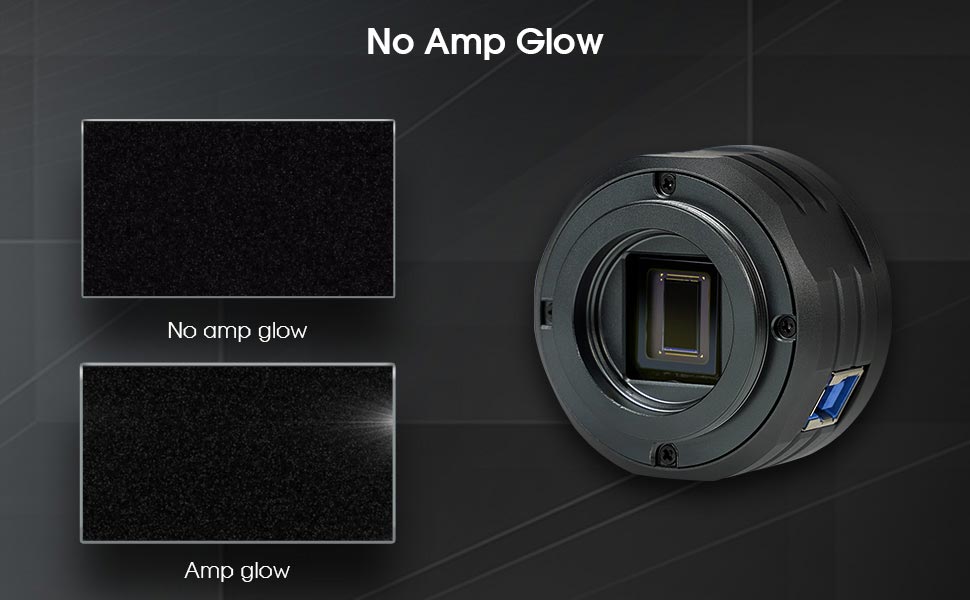

Anti Amp Glow

No matter long exposure time or high gain, the SV705C camera has no Amp Glow at all, make sure the totally high quality“dark”image.

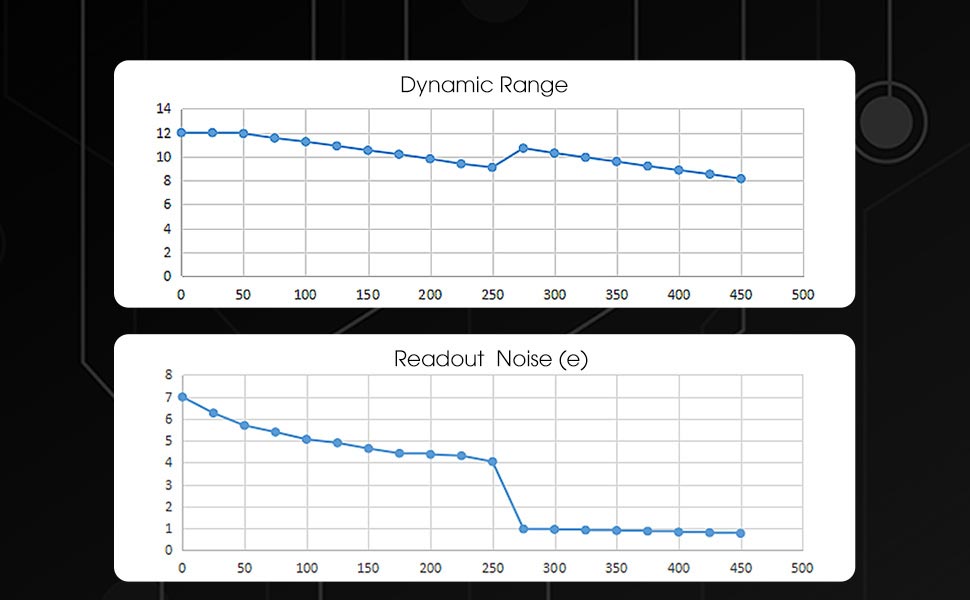

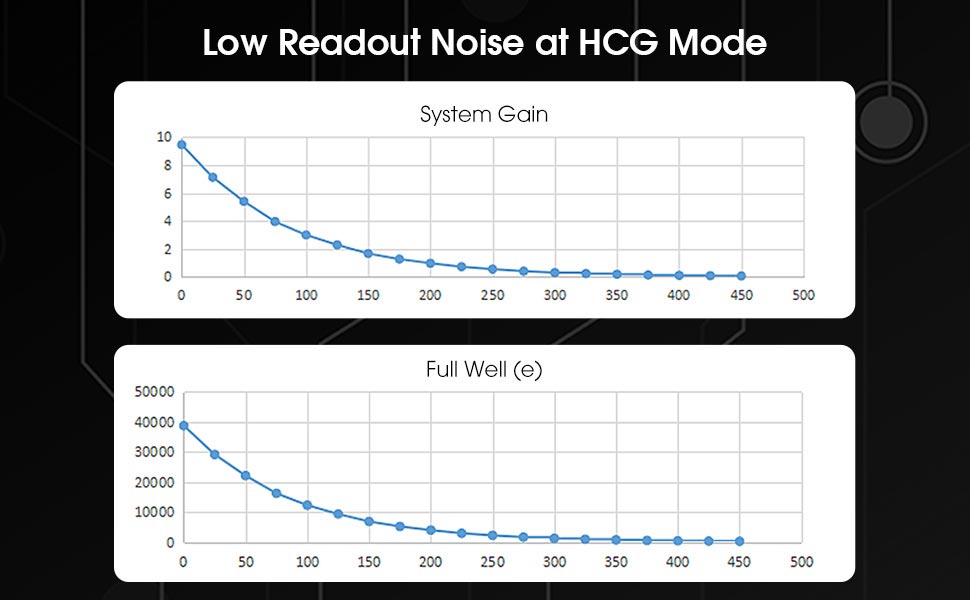

HCG Digital Noise Reduction Technology

Using the HCG digital noise reduction technology, the readout noise can be greatly reduced and high dynamic range is retained.

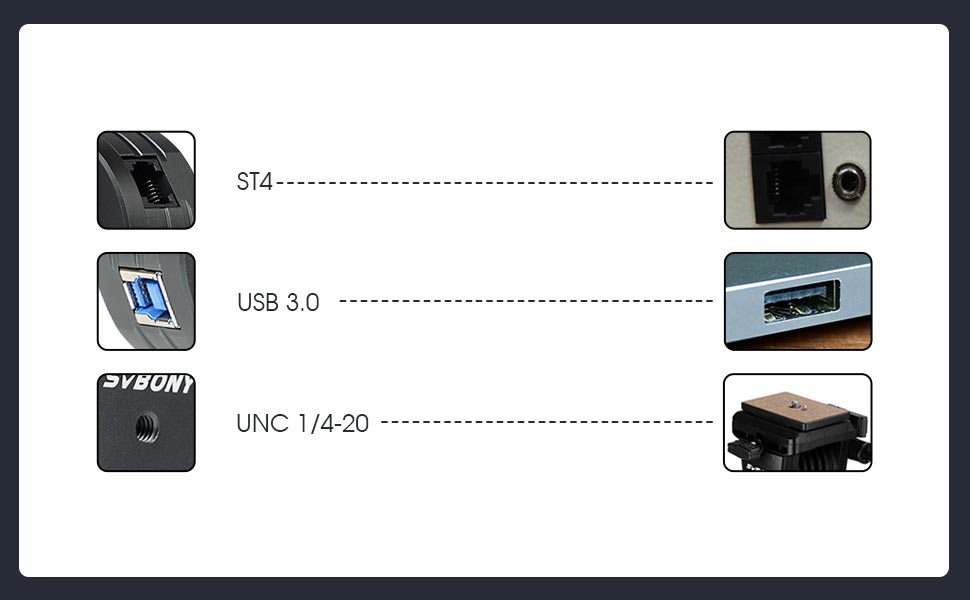

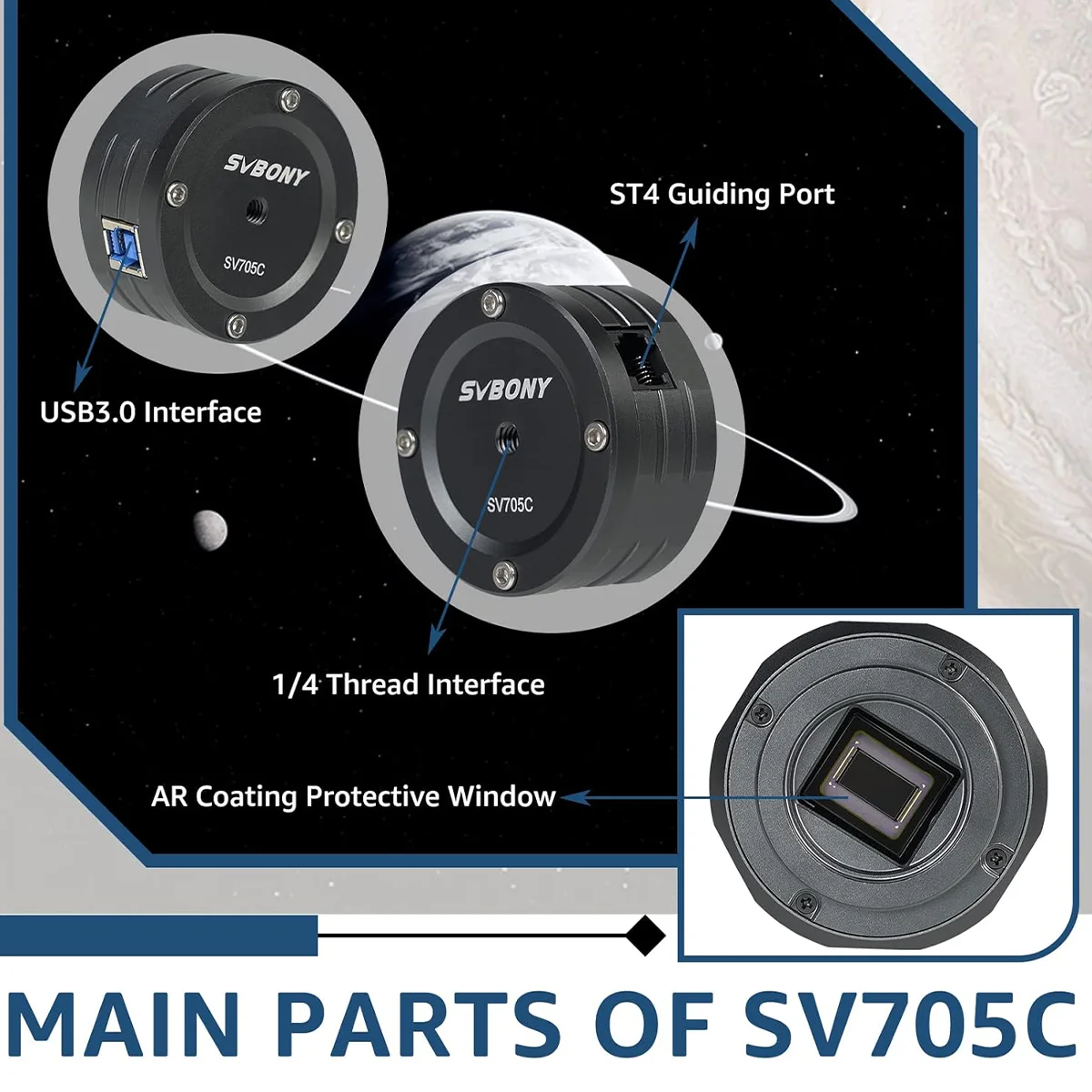

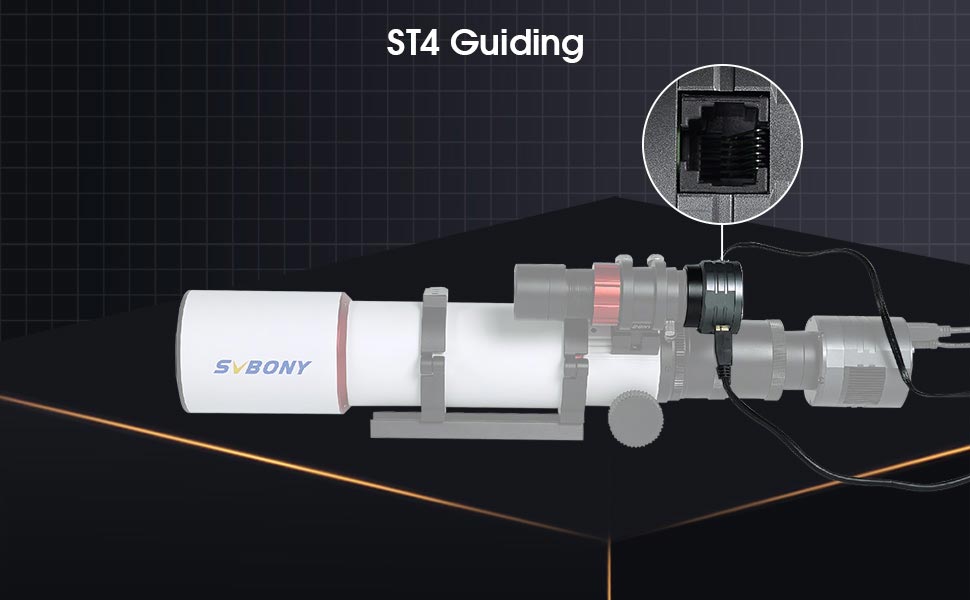

ST4 Guiding

It is designed with ST4 guiding port, supported by PHD2 and the ASCOM platform. You can connect the camera to the mount by a guiding cable, and control the equipment through software on your computer. You also need filters and other accessories to ensure the best results.

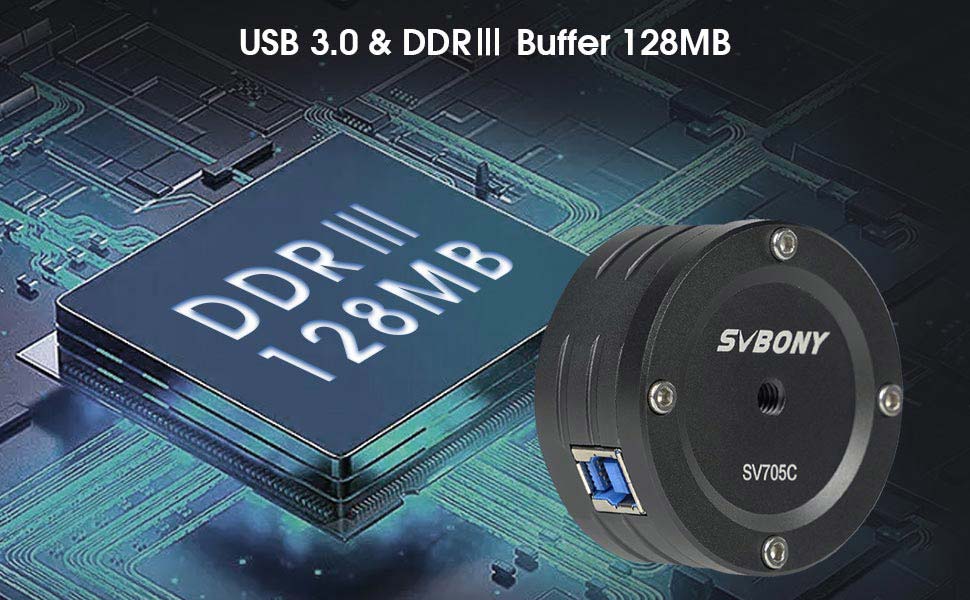

128MB DDRII Buffer

The SV705C has a built-in 128MB DDRIII image buffer. The benefit of the image buffer is that the memory will cache the image and transfer it to the computer when the USB interface is not busy or being interrupted, so that the frame won’t be lost or corrupted. This buffer also allows a slower computer with USB 3.0 to capture every frame without loss even if the USB bus is occasionally busy with other peripherals. This buffer also makes it possible to run another camera using the same computer without USB transfer problems from the SV705C.

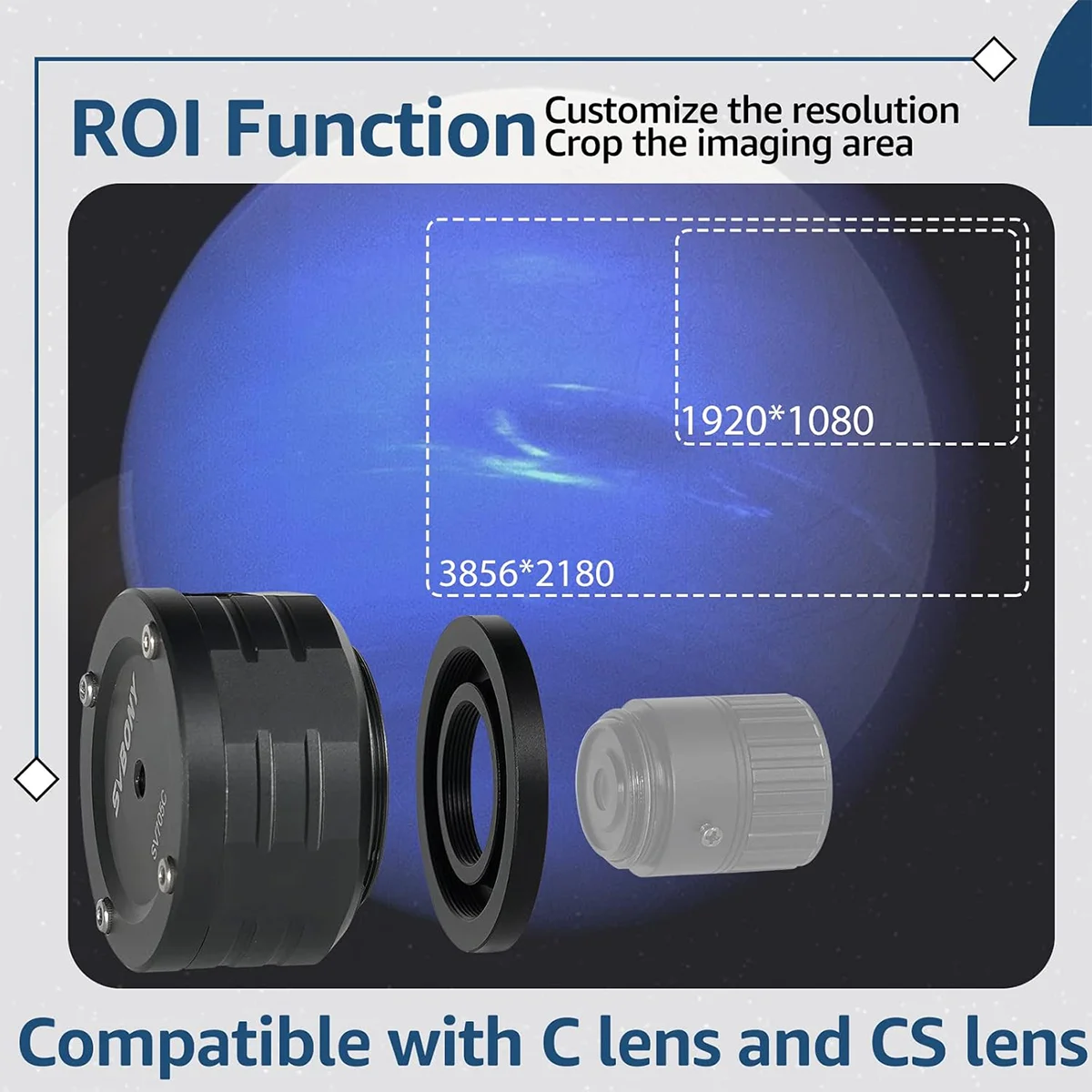

Supports ROI & BIN

SV705C features Region of Interest (ROI), auto resolution can be set, will highly increased the frame rate in planetary imaging, excellent performance ensure the planetary imaging quite easy.

• 3856 × 2180 @ 45FPS
• 1920 × 1080 @ 187FPS

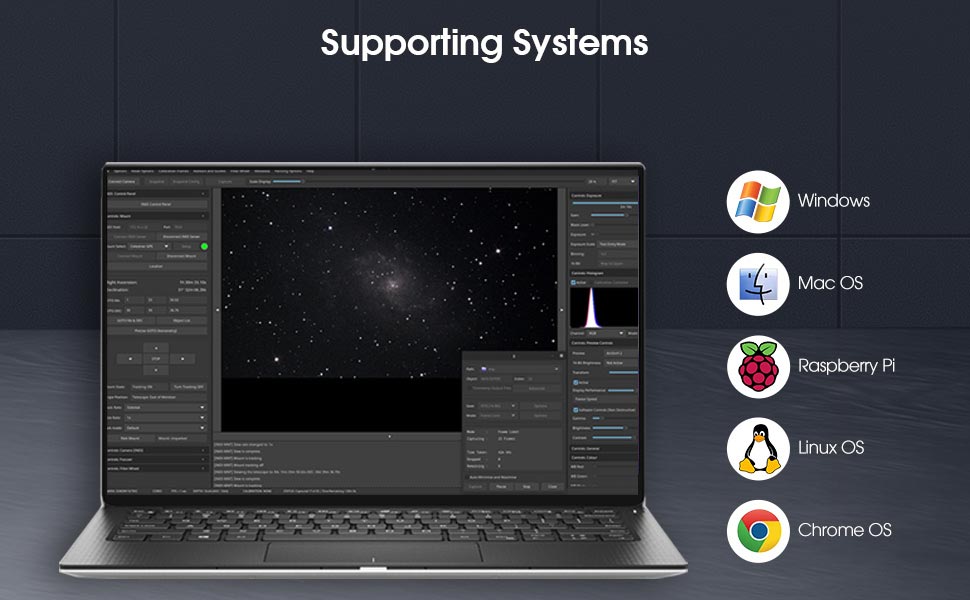

Supporting Systems

All software and drivers for this camera are available from the SVBONY website.

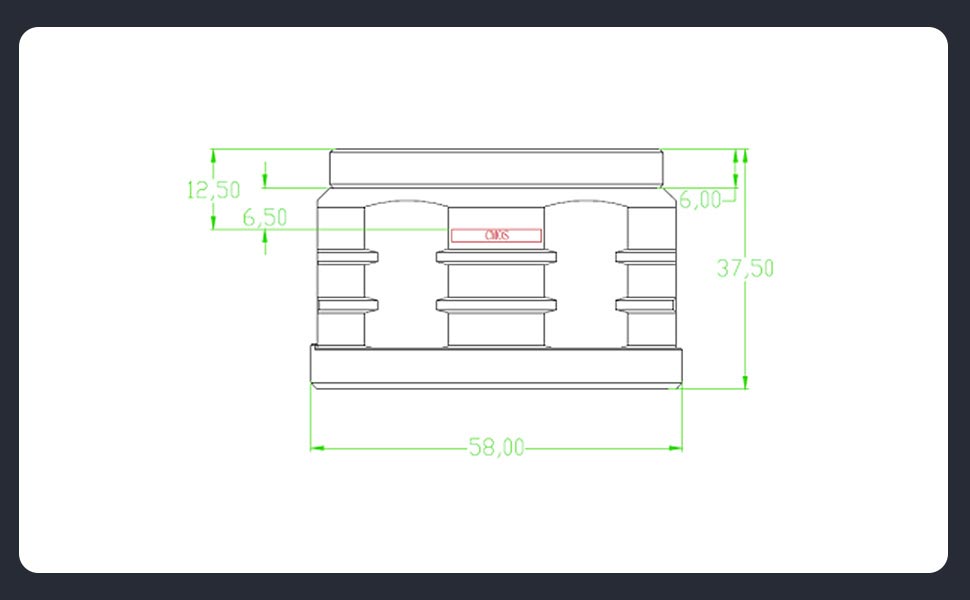

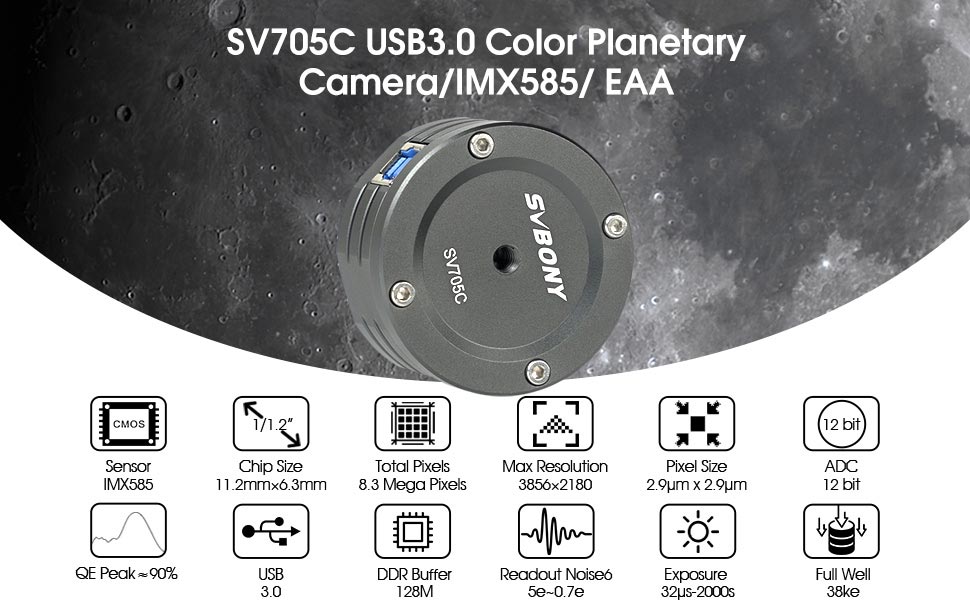

Specifications

NOTES:

Computer configuration requirements:

• The configuration of desktop computer is not less than Intel 4 generation i5, and the memory is not less than 4G.
• Laptop configuration is not less than Intel 6 generation i5, memory is not less than 8g.

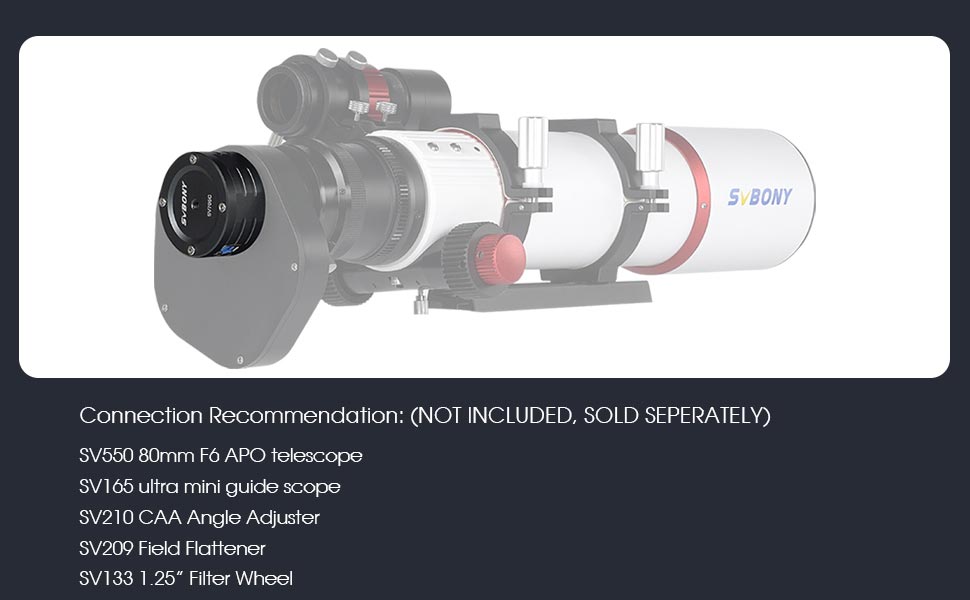

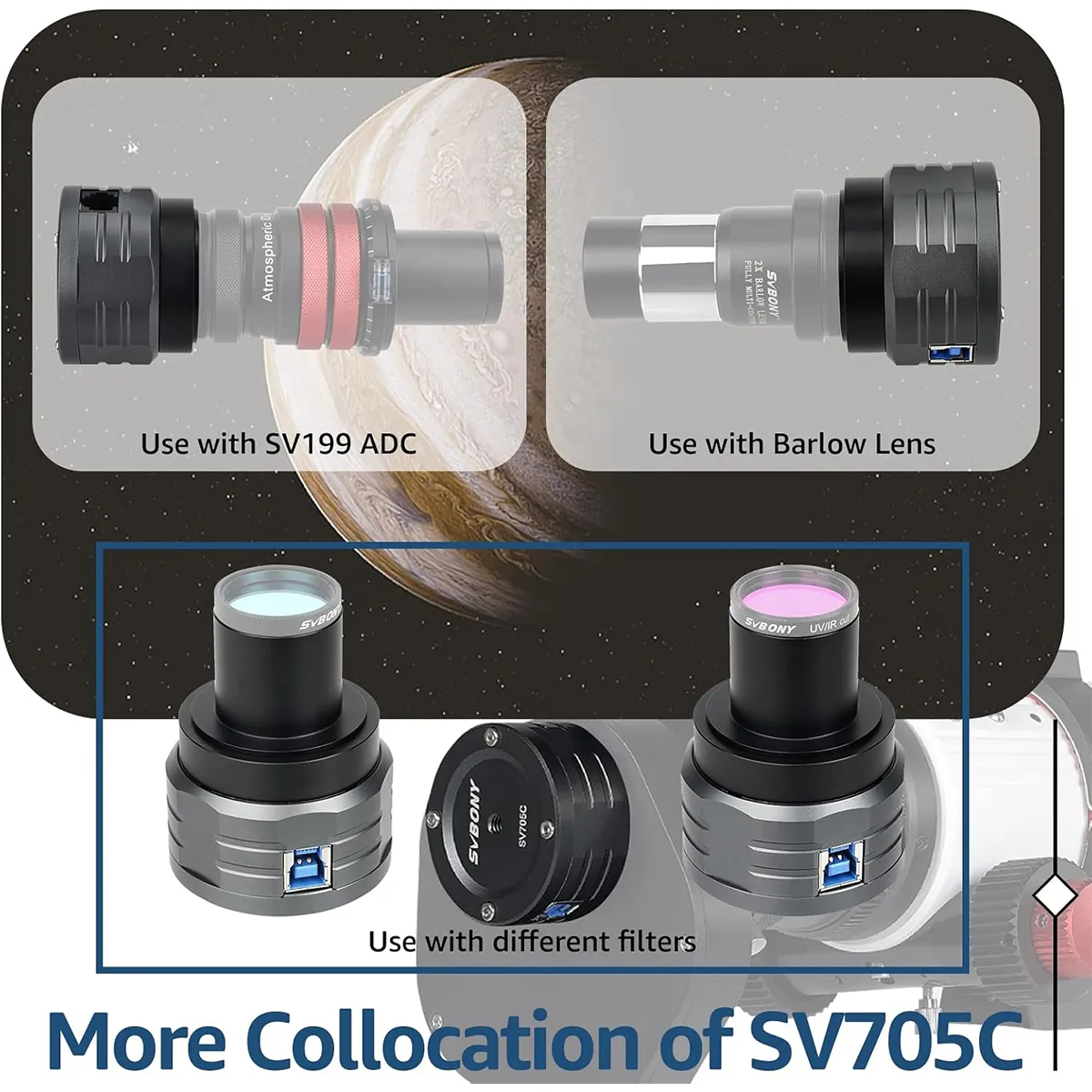

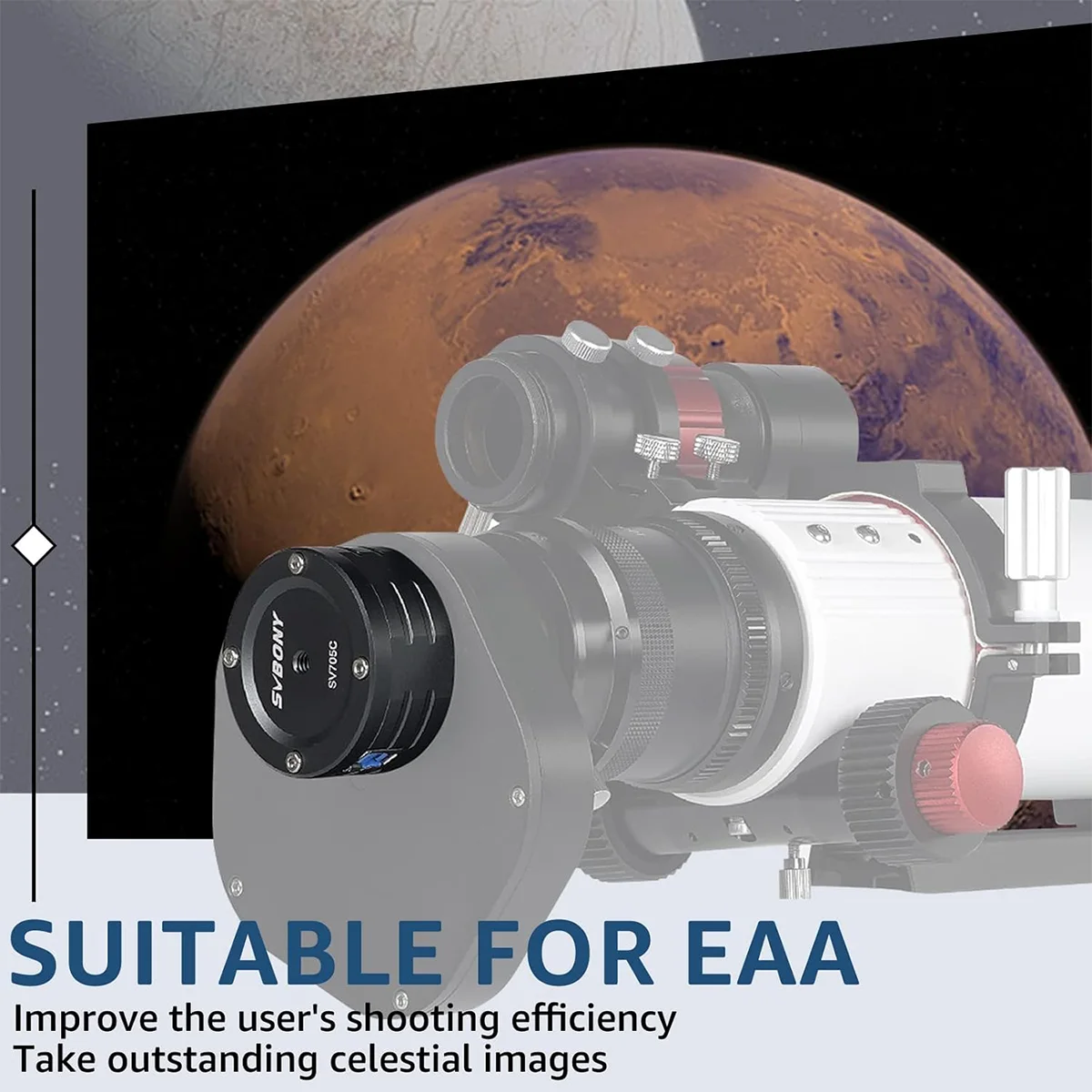

• The SV705C camera is best used with a refractor or reflector telescope mounted on an equatorial mount that can accurately track the motion of the sky.  It is not intended for taking images through the eyepiece of a telescope. You may also require additional accessories and filters to get the best results.

• If you want to use the SV705C camera capture images through telescope eyepiece. You need buy an eyepiece projection adapter.
• All software and drivers for this camera are available from the SVBONY website.

Customer Real Shot:

Messier 51: The Whirlpool Galaxy

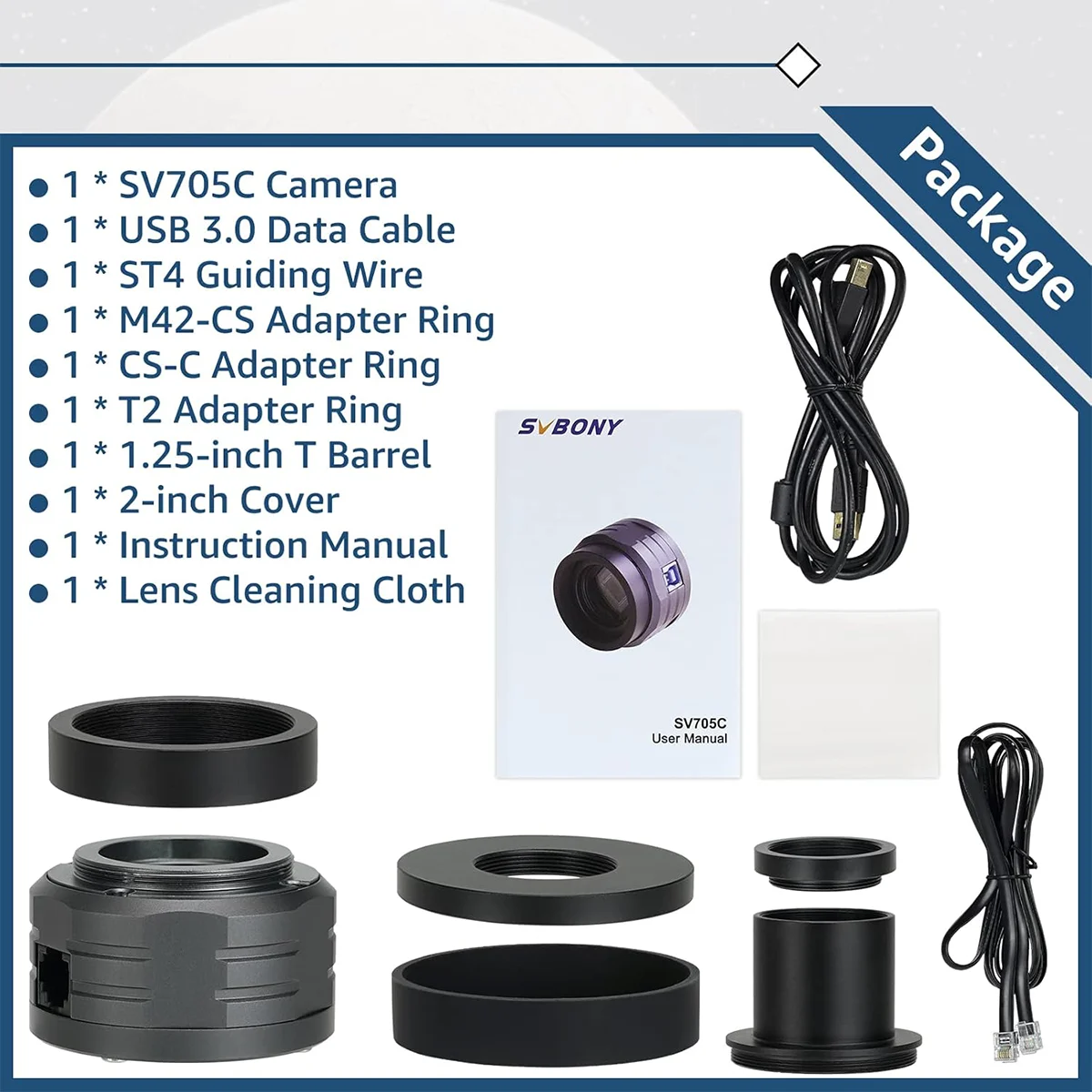

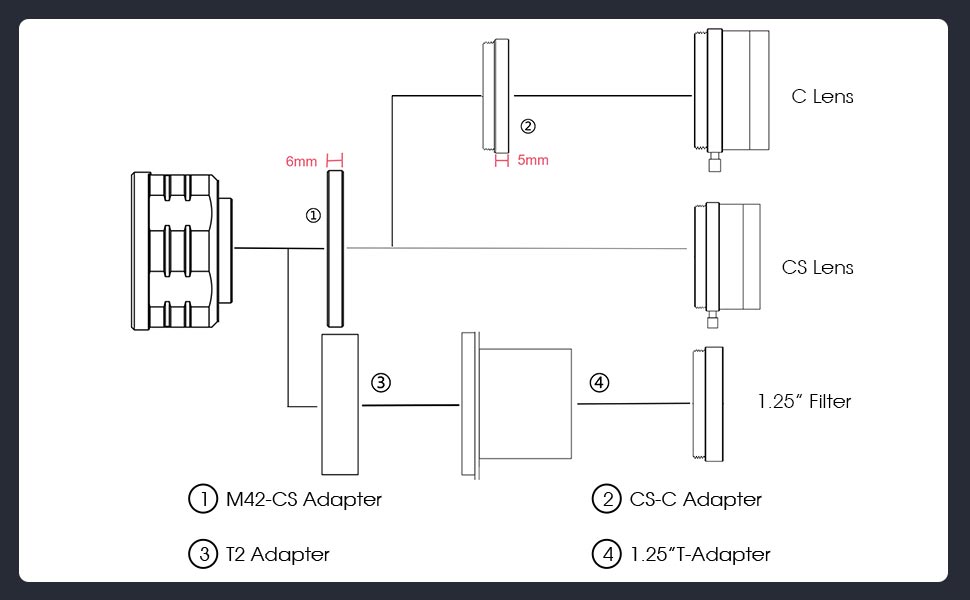

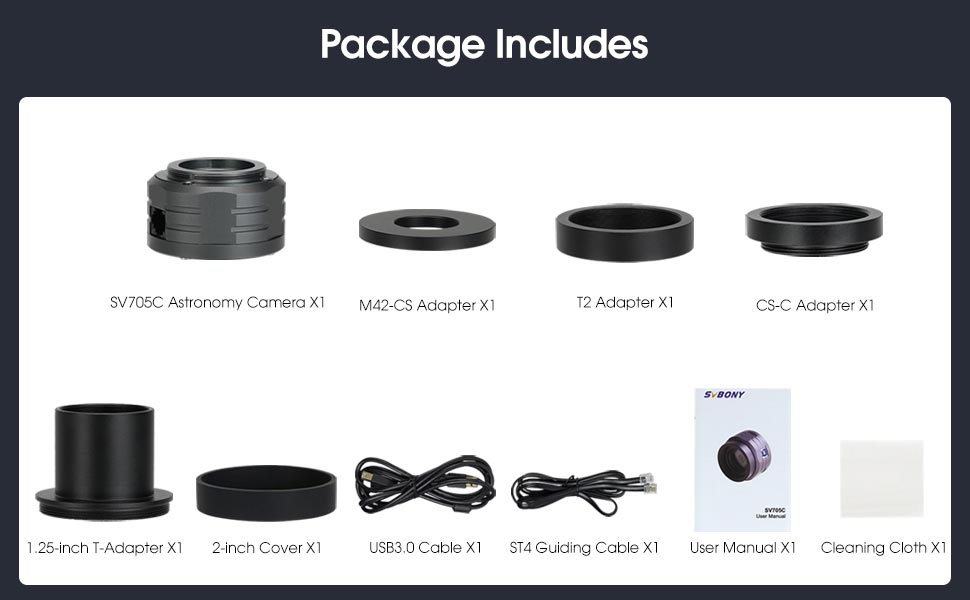

Package Includes:

• 1 * Svbony SV705C Planetary Camera
• 1 * USB 3.0 Cable
• 1 * ST4 Guiding Cable

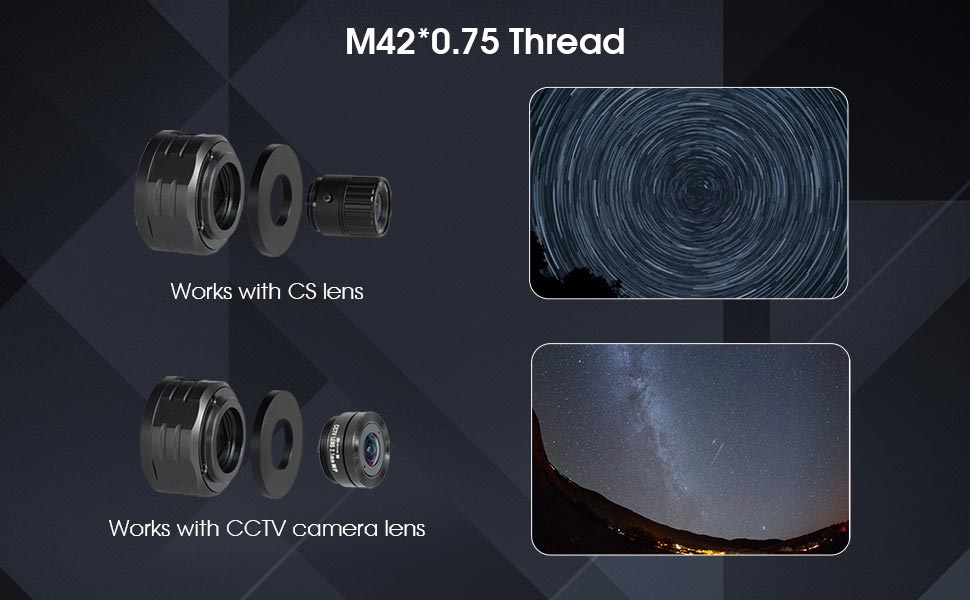

• 1 * M42-CS Adapter Tube
• 1 * T2 Adapter
• 1 * 1.25” T-Adapter
• 1 * 2” Dust Cover
• 1 * User Manual
• 1 * Cleaning Cloth

Instruction Manual

INSTRUCTION MANUAL_SV705C
