Svbony SV205 Electronic Camera IMX415 for Telescope Astrophotography 8MP USB3.0

SV205 8MP USB3.0 Electronic Eyepiece Camera 1.25”  For Astronomy Photography

SV205 is a primary planetary camera, ideal for photographing the Moon, Jupiter, Saturn and binary stars.  It is also suitable for observing some bright deep space objects.

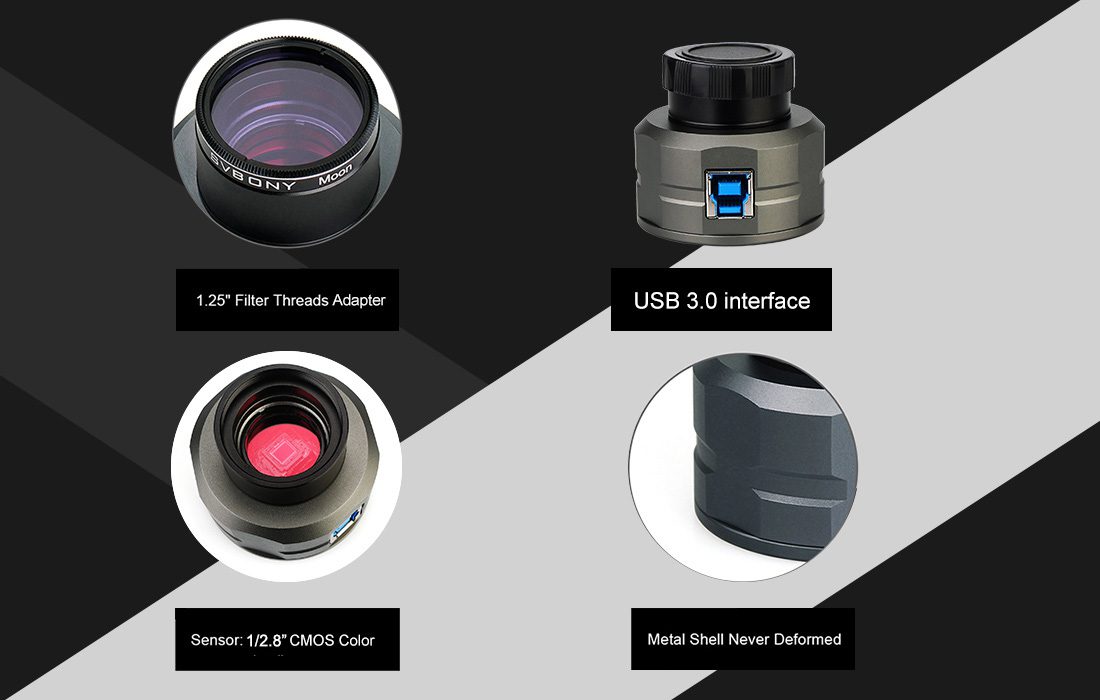

1/2.8”COMS Sensor

The iteratived SV205 with IMX415 sensor, which is 8.29 Mega Pixels with a resolution 3840x 2160 under ideal conditions. In order to fixing the Pixel Vignetting color issue on the original version SV205 camera, we cut the new one out of some pixels, the parameter will be 7.05MP with 3264×2160, pixel size is adjusted to 1.45µmx1.45µm.

This newly developed IMX415 stacked CMOS image sensor uses Sony’s unique high-sensitivity, low-noise technology to reduce the pixel size to 1.45 square microns, approximately 80% smaller than the previous generation IMX274, creating a record-breaking 1/2.8-inch stacked 4K CMOS image sensor and with excellent low-light performance.

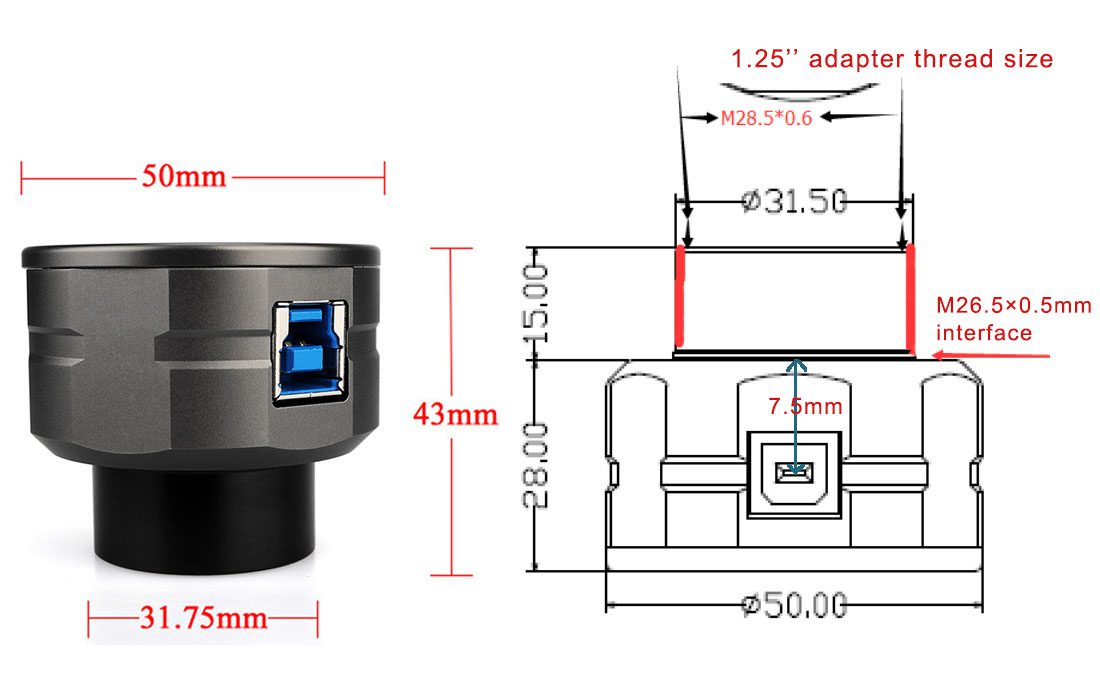

Camera Interface

Machined aluminum 1.25″ adapter barrel,the thread can be connected to any telescope.

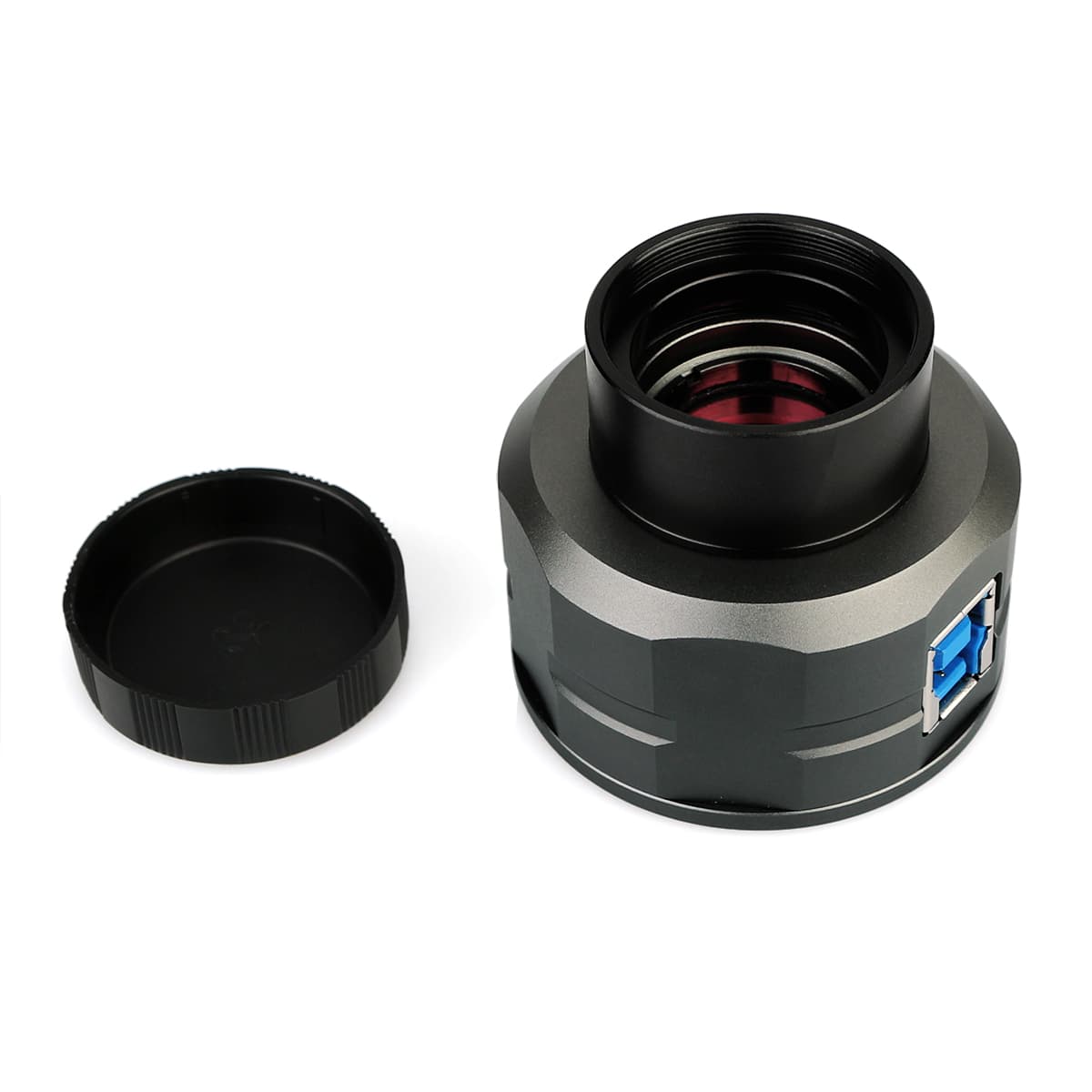

Detachable Protective Window glass

The camera comes with built-in UV IR cut filter. And it is screw on inside the camera nose. which reach a high transmittance of more than 96% in the visible light range of 400-700nm. When imaging celestial images in the visible light range, a balanced color can be obtained. You can remove the protective glass at the front of the camera if you want to image infrared or ultraviolet bands, connect it with a 1.25-inch extension tube, and connect IR685, IR850 or UV-Venus filter to achieve different imaging experiences.

NOTE

1.Computer configuration requirements:

• The configuration of desktop computer is not less than Intel 4 generation i5, and the memory is not less than 4G.
• Laptop configuration is not less than Intel 6 generation i5, memory is not less than 8g.

2. The SV205 camera is best used with a refractor or reflector telescope.  It is not recommend for taking images through the eyepiece of a telescope.

You may also require additional accessories and filters to get the best results. You need to buy an eyepiece projection adapter if would like to use the SV205 camera to capture images through telescope eyepiece.



Specifications

Model	SV205
Color Camera	Yes
Image Sensor	1/2.8” COMS Sensor
Sensor Model	SONY IMX415
Image Resolution	7.05 Mega Pixels (3264*2160)
USB Type	USB 3.0
Pixel Size	1.45μm X 1.45μm
Shutter	Electronic Rolling Shutter
Exposure Time	15ms-1000ms
Gain	0-120
Maximum Frame Rate(YUY2)	30fps  MJPG 1920*1080
	15fps  YUY2 3264*2160
ADC	10 bit
Filter	IR Cut Filter
Interface Type	Standard UVC protocol

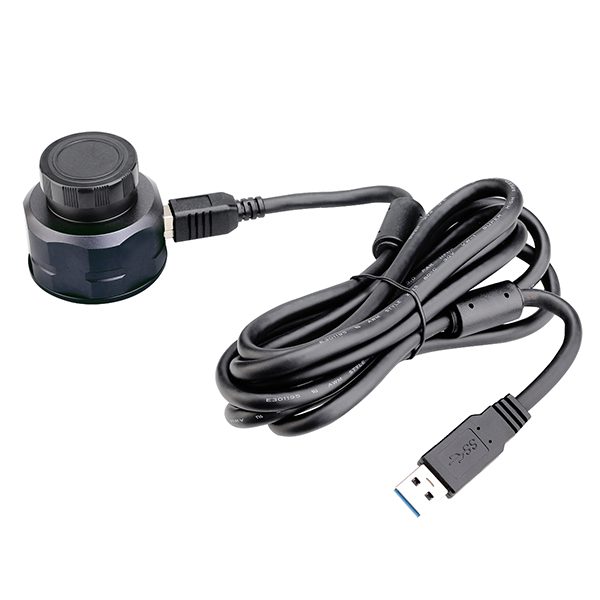

Cable Length	1.8m
Weight	100g
Support System	Windows, Linux, Android, Raspberry Pi OS
Support Telescope	Telescope with 1.25 inch diagonal base hole
Power Consumption	230MA@5V
Cable Length	1.8m
Working Humidity	30%-80%
Storage Humidity	20%-90%
Operating Temperature	0℃ to +50℃
Storage Temperature	-10℃ to +60℃
