Specification

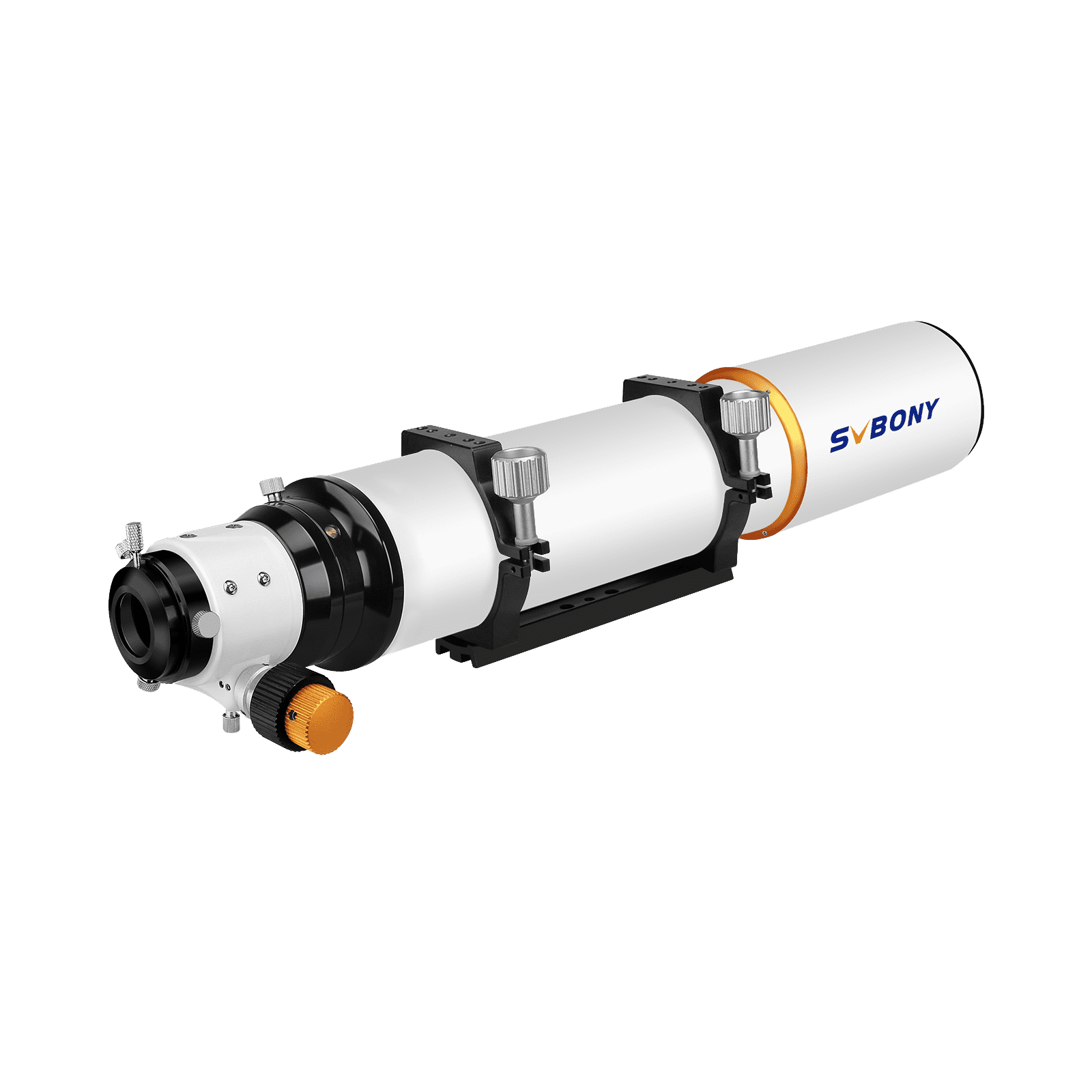

- Model Name: SVBONY SV503 102F7 ED Astronomy Telescope
- Type: Refractor
- ED Glass: S-FPL51
- Coating: SMC
- Aperture: 102mm / 4.01-Inch
- Focal length: 714mm
- Focal Ratio: f/7

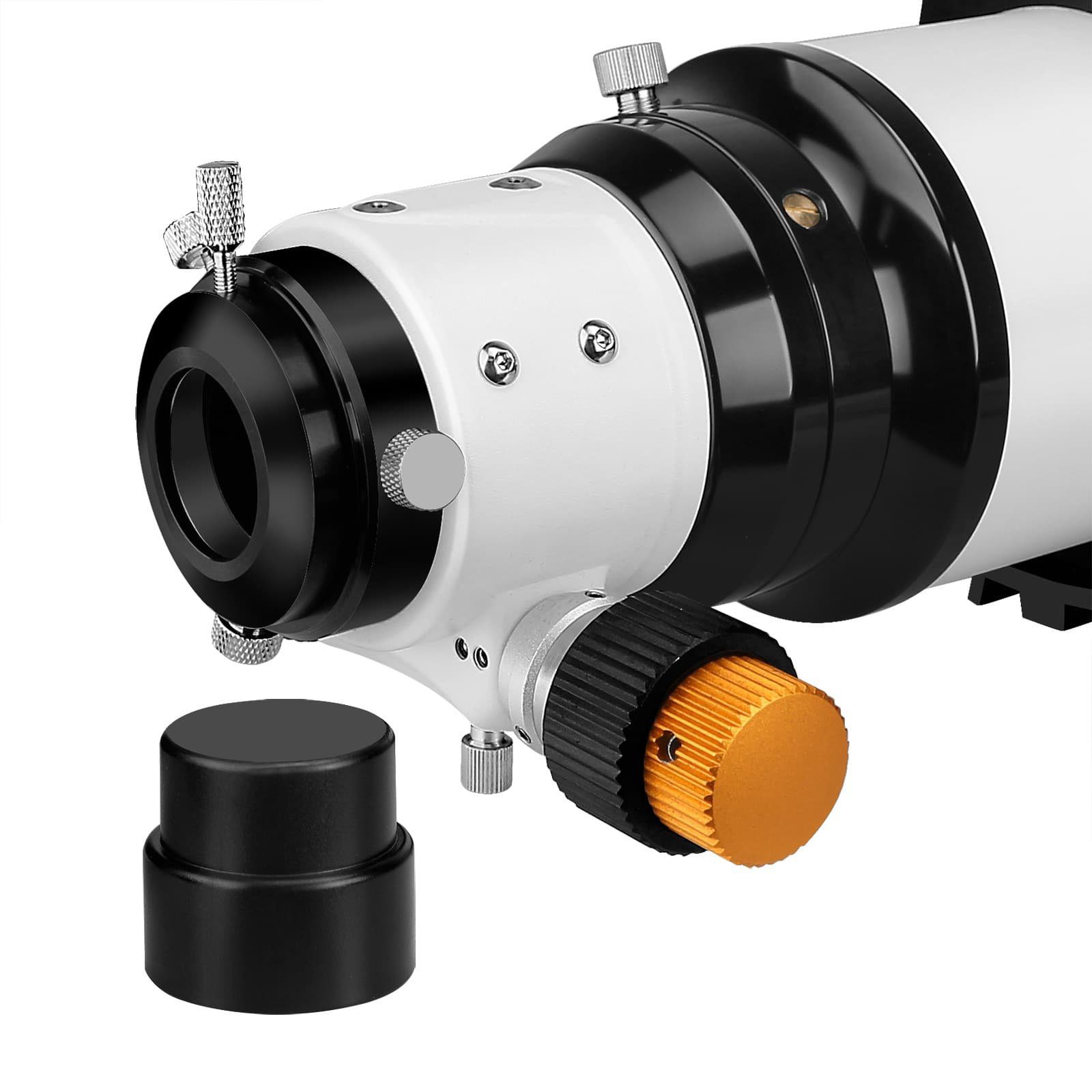

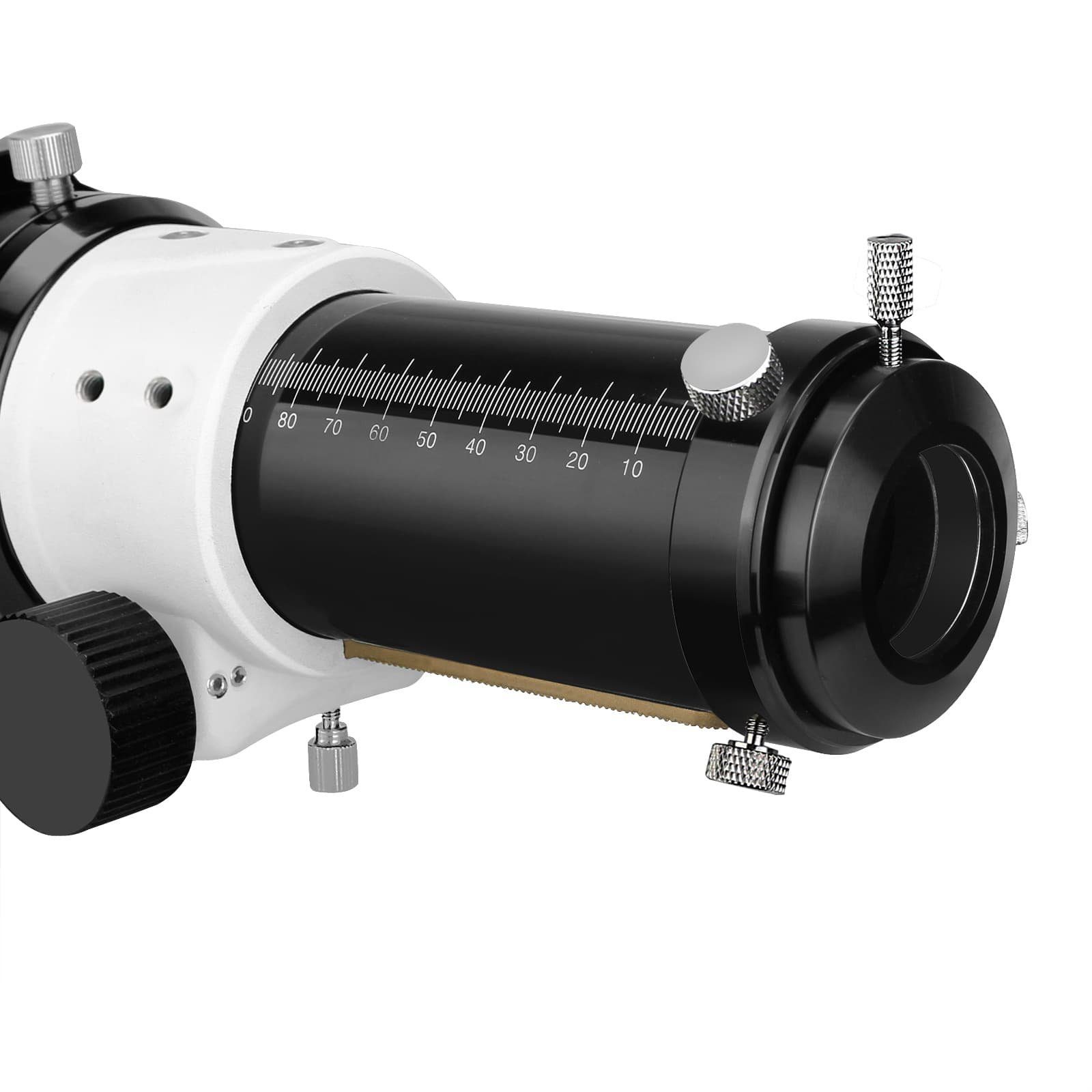

- Type of Focuser: RAP (Rack and Pinion)
- Gear Reduction: 1:10 Fine movement
- Resolving capacity: 1.17″
- Limit value: 12.1
- Light gathering capacity: 212x
- Max. Useful magnification: 204x
- Tube weight（with rings): 5.5kg
- Tube outer diameter: 121mm
- Tube material: Aluminum
- Back Focus Length: 101.9mm
- OTA Length: 630mm

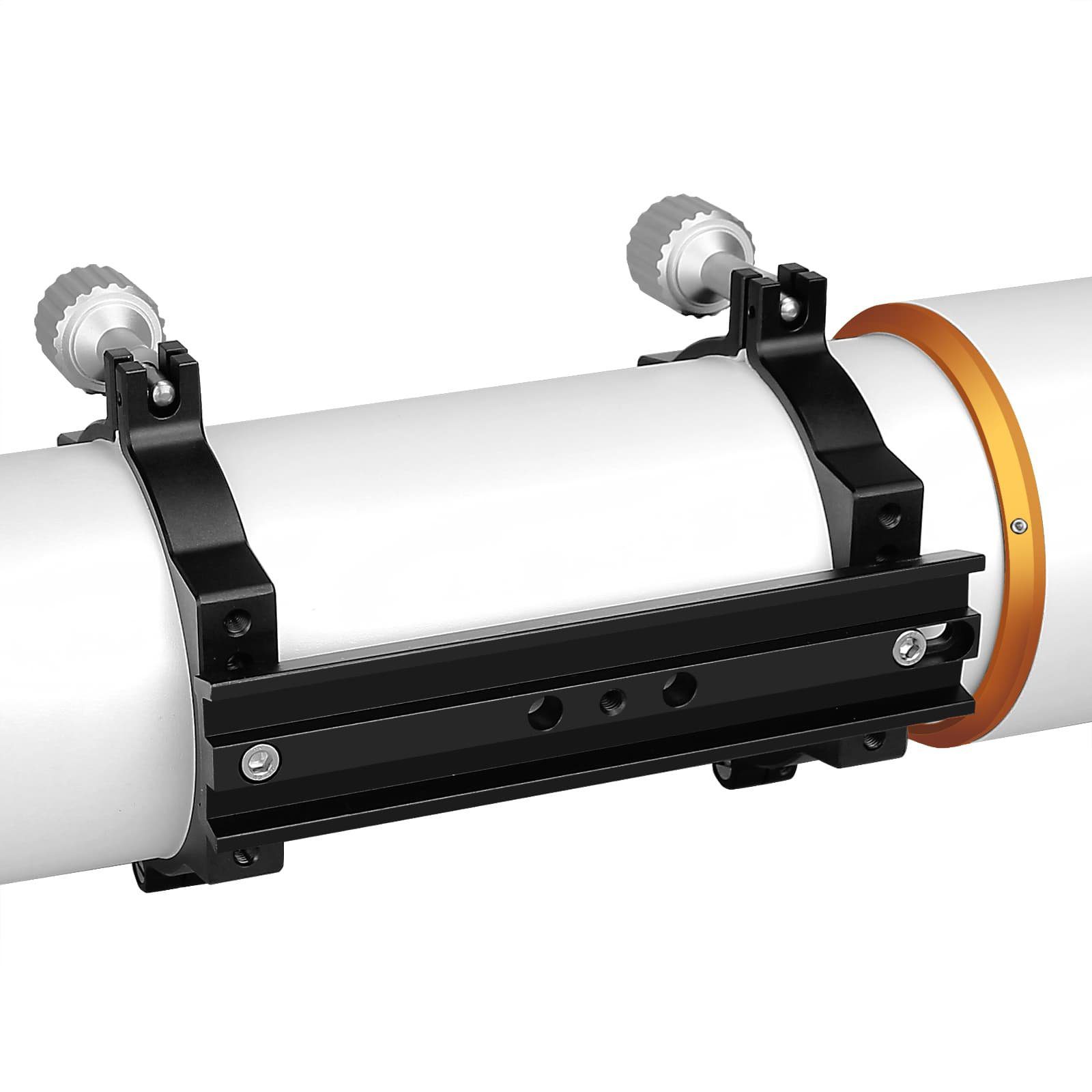

- Dovetail & Ring: Yes
- Dovetail Length: 200mm
Solar Warning
- Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result.
- Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
- Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present
Recommended Accessories
- 1.25″ 2X Achromatic Barlow – To get double magnification while observing your favorite objects. Mostly important for Lunar and Planetary observations & Photography.
- Additional Eyepiece – Eyepieces serve as our arsenal, offering different magnifications for celestial objects. Higher magnification is ideal for detailed planetary viewing, while lower magnification and wide-angle eyepieces are suitable for capturing the vastness of deep sky objects. With a diverse collection of eyepieces, we can customize our observations for an immersive stargazing experience.
- Eyepiece Filters – Colored filters can be an invaluable aid in lunar and planetary observing. They reduce glare and light scatter
- ring, increase contrast through selective filtration, increase definition and resolution, reduce irradiation and lessen eye fatigue.
- T-Ring (Canon) – To capture photos with your Canon EOS DSLR using Telescope tube as high focal length lens for camera.
- T-Ring (Nikon) – To capture photos with your NIKON DSLR using Telescope tube as high focal length lens for camera.
- T-Ring (Sony) – To capture photos with your Sony DSLR using Telescope tube as high focal length lens for camera.
- 1.25″ T-Mount/Adapter – To attach any DSLR directly in the eyepiece barrel when using in combination with DSLR T-Ring.
- Customized Telescope Padded bag – Designed to keep your Telescope safe from sudden damages to optics and body, safe of dust and dirt, easy carrying solution.
